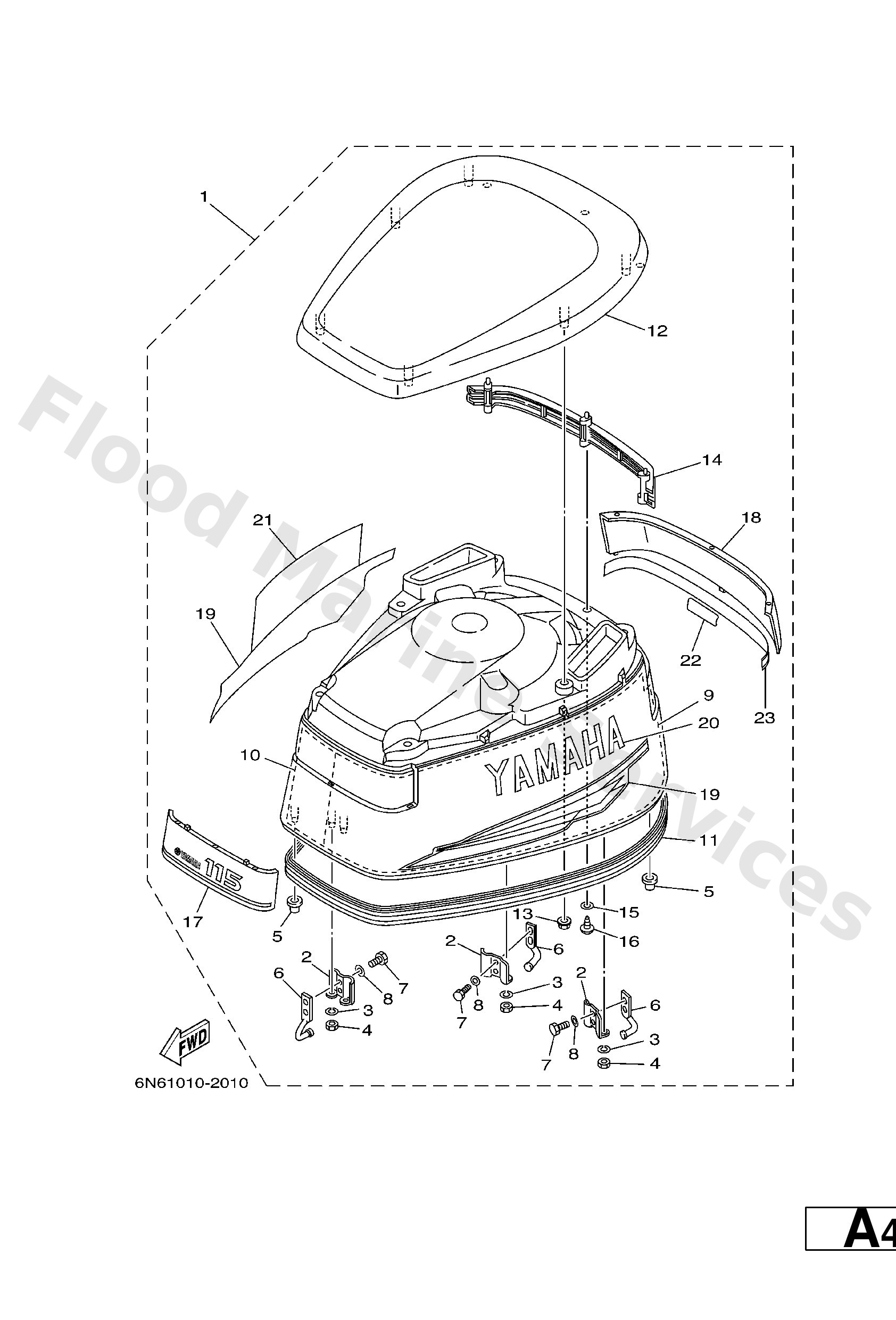

Diagram: TOP COWLING

Diagram

Parts List

6N742610604D
Top Cowling assembly
Diagram Reference: 1
Get Part
6N642610604D
Top Cowling assembly
Diagram Reference: 1
Get Part
6R34264700
Holder, clamp band
Diagram Reference: 2
Get Part
9299006100
Washer(6a1)
Diagram Reference: 3
Get Part
9538006600
Nut(661)
Diagram Reference: 4
Get Part
6R34266200
Damper
Diagram Reference: 5
Get Part
6R34281400
Hook, clamp
Diagram Reference: 6
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 7
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 8
Get Part
6N74261900
Damper, form
Diagram Reference: 9
Get Part
6N74262700
Damper, form
Diagram Reference: 10
Get Part
6R34261501
Seal
Diagram Reference: 11
Get Part
6N742613004D
Molding, air duct
Diagram Reference: 12
Get Part
9017906M24
Nut(6j8)
Diagram Reference: 13
Get Part
6N74263600
Louver, 2
Diagram Reference: 14
Get Part
9299004600
Washer, plain (646)
Diagram Reference: 15
Get Part
9778040520
Ybs83-420 screw,panh,tapping
Diagram Reference: 16
Get Part
6N64268640
Emblem, front
Diagram Reference: 17
Get Part
6N74268640
Emblem, front
Diagram Reference: 17
Get Part
6N64268730
Emblem, rear
Diagram Reference: 18
Get Part
6N74268730
Emblem, rear
Diagram Reference: 18
Get Part
6N7W007030
Graphic Set
Diagram Reference: 19
Get Part
6N74268130
Mark, Cowling
Diagram Reference: 20
Get Part
6N74268230
Mark, Cowling
Diagram Reference: 21
Get Part
6N74267830
Graphic, Rear
Diagram Reference: 22
Get Part
6N74267A30
Graphic, Rear 2
Diagram Reference: 23
