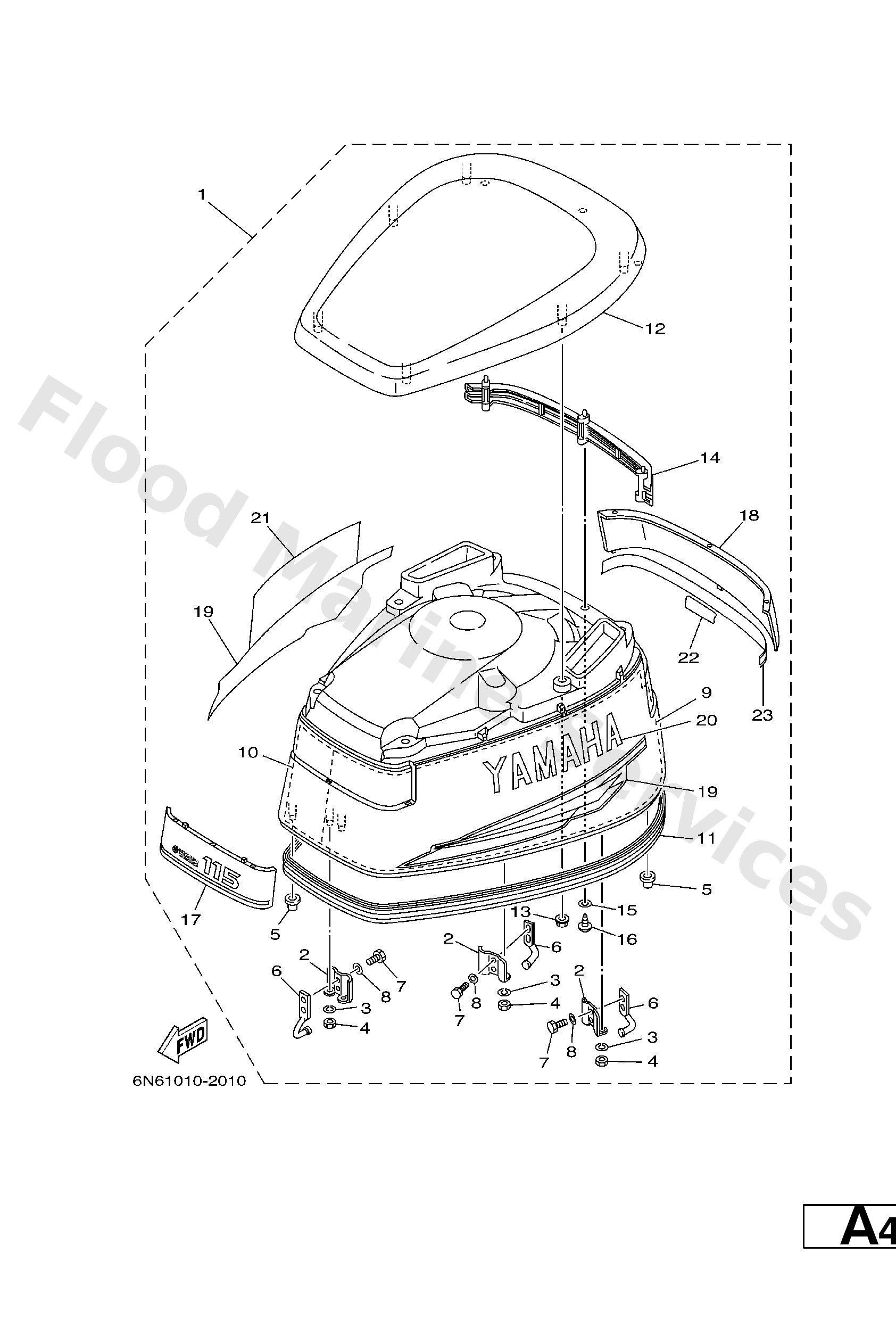

Diagram: TOP COWLING

Diagram

Parts List

6N7−42610−60−4D
Top Cowling assembly
Diagram Reference: 1
Get Part
6N6−42610−60−4D
Top Cowling assembly
Diagram Reference: 1
Get Part
6R3−42647−00
Holder, clamp band
Diagram Reference: 2
Get Part
92990−06100
Washer(6a1)
Diagram Reference: 3
Get Part
95380−06600
Nut(661)
Diagram Reference: 4
Get Part
6R3−42662−00
Damper
Diagram Reference: 5
Get Part
6R3−42814−00
Hook, clamp
Diagram Reference: 6
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 7
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 8
Get Part
6N7−42619−00
Damper, form
Diagram Reference: 9
Get Part
6N7−42627−00
Damper, form
Diagram Reference: 10
Get Part
6R3−42615−01
Seal
Diagram Reference: 11
Get Part
6N7−42613−00−4D
Molding, air duct
Diagram Reference: 12
Get Part
90179−06M24
Nut(6j8)
Diagram Reference: 13
Get Part
6N7−42636−00
Louver, 2
Diagram Reference: 14
Get Part
92990−04600
Washer, plain (646)
Diagram Reference: 15
Get Part
97780−40520
Ybs83-420 screw,panh,tapping
Diagram Reference: 16
Get Part
6N6−42686−40
Emblem, front
Diagram Reference: 17
Get Part
6N7−42686−40
Emblem, front
Diagram Reference: 17
Get Part
6N6−42687−30
Emblem, rear
Diagram Reference: 18
Get Part
6N7−42687−30
Emblem, rear
Diagram Reference: 18
Get Part
6N7−W0070−30
1−
Diagram Reference: 19
Get Part
6N7−42681−30
Mark, Cowling
Diagram Reference: 20
Get Part
6N7−42682−30
Mark, Cowling
Diagram Reference: 21
Get Part
6N7−42678−30
Graphic, Rear
Diagram Reference: 22
Get Part
6N7−4267A−30
Graphic, Rear 2
Diagram Reference: 23
