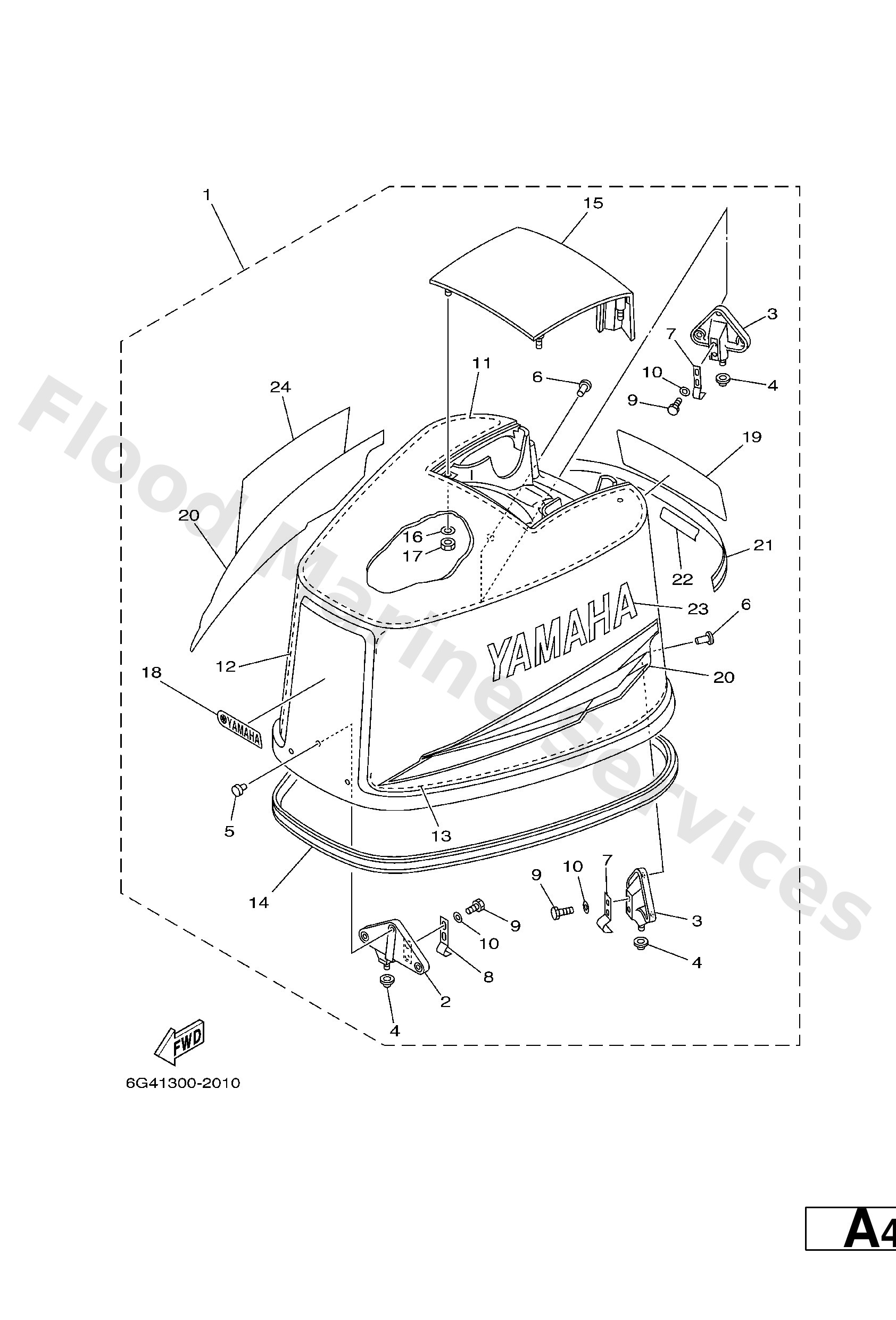

Diagram: TOP COWLING

Diagram

Parts List

6634266200
Damper
Diagram Reference: 4
Get Part
9026606009
Rivet (697)
Diagram Reference: 5
Get Part
9026606M02
Rivet (697)
Diagram Reference: 6
Get Part
6E54265200
Hook 2
Diagram Reference: 7
Get Part
6884265200
Hook 2
Diagram Reference: 8
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
6E54261700
Damper 1
Diagram Reference: 11
Get Part
6G54261900 (STARBORD SIDE)
Damper (400x1000)
Diagram Reference: 12
Get Part
6G54262700 (PORT SIDE)
Damper (400x1000)
Diagram Reference: 13
Get Part
6E54261500
Seal
Diagram Reference: 14
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 16
Get Part
9538006600
Nut(661)
Diagram Reference: 17
Get Part
68842677D0
Graphic, front
Diagram Reference: 18
Get Part
6G44267831
Graphic, rear
Diagram Reference: 19
Get Part
6G5W007031
-
Diagram Reference: 20
Get Part
6G54267A31
Graphic, Rear 2
Diagram Reference: 21
Get Part
64D4267830
Graphic, Rear
Diagram Reference: 22
Get Part
6G54268131
Mark, cowling
Diagram Reference: 23
Get Part
6G54268231
Mark, Cowling
Diagram Reference: 24
