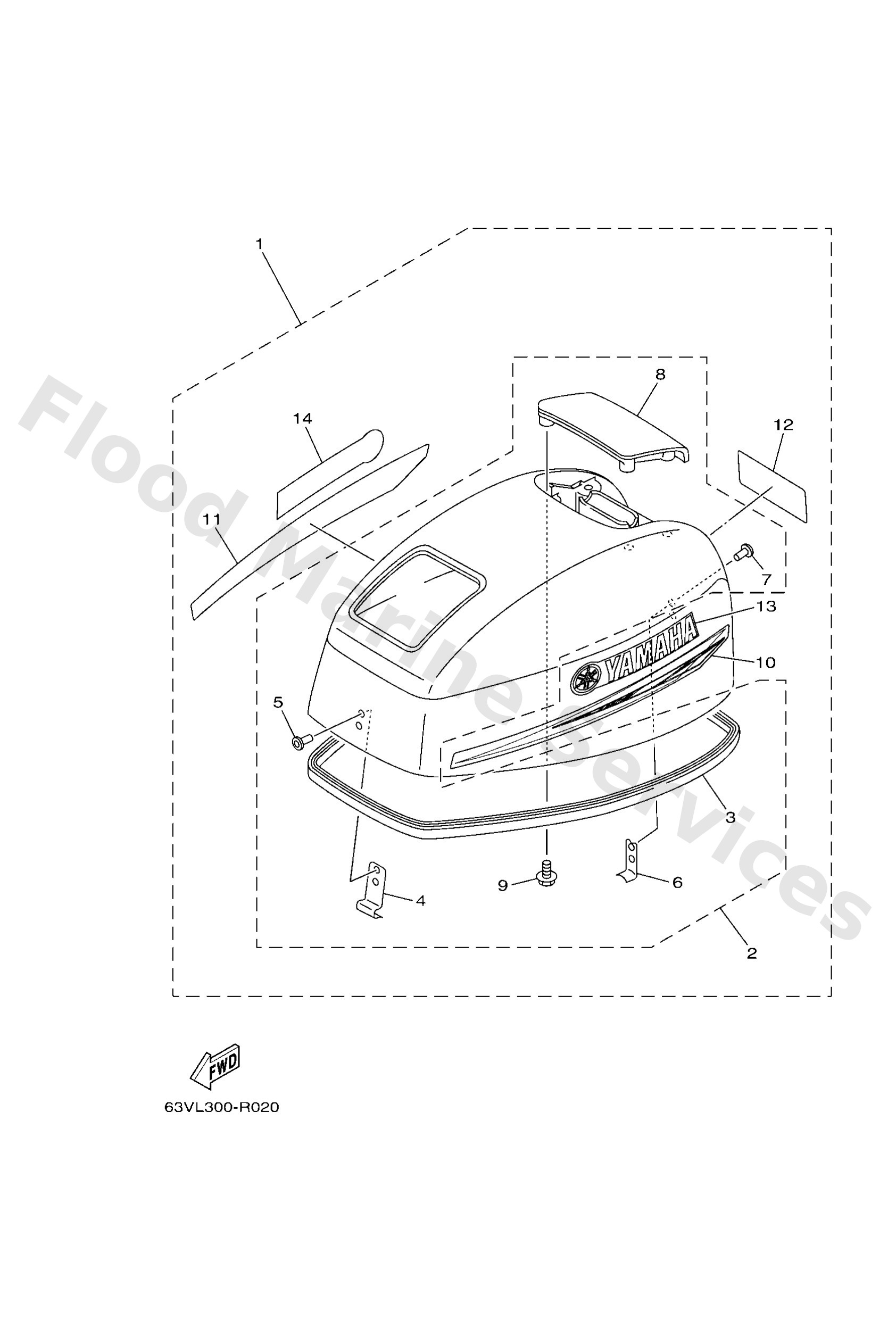

Diagram: TOP COWLING

Diagram

Parts List

63W4261003
Top cowling assembly
Diagram Reference: 1
Get Part
63V4261A01
Top cowling w/o graphics
Diagram Reference: 2
Get Part
63V4261500
Seal
Diagram Reference: 3
Get Part
6G14265102
Hook
Diagram Reference: 4
Get Part
9026604M04
Rivet(6e7)
Diagram Reference: 5
Get Part
6L24264700
Holder, clamp band
Diagram Reference: 6
Get Part
63V42613A08D
Molding, air duct
Diagram Reference: 8
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
63V4267541
Graphic, side 1
Diagram Reference: 10
Get Part
63V4267641
Graphic, side 2
Diagram Reference: 11
Get Part
63W4267840
Graphic, rear
Diagram Reference: 12
Get Part
6E04268141
Mark, cowling
Diagram Reference: 13
Get Part
