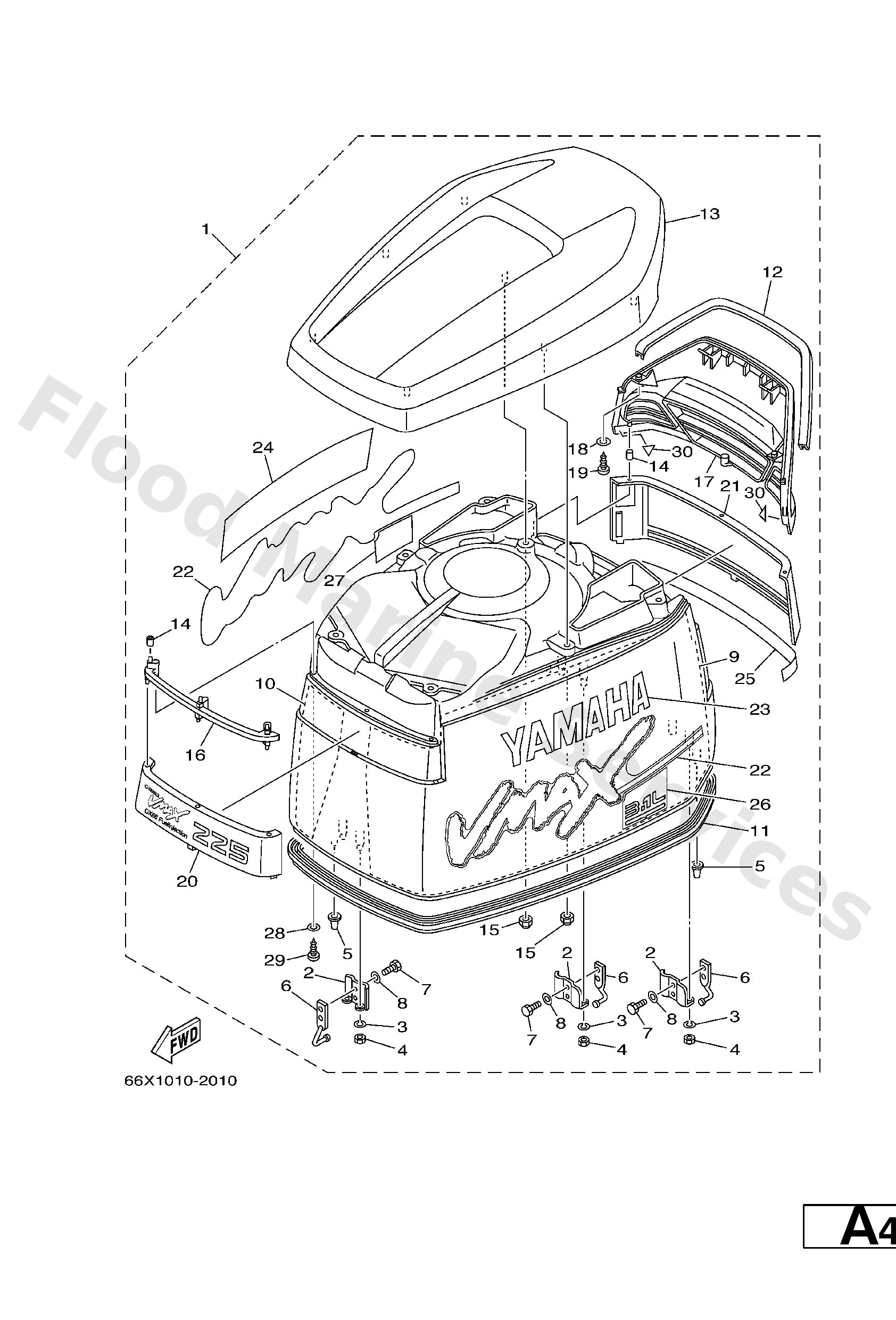

Diagram: TOP COWLING

Diagram

Parts List

6R3−42647−00

Holder, clamp band

Diagram Reference: 2

92990−06100

Washer(6a1)

Diagram Reference: 3

95380−06600

Nut(661)

Diagram Reference: 4

6R3−42662−00

Damper

Diagram Reference: 5

6R3−42814−00

Hook, clamp

Diagram Reference: 6

97095−06012

Bolt(gh1)

Diagram Reference: 7

92995−06600

Washer, plain (646)

Diagram Reference: 8

61A−42619−02

Damper, Form

Diagram Reference: 9

61A−42627−02

Damper, Form

Diagram Reference: 10

61A−42615−01

Seal

Diagram Reference: 11

66K−42662−00

Damper

Diagram Reference: 12

90385−04M05

Bush(6r2)

Diagram Reference: 14

90179−06M24

Nut(6j8)

Diagram Reference: 15

61A−42626−00

Louver, 1

Diagram Reference: 16

92990−05200

Ybs66-5 washer, plain

Diagram Reference: 18

97780−50616

Screw, pan head tapping (ak5)

Diagram Reference: 19

66K−42686−P0

Emblem, Front

Diagram Reference: 20

66K−42687−N0

Emblem, Rear

Diagram Reference: 21

66K−W0070−N0

Graphic set

Diagram Reference: 22

66K−42681−N0

Mark, cowling

Diagram Reference: 23

66K−42682−N0

Mark, Cowling

Diagram Reference: 24

66K−4267A−N0

Graphic, Rear 2

Diagram Reference: 25

66K−42683−N1

Mark, Cowling

Diagram Reference: 26

66K−42684−N1

Mark, Cowling

Diagram Reference: 27

92990−04600

Washer, plain (646)

Diagram Reference: 28

97780−40520

Ybs83-420 screw,panh,tapping

Diagram Reference: 29

66K−42628−00

Seal

Diagram Reference: 30
