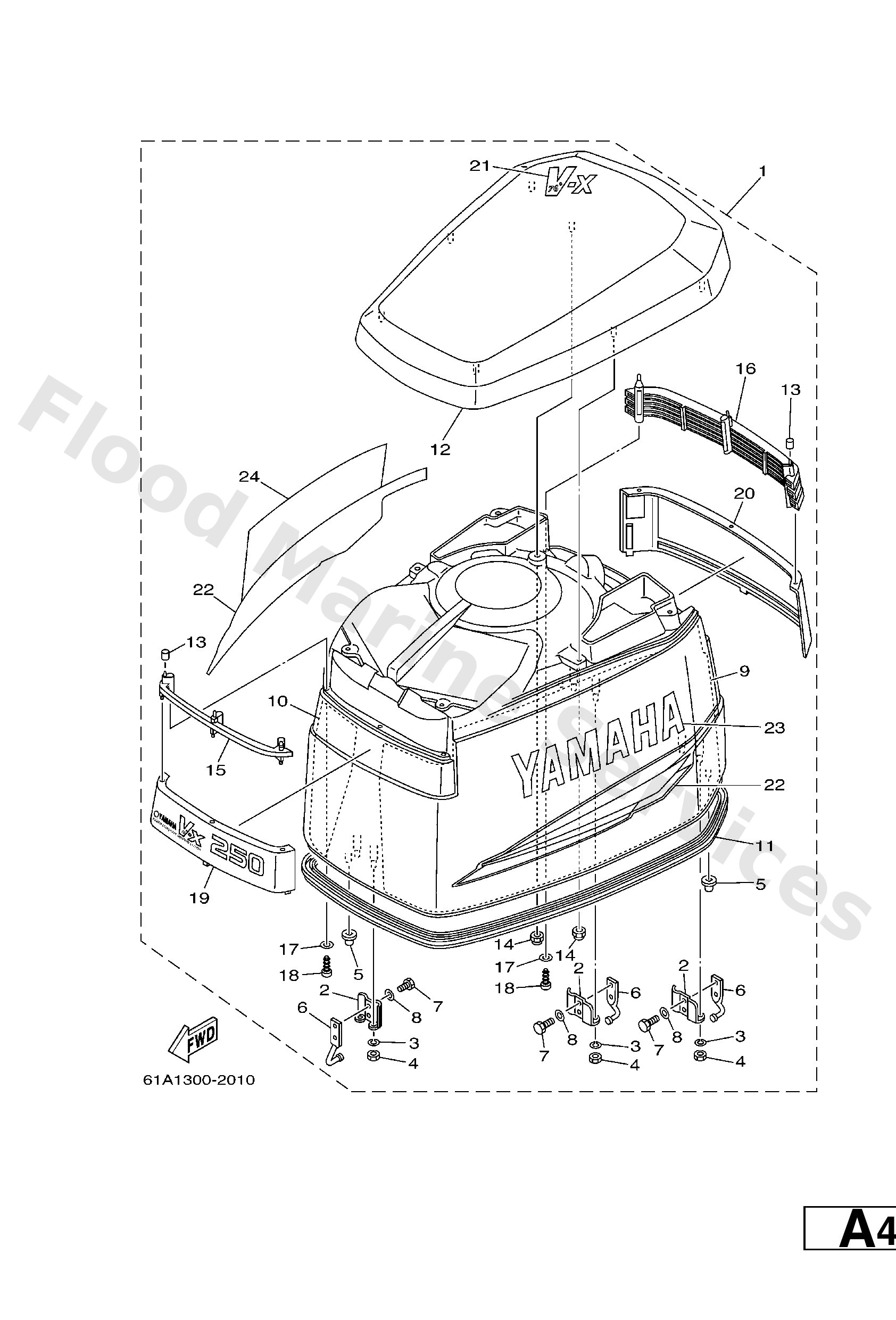

Diagram: TOP COWLING

Diagram

Parts List

61A4261050NA
Top cowling assembly
Diagram Reference: 1
Get Part
6R34264700
Holder, clamp band
Diagram Reference: 2
Get Part
9299006100
Washer(6a1)
Diagram Reference: 3
Get Part
9538006600
Nut(661)
Diagram Reference: 4
Get Part
6R34266200
Damper
Diagram Reference: 5
Get Part
6R34281400
Hook, clamp
Diagram Reference: 6
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 7
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 8
Get Part
61A4261902
Damper, Form
Diagram Reference: 9
Get Part
61A4262702
Damper, Form
Diagram Reference: 10
Get Part
61A4261501
Seal
Diagram Reference: 11
Get Part
61A42613014D
Molding, Air Duct
Diagram Reference: 12
Get Part
9038504M05
Bush(6r2)
Diagram Reference: 13
Get Part
9017906M24
Nut(6j8)
Diagram Reference: 14
Get Part
61A4262600
Louver, 1
Diagram Reference: 15
Get Part
61A4263600
Louver, 2
Diagram Reference: 16
Get Part
9299004600
Washer, plain (646)
Diagram Reference: 17
Get Part
9778040520
Ybs83-420 screw,panh,tapping
Diagram Reference: 18
Get Part
61A42686B0
Emblem, Front
Diagram Reference: 19
Get Part
61A4268730
Emblem, Rear
Diagram Reference: 20
Get Part
61A42683A0
Mark, Cowling
Diagram Reference: 21
Get Part
61AW007030
Graphic Set
Diagram Reference: 22
Get Part
61A4268130
Mark, Cowling
Diagram Reference: 23
Get Part
61A4268230
Mark, Cowling
Diagram Reference: 24
Get Part
