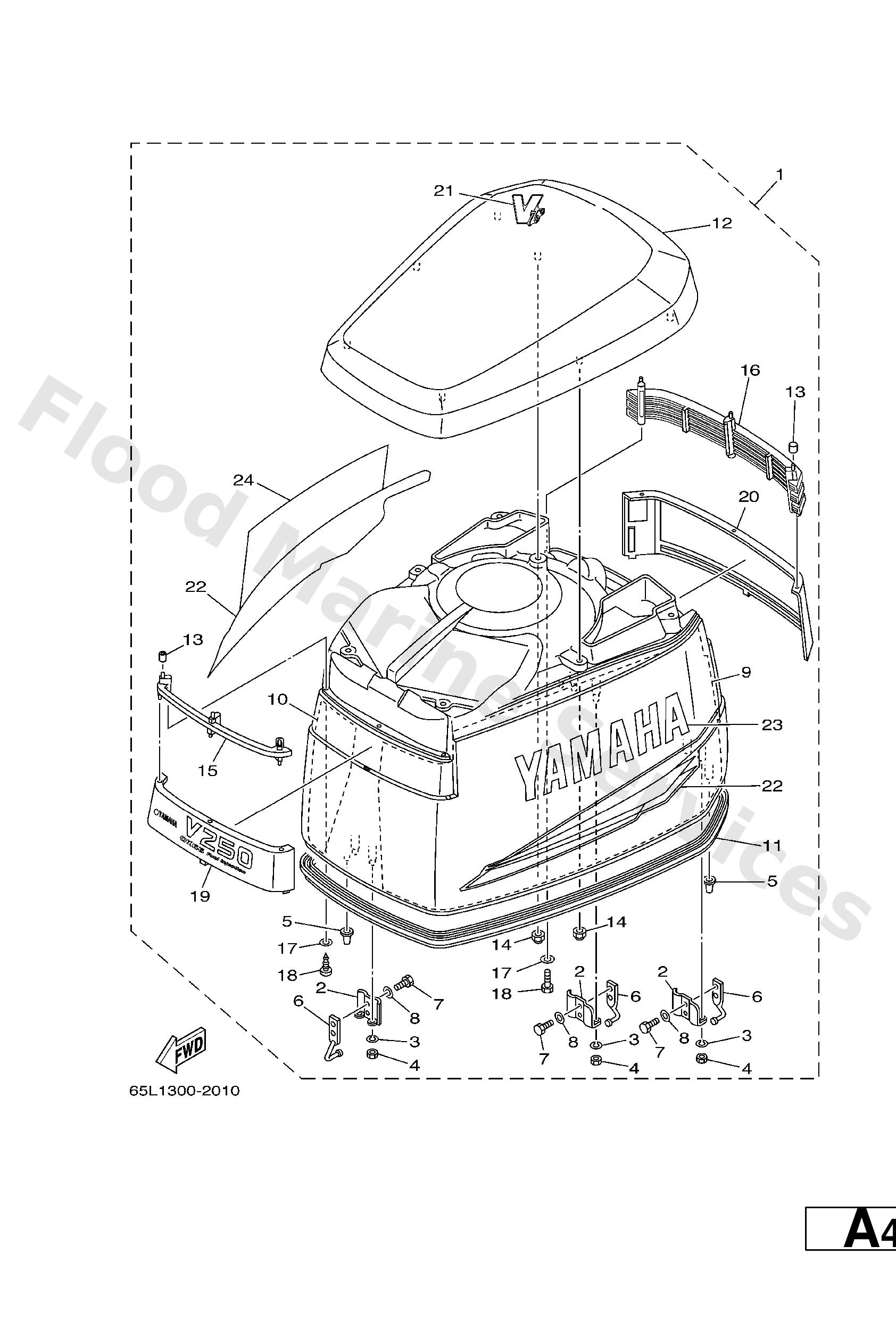

Diagram: TOP COWLING

Diagram

Parts List

65L42610404D
Top cowling assembly
Diagram Reference: 1
Get Part
6R3--42647--00
Holder, clamp band
Diagram Reference: 2
Get Part
92990--06100
Washer(6a1)
Diagram Reference: 3
Get Part
95380--06600
Nut(661)
Diagram Reference: 4
Get Part
6R3--42662--00
Damper
Diagram Reference: 5
Get Part
6R3--42814--00
Hook, clamp
Diagram Reference: 6
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 7
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 8
Get Part
61A--42619--02
Damper, Form
Diagram Reference: 9
Get Part
61A--42627--02
Damper, Form
Diagram Reference: 10
Get Part
61A--42615--01
Seal
Diagram Reference: 11
Get Part
61A42613014D
Molding, Air Duct
Diagram Reference: 12
Get Part
9038504M05
Bush(6r2)
Diagram Reference: 13
Get Part
90179--06M24
Nut(6j8)
Diagram Reference: 14
Get Part
61A--42626--00
Louver, 1
Diagram Reference: 15
Get Part
61A4263600
Louver, 2
Diagram Reference: 16
Get Part
92990--04600
Washer, plain (646)
Diagram Reference: 17
Get Part
97780--40520
Ybs83-420 screw,panh,tapping
Diagram Reference: 18
Get Part
65L4268600
Emblem, Front
Diagram Reference: 19
Get Part
65L4268731
Emblem, Rear
Diagram Reference: 20
Get Part
65L42683S0
Mark, Cowling
Diagram Reference: 21
Get Part
61AW007030
Graphic Set
Diagram Reference: 22
Get Part
61A4268130
Mark, Cowling
Diagram Reference: 23
Get Part
61A4268230
Mark, Cowling
Diagram Reference: 24
Get Part
