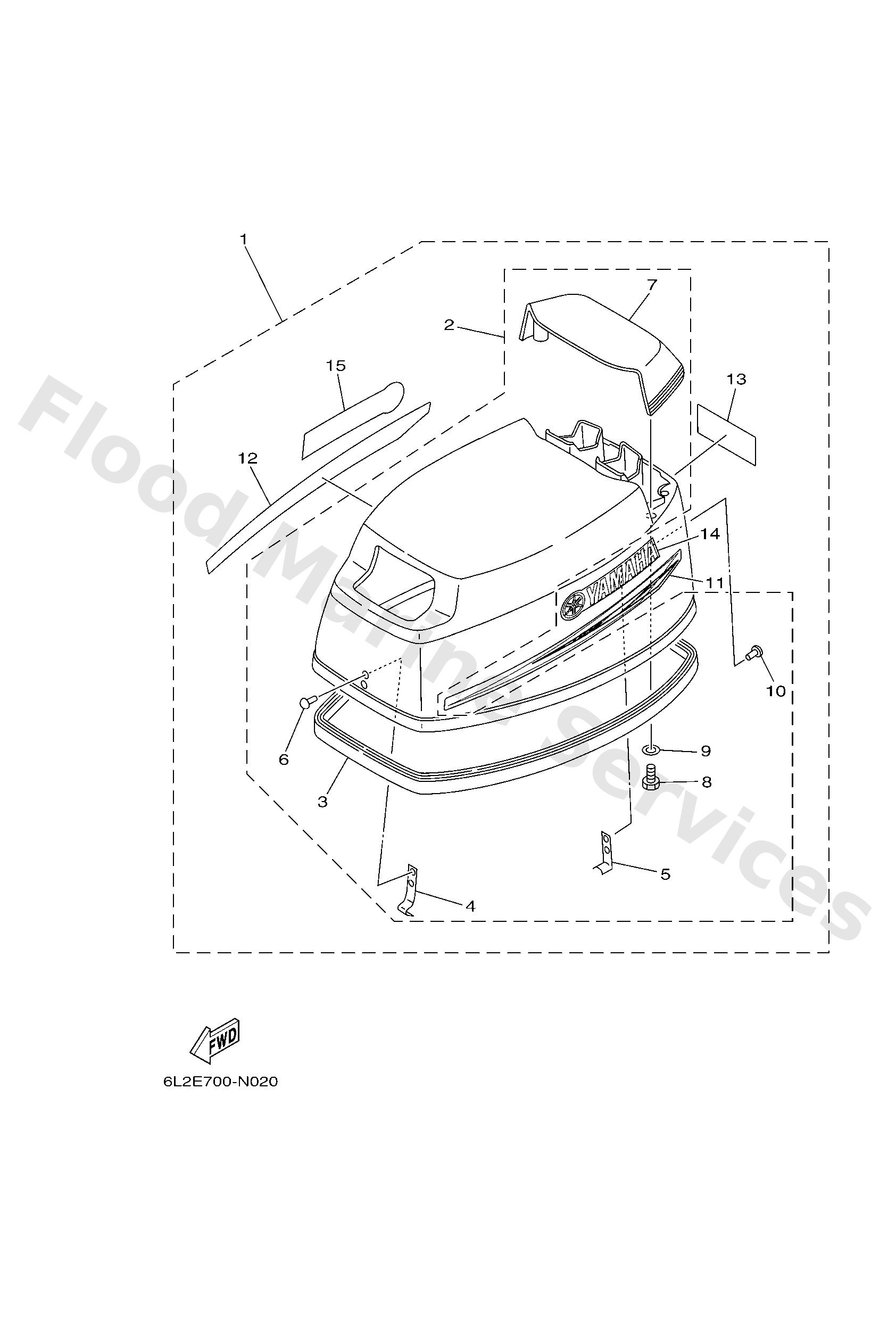

Diagram: TOP COWLING

Diagram

Parts List

6L24261001
Top cowling assembly
Diagram Reference: 1
Get Part
6L24261A00
Top cowling w/o graphics
Diagram Reference: 2
Get Part
6L24261500
Seal
Diagram Reference: 3
Get Part
6G14265171
Hook
Diagram Reference: 4
Get Part
6L24264700
Holder, clamp band
Diagram Reference: 5
Get Part
9026604M00
Rivet 2 (662)
Diagram Reference: 6
Get Part
6L242613014D
Molding, air duct
Diagram Reference: 7
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 8
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 9
Get Part
9026604M04
Rivet(6e7)
Diagram Reference: 10
Get Part
63V4267540
Graphic, side 1
Diagram Reference: 11
Get Part
63V4267640
Graphic, side 2
Diagram Reference: 12
Get Part
6L24267840
Graphic, rear
Diagram Reference: 13
Get Part
6E04268140
Mark, cowling
Diagram Reference: 14
