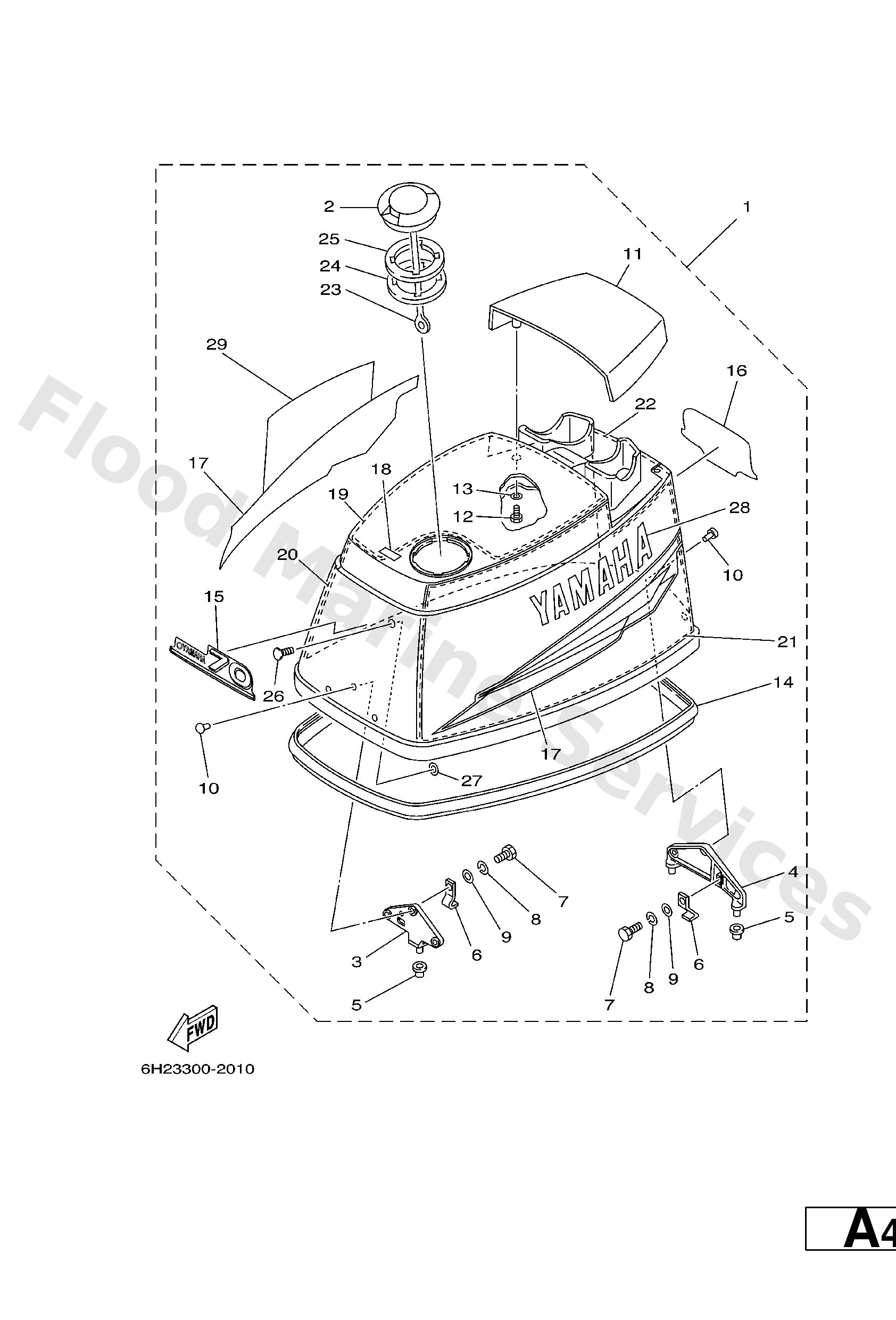

Diagram: TOP COWLING

Diagram

Parts List

6H242610804D
Top Cowling assembly
Diagram Reference: 1
Get Part
6H342610504D
Top Cowling assembly
Diagram Reference: 1
Get Part
62F42610404D
Top Cowling assembly
Diagram Reference: 1
Get Part
63D--2177H--00
Disk cap 2
Diagram Reference: 2
Get Part
6H3426470094
Holder, clamp band
Diagram Reference: 3
Get Part
6H3426490094
Holder, clamp band
Diagram Reference: 4
Get Part
663--42662--00
Damper
Diagram Reference: 5
Get Part
6H3--42652--00
Hook 2
Diagram Reference: 6
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 7
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 8
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 9
Get Part
90266--06009
Rivet (697)
Diagram Reference: 10
Get Part
6H3--42613--01--4D
M0lding air duct
Diagram Reference: 11
Get Part
6H3--42615--00
Seal
Diagram Reference: 14
Get Part
62F4267740
Graphic, front
Diagram Reference: 15
Get Part
6H34267750
Graphic, rear
Diagram Reference: 15
Get Part
6H24267750
Graphic, rear
Diagram Reference: 15
Get Part
6H34267830
Graphic, rear
Diagram Reference: 16
Get Part
6H2--42678--30
Graphic, front
Diagram Reference: 16
Get Part
62F4267830
Graphic, front
Diagram Reference: 16
Get Part
6H3--W0070--30
Graphic set
Diagram Reference: 17
Get Part
6H3--13436--00
Mark
Diagram Reference: 18
Get Part
6H31343640
Mark
Diagram Reference: 18
Get Part
6H3--42617--10
Damper, Form
Diagram Reference: 19
Get Part
6H3--42619--00
Damper (350x640)
Diagram Reference: 20
Get Part
6H3--42627--00
Damper (350x640)
Diagram Reference: 21
Get Part
6H3--42637--00
Damper, Form
Diagram Reference: 22
Get Part
6H1--42694--00
Band
Diagram Reference: 23
Get Part
6H3--21732--00
Seal 1
Diagram Reference: 24
Get Part
6H3--21735--00
Seal 2
Diagram Reference: 25
Get Part
90338--05M03
Plug (6h1)
Diagram Reference: 26
Get Part
90183--05M06
Nut, spring(6h4)
Diagram Reference: 27
Get Part
6H3--42681--30
Mark, cowling
Diagram Reference: 28
Get Part
6H3--42682--30
Mark, cowling
Diagram Reference: 29
Get Part
