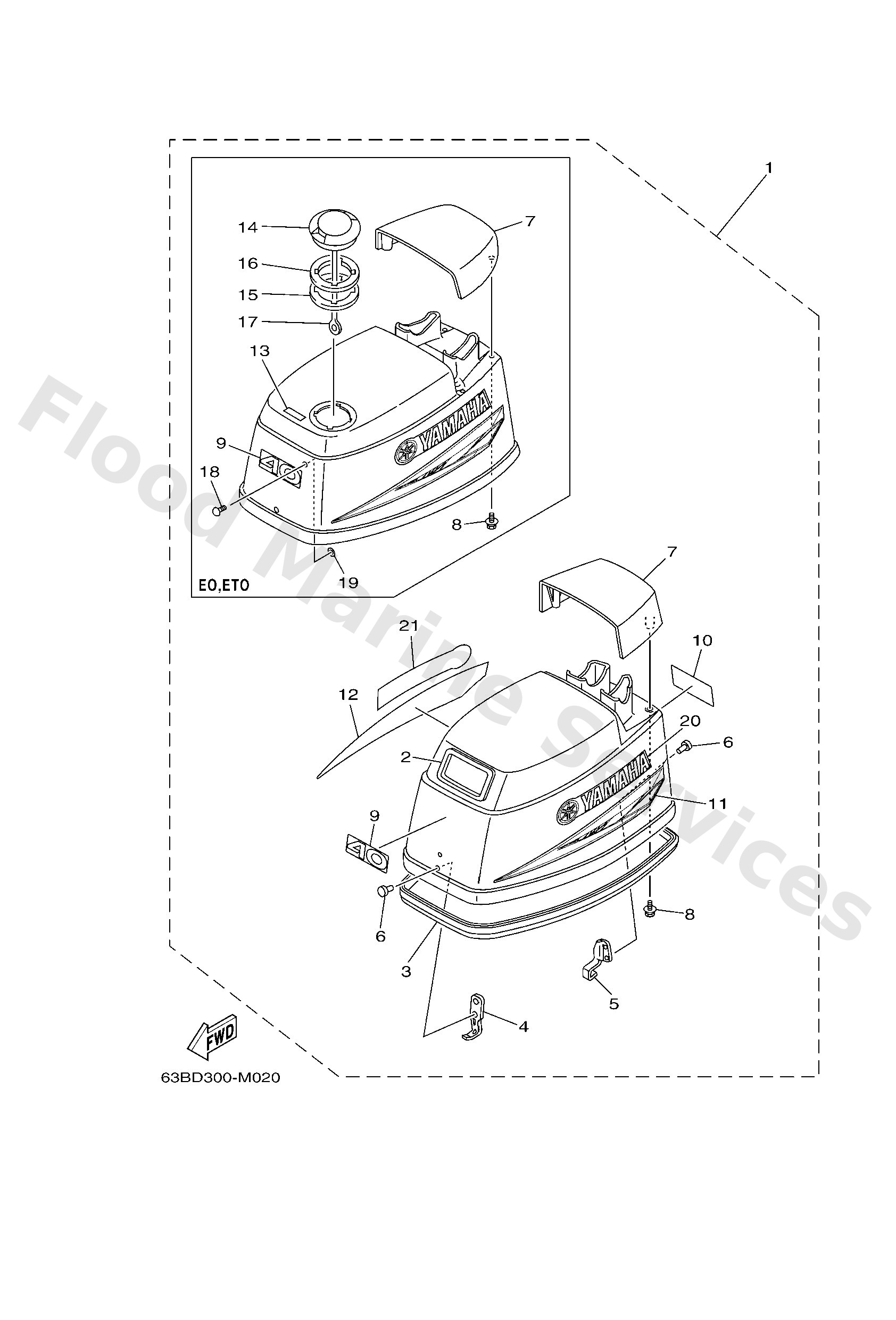

Diagram: TOP COWLING
Parts List
Top cowling assembly
Diagram Reference: 1
Top cowling assembly
Diagram Reference: 1
Seal 1
Diagram Reference: 2
Seal
Diagram Reference: 3
Hook 1
Diagram Reference: 4
Hook 2
Diagram Reference: 5
Rivet (689)
Diagram Reference: 6
M0lding air duct
Diagram Reference: 7
Molding, air duct
Diagram Reference: 7
Bolt, with washer(6h4)
Diagram Reference: 8
Graphic, rear
Diagram Reference: 9
Graphic, side 1
Diagram Reference: 11
Graphic, side 2
Diagram Reference: 12
Mark
Diagram Reference: 13
Disk cap 2
Diagram Reference: 14
Seal 1
Diagram Reference: 15
Seal 2
Diagram Reference: 16
Band
Diagram Reference: 17
Plug (6h1)
Diagram Reference: 18
Nut, spring(6h4)
Diagram Reference: 19
Mark, cowling
Diagram Reference: 20
