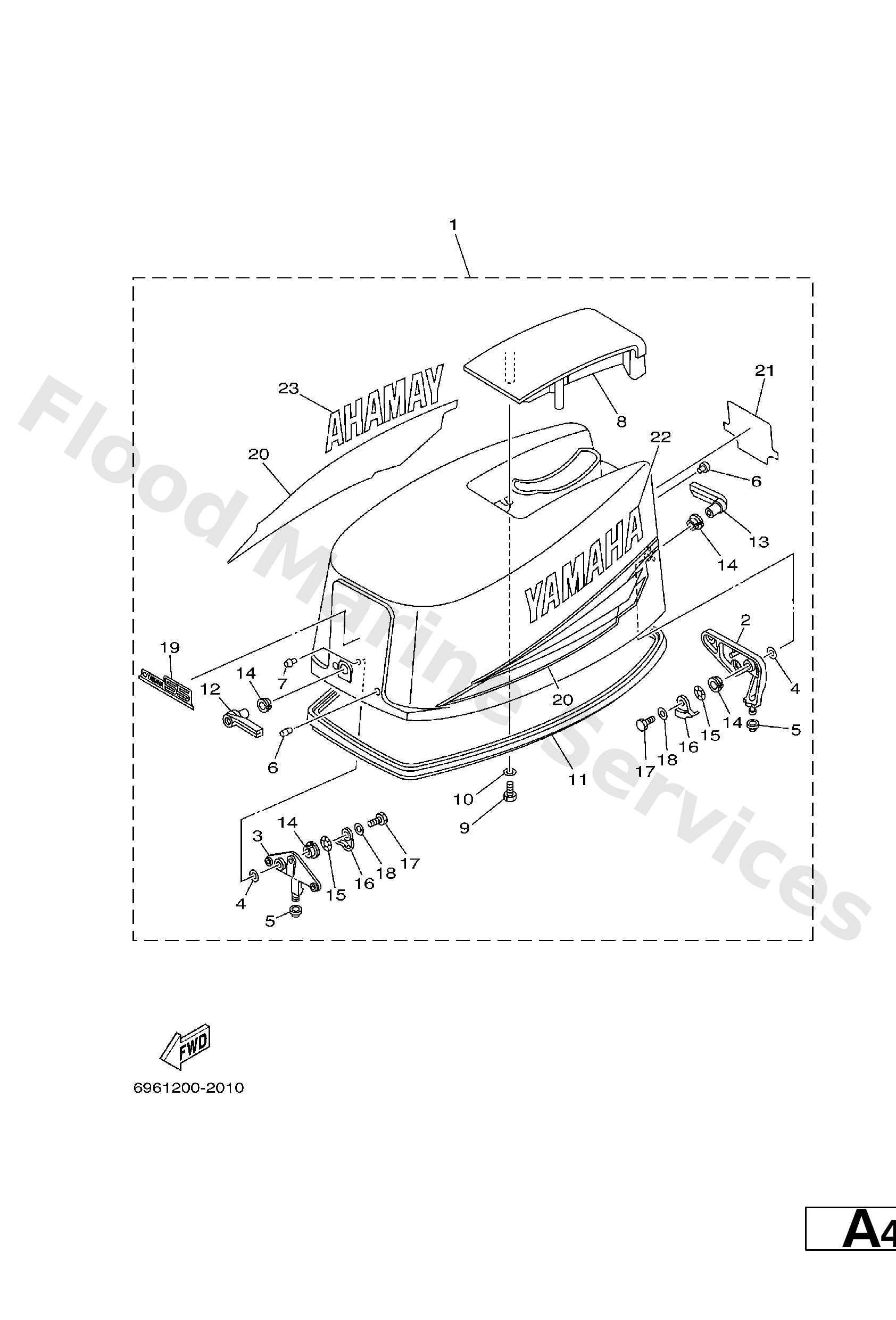

Diagram: TOP COWLING

Diagram

Parts List

69742610404D
Top cowling assembly
Diagram Reference: 1
Get Part
697426470094
Holder, clamp band
Diagram Reference: 2
Get Part
697426490094
Holder, clamp band
Diagram Reference: 3
Get Part
9020219M10
Washer, plate (697)
Diagram Reference: 4
Get Part
663--42662--00
Damper
Diagram Reference: 5
Get Part
90266--06009
Rivet (697)
Diagram Reference: 6
Get Part
90266--06M02
Rivet (697)
Diagram Reference: 7
Get Part
69742613014D
Molding, air duct
Diagram Reference: 8
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 10
Get Part
6634261502
Seal
Diagram Reference: 11
Get Part
697428151198
Lever, clamp 1
Diagram Reference: 12
Get Part
697428171198
Lever, clamp 3
Diagram Reference: 13
Get Part
90386--13M38
Bushing (697)
Diagram Reference: 14
Get Part
90206--13019
Washer, wave 6264283200
Diagram Reference: 15
Get Part
6634281602
Lever, clamp 2
Diagram Reference: 16
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 17
Get Part
90201--06068
Washer,plate (6k8)
Diagram Reference: 18
Get Part
6974267740
Graphic, front
Diagram Reference: 19
Get Part
697W007031
Graphic Set
Diagram Reference: 20
Get Part
6974267830
Graphic, rear
Diagram Reference: 21
Get Part
6974268131
Mark, Cowling
Diagram Reference: 22
Get Part
6974268231
Mark, Cowling
Diagram Reference: 23
