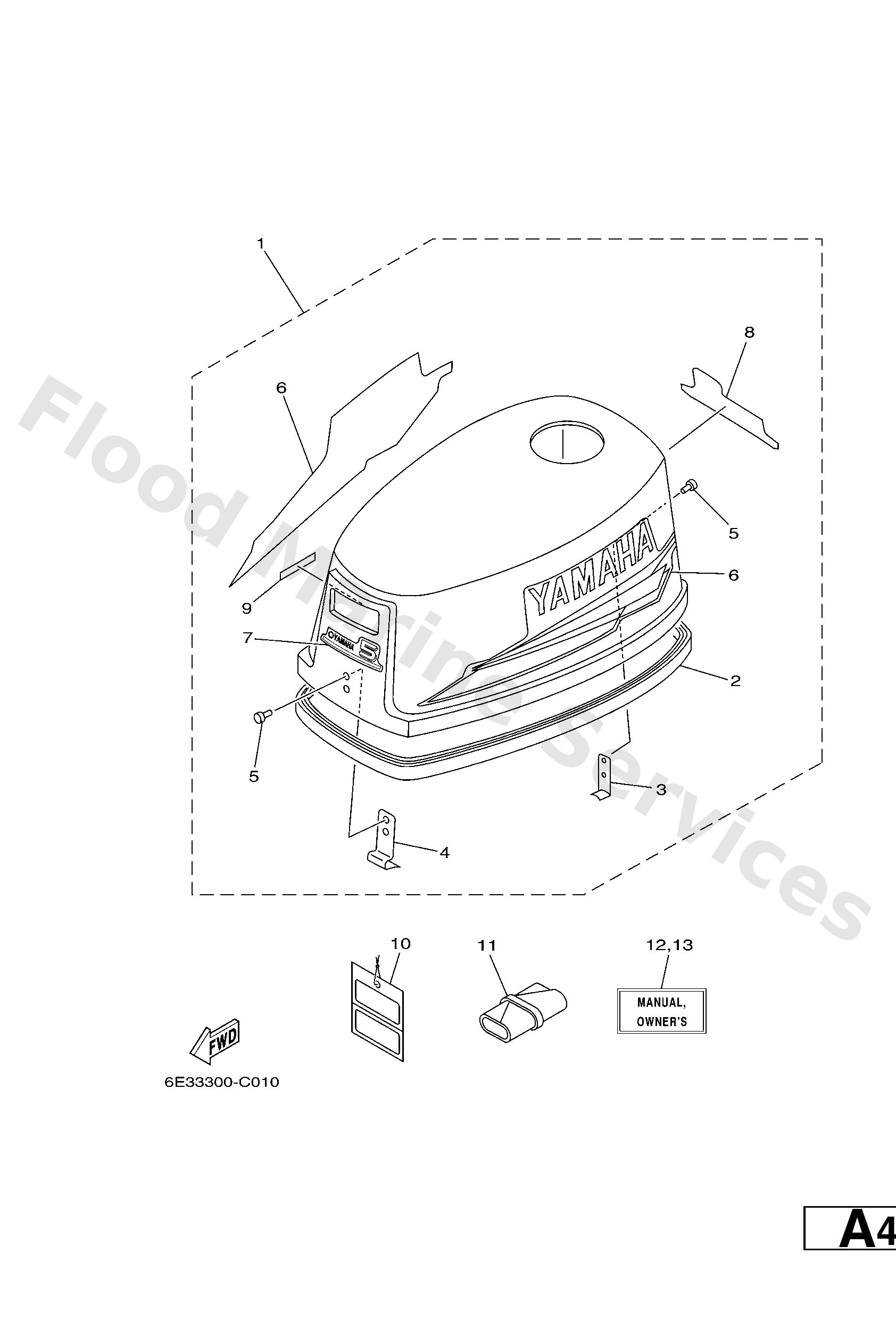

Diagram: TOP COWLING

Diagram

Parts List

6E342610404D

Top Cowling assembly

Diagram Reference: 1

6E04261500

Seal

Diagram Reference: 2

6E04264701

Holder, clamp band

Diagram Reference: 3

6E04265102

Hook

Diagram Reference: 4

9026604M00

Rivet 2 (662)

Diagram Reference: 5

6E0W007014

Graphic Set

Diagram Reference: 6

6E34267720

Graphic, rear

Diagram Reference: 7

6E34267812

Graphic, rear

Diagram Reference: 8

6E04419111

Indicator, shift

Diagram Reference: 9

61H2819R31

-

Diagram Reference: 10

656W281002

Tool kit

Diagram Reference: 11

6A1281997MA0 (UR (E,F,S))

Om 5cmh '04

Diagram Reference: 12

6A1281997MB0 (UR (D,NL,I))

Om 5cmh '04

Diagram Reference: 12

6A1281998NA0 (UR (DK,P,GR))

Om 2b

Diagram Reference: 13

6A1281998NB0 (UR (N,S,SS))

Om 2b

Diagram Reference: 13
