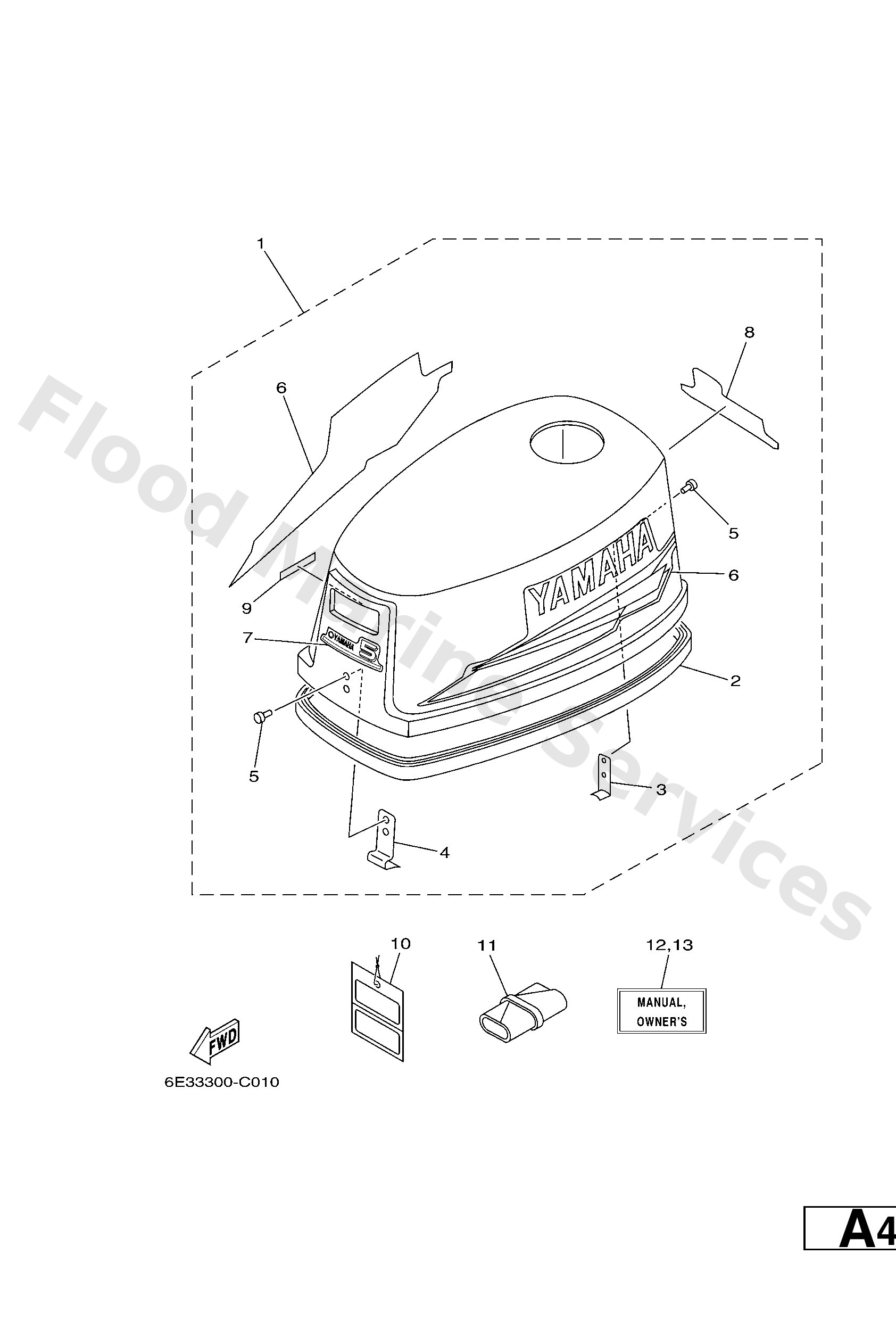

Diagram: TOP COWLING

Diagram

Parts List

6E342610404D

Top Cowling assembly

Diagram Reference: 1

6E04261500

Seal

Diagram Reference: 2

6E04264701

Holder, clamp band

Diagram Reference: 3

6E04265102

Hook

Diagram Reference: 4

9026604M00

Rivet 2 (662)

Diagram Reference: 5

6E0W007014

Graphic Set

Diagram Reference: 6

6E34267720

Graphic, rear

Diagram Reference: 7

6E34267812

Graphic, rear

Diagram Reference: 8

6E04419111

Indicator, shift

Diagram Reference: 9

61H2819R31

-

Diagram Reference: 10

656W281002

Tool kit

Diagram Reference: 11

6A1281997PE0 (UR (E))

Om 5c'06

Diagram Reference: 12

6A1281997PH0 (UR (I))

Om 5c'06

Diagram Reference: 12

6A1281997PD0 (UR (NL))

Om 5c'06

Diagram Reference: 12

6A1281997PG0 (UR (D))

Om 5c'06

Diagram Reference: 12

6A1281997PS0 (UR (ES))

Om 5c'06

Diagram Reference: 12

6A1281997PF0 (UR (F))

Om 5c'06

Diagram Reference: 12

6A1281998RK0 (UR (DK))

Om 5c'06

Diagram Reference: 13

6A1281998RR0 (UR (GR))

Om 5c'06

Diagram Reference: 13

6A1281998RP0 (UR (P))

Om 5c'06

Diagram Reference: 13

6A1281998RN0 (UR (N))

Om 5c'06

Diagram Reference: 13

6A1281998RM0 (UR (S))

Om 5c'06

Diagram Reference: 13

6A1281998RL0 (UR (SF))

Om 5c'06

Diagram Reference: 13
