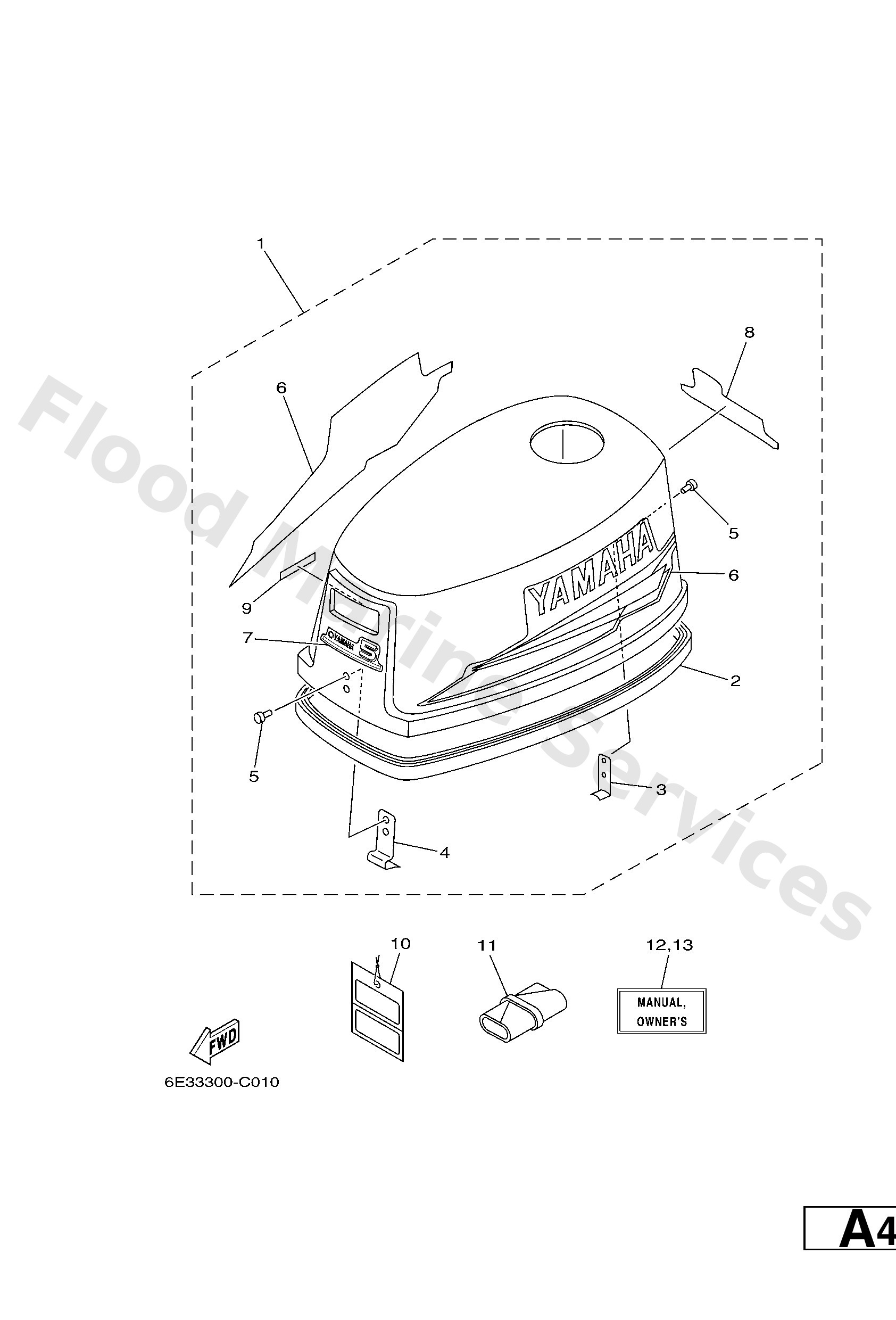

Diagram: TOP COWLING

Diagram

Parts List

6E342610404D
Top Cowling assembly
Diagram Reference: 1
Get Part
6E04261500
Seal
Diagram Reference: 2
Get Part
6E04264701
Holder, clamp band
Diagram Reference: 3
Get Part
6E04265102
Hook
Diagram Reference: 4
Get Part
9026604M00
Rivet 2 (662)
Diagram Reference: 5
Get Part
6E0W007014
Graphic Set
Diagram Reference: 6
Get Part
6E34267720
Graphic, rear
Diagram Reference: 7
Get Part
6E34267812
Graphic, rear
Diagram Reference: 8
Get Part
6E04419111
Indicator, shift
Diagram Reference: 9
Get Part
61H2819R31
-
Diagram Reference: 10
Get Part
656W281002
Tool kit
Diagram Reference: 11
Get Part
6A1281997SE0 (UR (E))
O/m 5c '08
Diagram Reference: 12
Get Part
6A1281997SH0 (UR (I))
O/m 5c '08
Diagram Reference: 12
Get Part
6A1281997SD0 (UR (NL))
O/m 5c '08
Diagram Reference: 12
Get Part
6A1281997SG0 (UR (D))
O/m 5c '08
Diagram Reference: 12
Get Part
6A1281997SS0 (UR (ES))
O/m 5c '08
Diagram Reference: 12
Get Part
6A1281997SF0 (UR (F))
O/m 5c '08
Diagram Reference: 12
Get Part
6A1281998TK0 (UR (DK))
O/m 5c '08
Diagram Reference: 13
Get Part
6A1281998TR0 (UR (GR))
O/m 5c '08
Diagram Reference: 13
Get Part
6A1281998TP0 (UR (P))
O/m 5c '08
Diagram Reference: 13
Get Part
6A1281998TN0 (UR (N))
O/m 5c '08
Diagram Reference: 13
Get Part
6A1281998TM0 (UR (S))
O/m 5c '08
Diagram Reference: 13
Get Part
6A1281998TL0 (UR (SF))
O/m 5c '08
Diagram Reference: 13
Get Part
