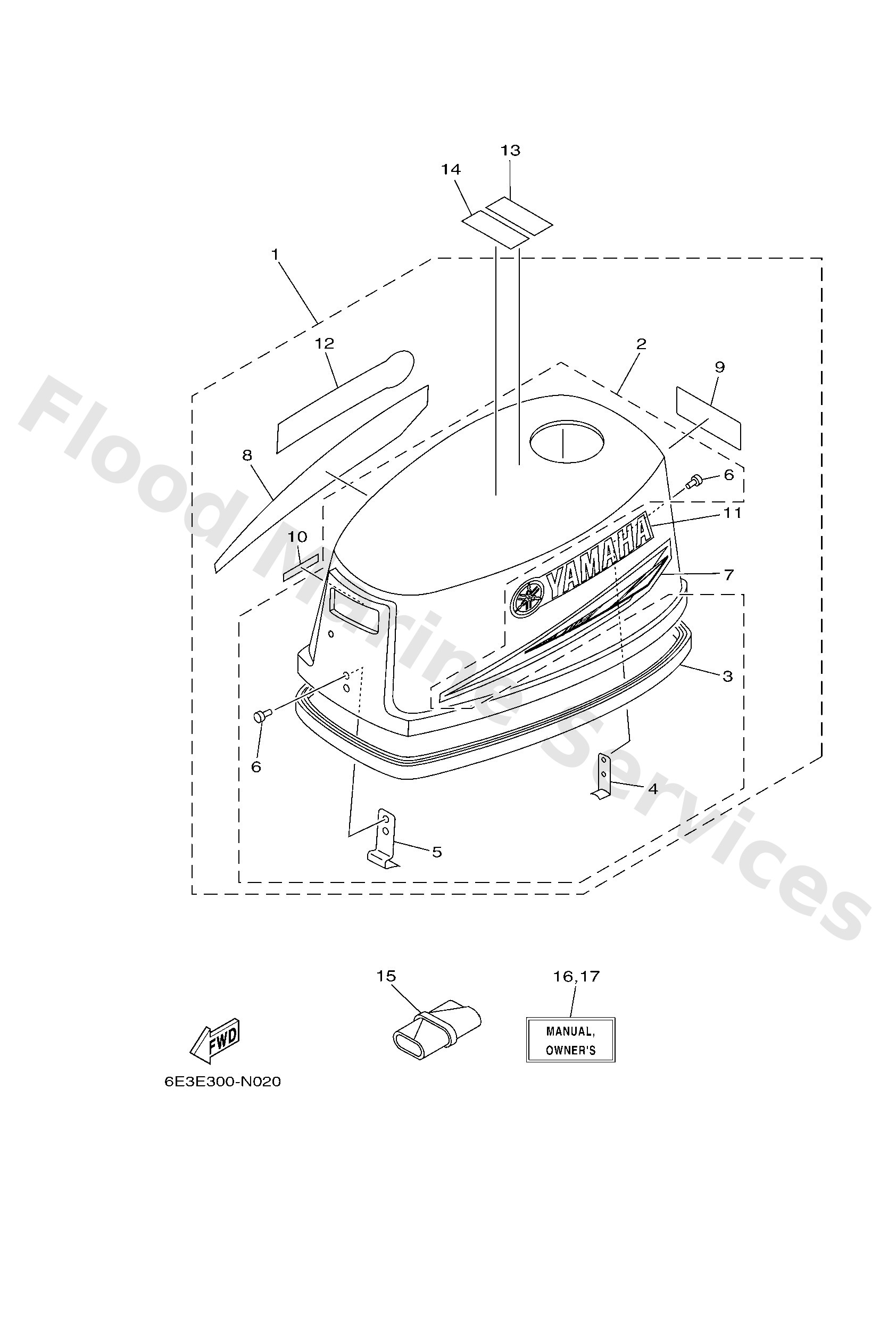

Diagram: TOP COWLING

Diagram

Parts List

6E34261060

Top cowling assembly

Diagram Reference: 1

6E04261090

Top Cowling assembly

Diagram Reference: 1

6E04261A00

Top cowling w/o graphics

Diagram Reference: 2

6E04261500

Seal

Diagram Reference: 3

6E04264701

Holder, clamp band

Diagram Reference: 4

6E04265102

Hook

Diagram Reference: 5

9026604M00

Rivet 2 (662)

Diagram Reference: 6

6E04267540

Graphic, side 1

Diagram Reference: 7

6E04267640

Graphic, side 2

Diagram Reference: 8

6E04267840

Graphic, rear

Diagram Reference: 9

6E34267840

Graphic, rear

Diagram Reference: 9

6X34419100

Indicator, shift

Diagram Reference: 10

6E04268140

Mark, cowling

Diagram Reference: 11

6S74269840

Label, warning (fu

Diagram Reference: 13

6S74269850

Label, warning (fu

Diagram Reference: 14

656W281002 (AP)

Tool kit

Diagram Reference: 15

6A1281997VE0 (UR (E))

Manual,owner's

Diagram Reference: 16

6A1281997VF0 (UR (F))

Manual,owner's

Diagram Reference: 16

6A1281997VS0 (UR (ES))

Manual,owner's

Diagram Reference: 16

6A1281997VG0 (UR (D))

Manual,owner's

Diagram Reference: 16

6A1281997VD0 (UR (NL))

Manual,owner's

Diagram Reference: 16

6A1281997VH0 (UR (I))

Manual,owner's

Diagram Reference: 16

6A1281998WK0 (UR (DK))

Manual,owner's

Diagram Reference: 17

6A1281998WR0 (UR (GR))

Manual,owner's

Diagram Reference: 17

6A1281998WP0 (UR (P))

Manual,owner's

Diagram Reference: 17

6A1281998WN0 (UR (N))

Manual,owner's

Diagram Reference: 17

6A1281998WM0 (UR (S))

Manual,owner's

Diagram Reference: 17

6A1281998WL0 (UR (SF))

Manual,owner's

Diagram Reference: 17
