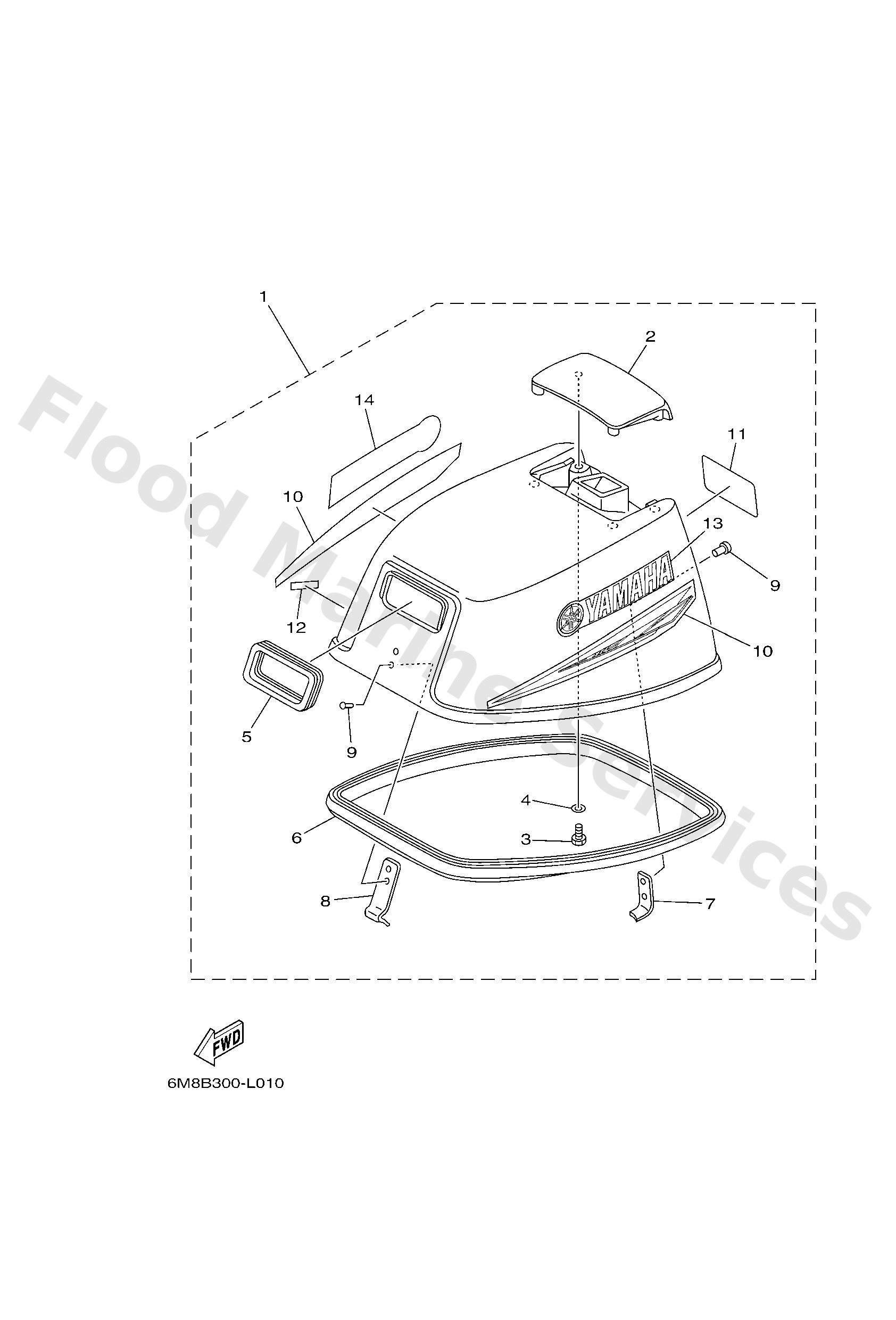

Diagram: TOP COWLING

Diagram

Parts List

6N0G2610004D
Top cowling assembly
Diagram Reference: 1
Get Part
6M8G2610004D
Top Cowling assembly
Diagram Reference: 1
Get Part
6N0G2613004D
Molding air duct
Diagram Reference: 2
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 3
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 4
Get Part
6G11576100
Seal 1
Diagram Reference: 5
Get Part
6G14261500
Seal
Diagram Reference: 6
Get Part
6G14264700
Holder, clamp band
Diagram Reference: 7
Get Part
6N0G265100
Hook 1
Diagram Reference: 8
Get Part
9026604M00
Rivet 2 (662)
Diagram Reference: 9
Get Part
6E0W007040
Graphic set
Diagram Reference: 10
Get Part
6M84267840
Graphic, rear
Diagram Reference: 11
Get Part
6N04267840
Graphic, rear
Diagram Reference: 11
Get Part
60RG419100
Indicator, shift
Diagram Reference: 12
Get Part
6E04268140
Mark, cowling
Diagram Reference: 13
