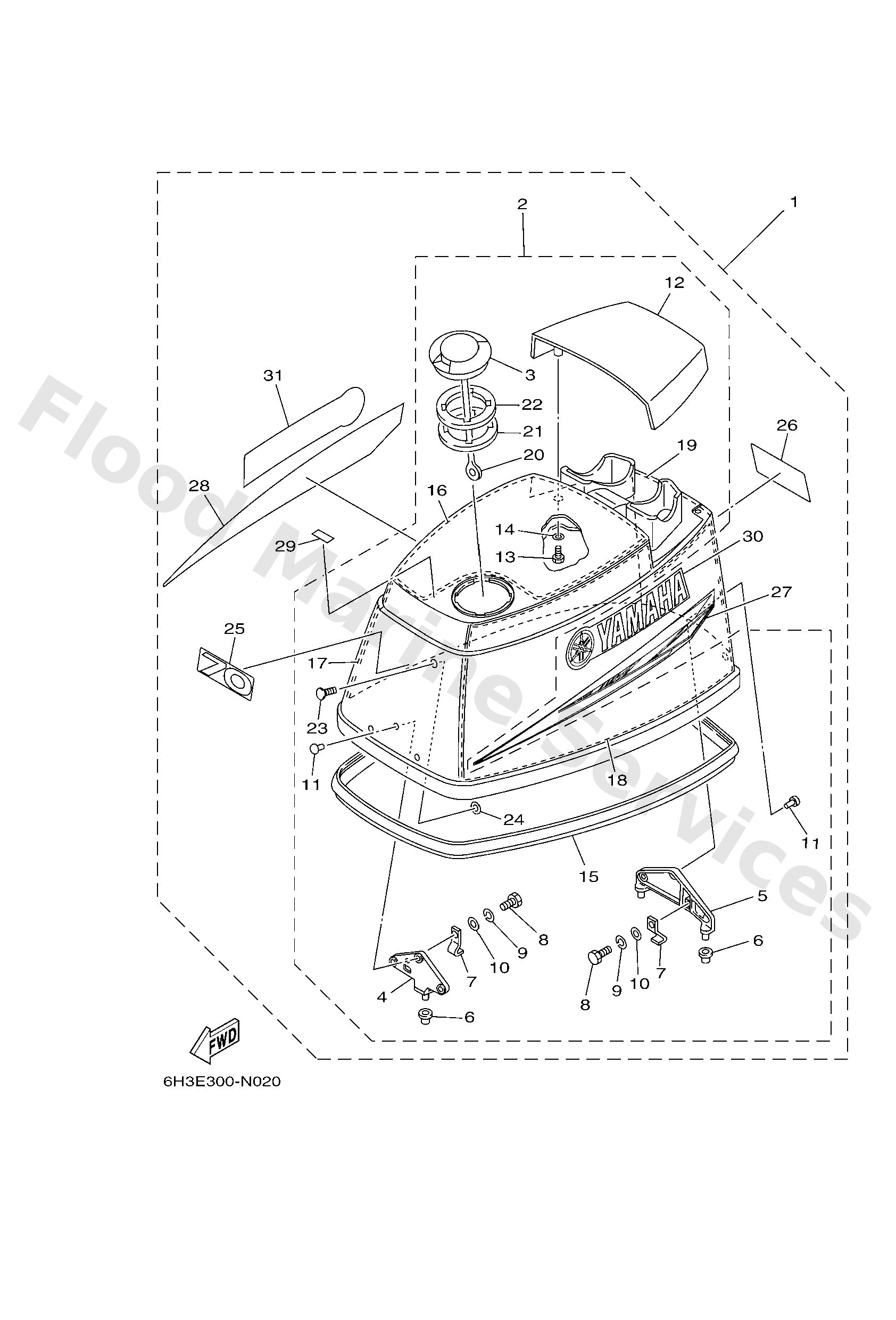

Diagram: TOP COWLING

Diagram

Parts List

6H34261000
Top cowling assembly
Diagram Reference: 1
Get Part
6H34261A10
Top cowling w/o graphics
Diagram Reference: 2
Get Part
63D2177H00
Disk cap 2
Diagram Reference: 3
Get Part
6H34264700
Holder, clamp band
Diagram Reference: 4
Get Part
6H34264900
Holder, clamp band
Diagram Reference: 5
Get Part
6634266200
Damper
Diagram Reference: 6
Get Part
6H34265200
Hook 2
Diagram Reference: 7
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 8
Get Part
9299506100
Washer(6a1)
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
9026606009
Rivet (697)
Diagram Reference: 11
Get Part
6H342613014D
M0lding air duct
Diagram Reference: 12
Get Part
6H34261500
Seal
Diagram Reference: 15
Get Part
6H34261710
Damper, Form
Diagram Reference: 16
Get Part
6H34261900
Damper (350x640)
Diagram Reference: 17
Get Part
6H34262700
Damper (350x640)
Diagram Reference: 18
Get Part
6H34263700
Damper, Form
Diagram Reference: 19
Get Part
6H14269400
Band
Diagram Reference: 20
Get Part
6H32173200
Seal 1
Diagram Reference: 21
Get Part
6H32173500
Seal 2
Diagram Reference: 22
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 23
Get Part
9018305M06
Nut, spring(6h4)
Diagram Reference: 24
Get Part
6H34267810
Graphic, rear
Diagram Reference: 25
Get Part
6884267540
Graphic, side 1
Diagram Reference: 27
Get Part
6884267640
Graphic, side 2
Diagram Reference: 28
Get Part
6H31343600
Mark
Diagram Reference: 29
Get Part
6884268140
Mark, cowling
Diagram Reference: 30
Get Part
