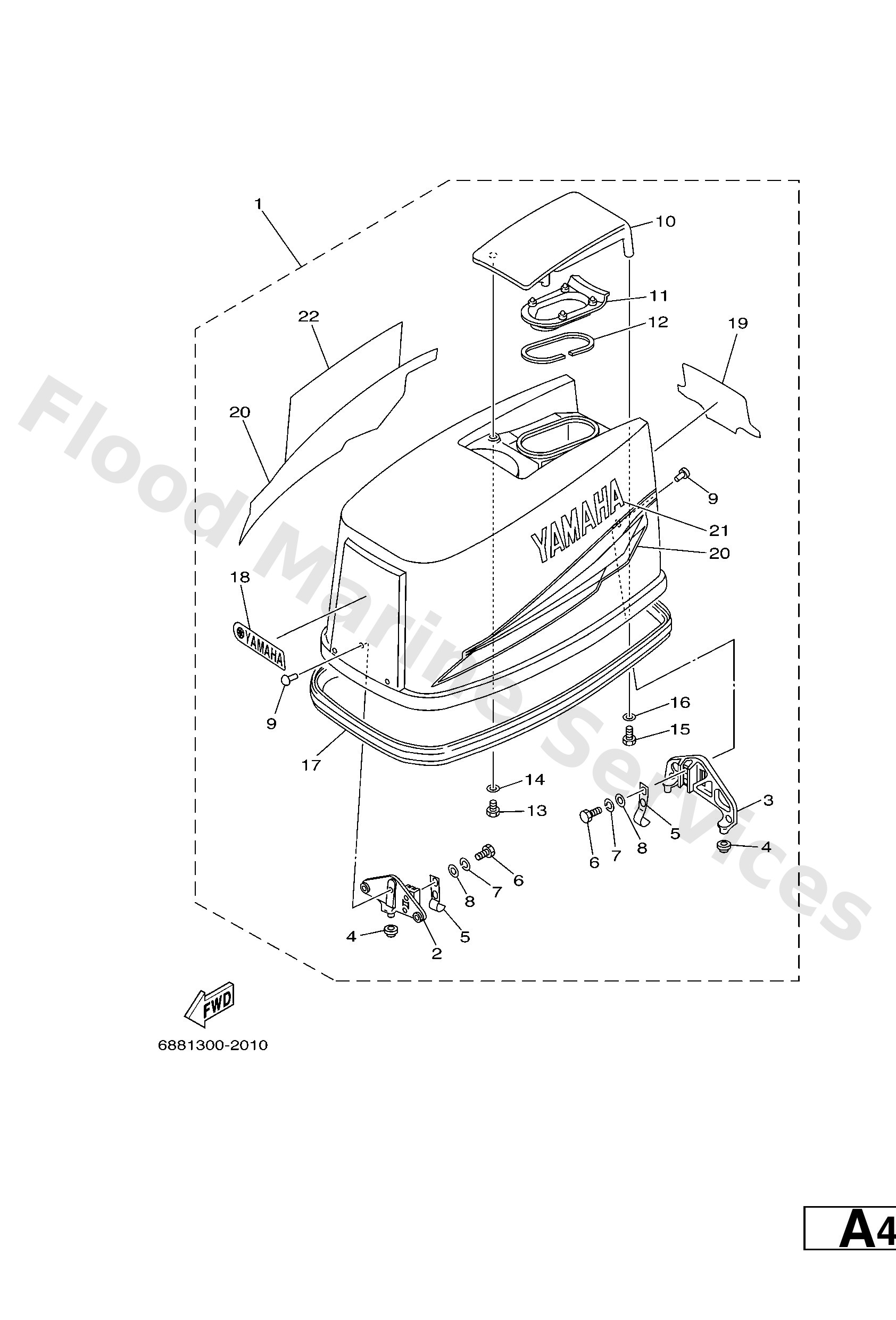

Diagram: TOP COWLING

Diagram

Parts List

69242610804D
Top Cowling assembly
Diagram Reference: 1
Get Part
688426470094
Holder, clamp band
Diagram Reference: 2
Get Part
688426490094
Holder, clamp band
Diagram Reference: 3
Get Part
6634266200
Damper
Diagram Reference: 4
Get Part
6884265210
Hook 2
Diagram Reference: 5
Get Part
9709506018
Bolt (fj0)
Diagram Reference: 6
Get Part
9299506100
Washer(6a1)
Diagram Reference: 7
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 8
Get Part
9026606009
Rivet (697)
Diagram Reference: 9
Get Part
68842613014D
Molding, air duct
Diagram Reference: 10
Get Part
6884261800
Air shroud, top cowling
Diagram Reference: 11
Get Part
6884262800
Seal 1
Diagram Reference: 12
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
9709506025
Bolt
Diagram Reference: 15
Get Part
6884261500
Seal
Diagram Reference: 17
Get Part
68842677D0 (YAMAHA)
Graphic, front
Diagram Reference: 18
Get Part
6924267831
Graphic, Rear
Diagram Reference: 19
Get Part
688W007031
Graphic set
Diagram Reference: 20
Get Part
6884268131
Mark, Cowling
Diagram Reference: 21
Get Part
6884268231
Mark, Cowling
Diagram Reference: 22
Get Part
