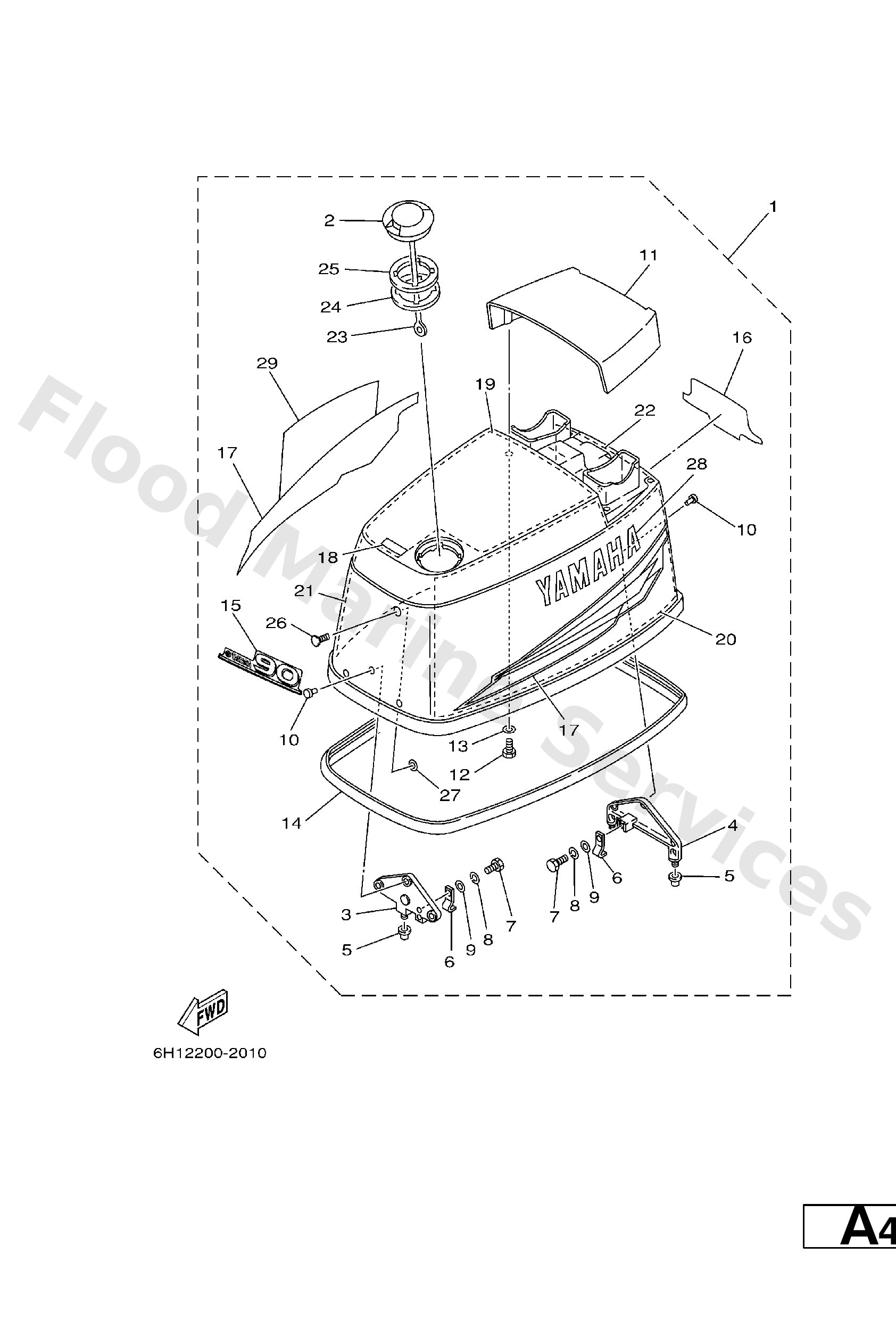

Diagram: TOP COWLING

Diagram

Parts List

6H042610B04D
Top Cowling assembly
Diagram Reference: 1
Get Part
6H142610604D
Top Cowling assembly
Diagram Reference: 1
Get Part
63D--2177H--00
Disk cap 2
Diagram Reference: 2
Get Part
6H1426470094
Holder, clamp band
Diagram Reference: 3
Get Part
6H1426490094
Holder, clamp band
Diagram Reference: 4
Get Part
663--42662--00
Damper
Diagram Reference: 5
Get Part
688--42652--10
Hook 2
Diagram Reference: 6
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 7
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 8
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 9
Get Part
90266--06009
Rivet (697)
Diagram Reference: 10
Get Part
6H142613014D
Molding air duct
Diagram Reference: 11
Get Part
688--42615--00
Seal
Diagram Reference: 14
Get Part
6H042677A0
Graphic, Front
Diagram Reference: 15
Get Part
6H14267760
Graphic, front
Diagram Reference: 15
Get Part
6H14267830
Graphic, front
Diagram Reference: 16
Get Part
6H04267890
Graphic, Rear
Diagram Reference: 16
Get Part
6H1W007030
Graphic set
Diagram Reference: 17
Get Part
6H1--13436--00
Mark
Diagram Reference: 18
Get Part
6H11343641
Mark
Diagram Reference: 18
Get Part
6H1--42617--10
Damper, Form
Diagram Reference: 19
Get Part
6H1--42619--00
Damper (350x640)
Diagram Reference: 20
Get Part
6H1--42627--00
Damper (350x640)
Diagram Reference: 21
Get Part
6H1--42637--00
Damper, Form
Diagram Reference: 22
Get Part
6H1--42694--00
Band
Diagram Reference: 23
Get Part
6H3--21732--00
Seal 1
Diagram Reference: 24
Get Part
6H3--21735--00
Seal 2
Diagram Reference: 25
Get Part
90338--05M12
Plug(6h4)
Diagram Reference: 26
Get Part
90183--05M06
Nut, spring(6h4)
Diagram Reference: 27
Get Part
6H14268130
Mark, Cowling
Diagram Reference: 28
Get Part
6H14268230
Mark, Cowling
Diagram Reference: 29
Get Part
