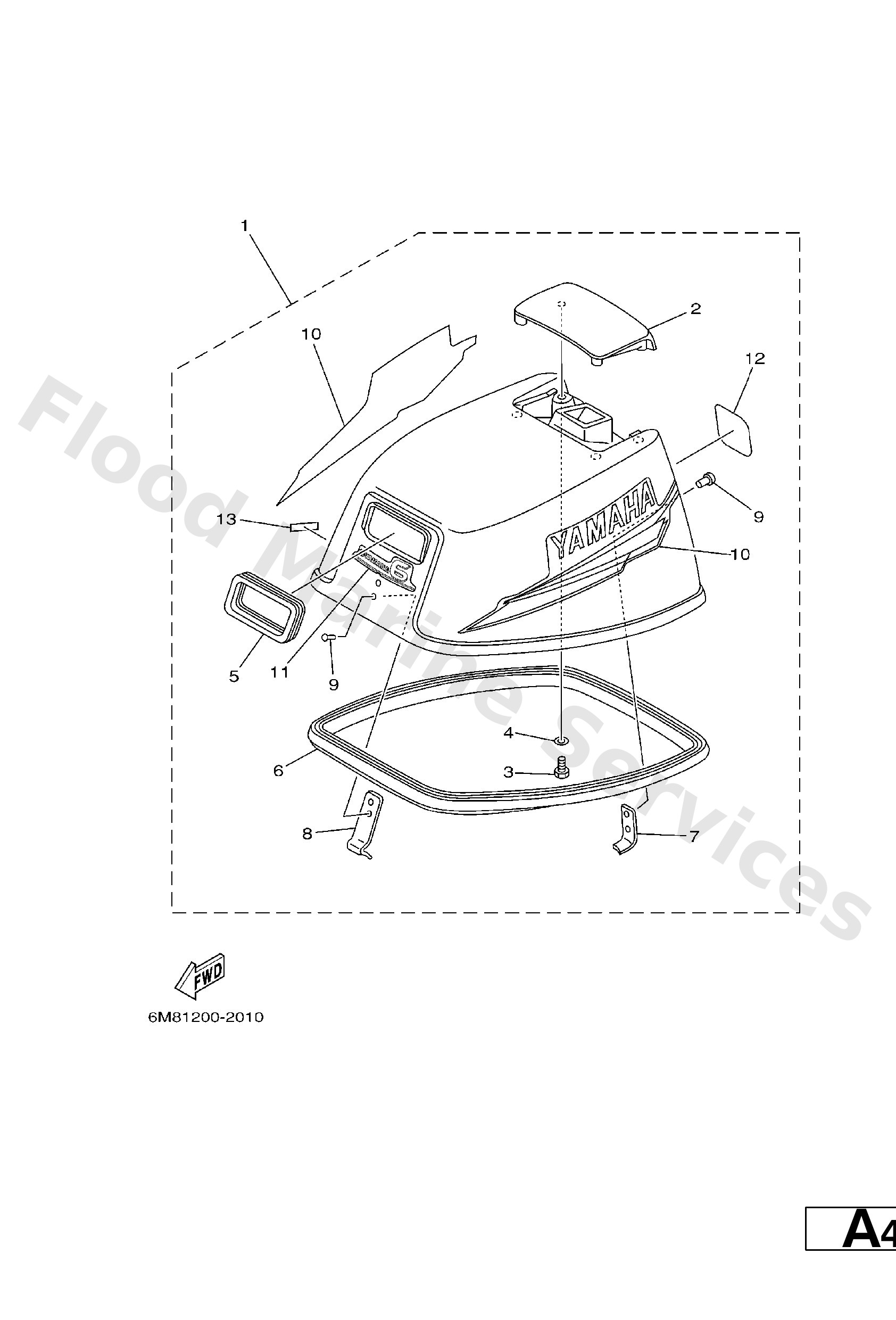

Diagram: TOP COWLING

Diagram

Parts List

97095--06016
Bolt, hexagon deep recess
Diagram Reference: 3
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 4
Get Part
6G1--15761--00
Seal 1
Diagram Reference: 5
Get Part
6G1--42615--00
Seal
Diagram Reference: 6
Get Part
6G1--42647--00
Holder, clamp band
Diagram Reference: 7
Get Part
6N0--G2651--00
Hook 1
Diagram Reference: 8
Get Part
90266--04M00
Rivet 2 (662)
Diagram Reference: 9
Get Part
6N0WG07010
Graphic set
Diagram Reference: 10
Get Part
6M8G267720 (6C,6D)
Graphic, Front
Diagram Reference: 11
Get Part
6N0G267720 (8C)
Graphic front 8cv
Diagram Reference: 11
Get Part
6M8G267811 (6C,6D)
Graphic, rear
Diagram Reference: 12
Get Part
6N0G267811 (8C)
Graphic, rear
Diagram Reference: 12
Get Part
6E0--44191--11
Indicator, shift
Diagram Reference: 13
