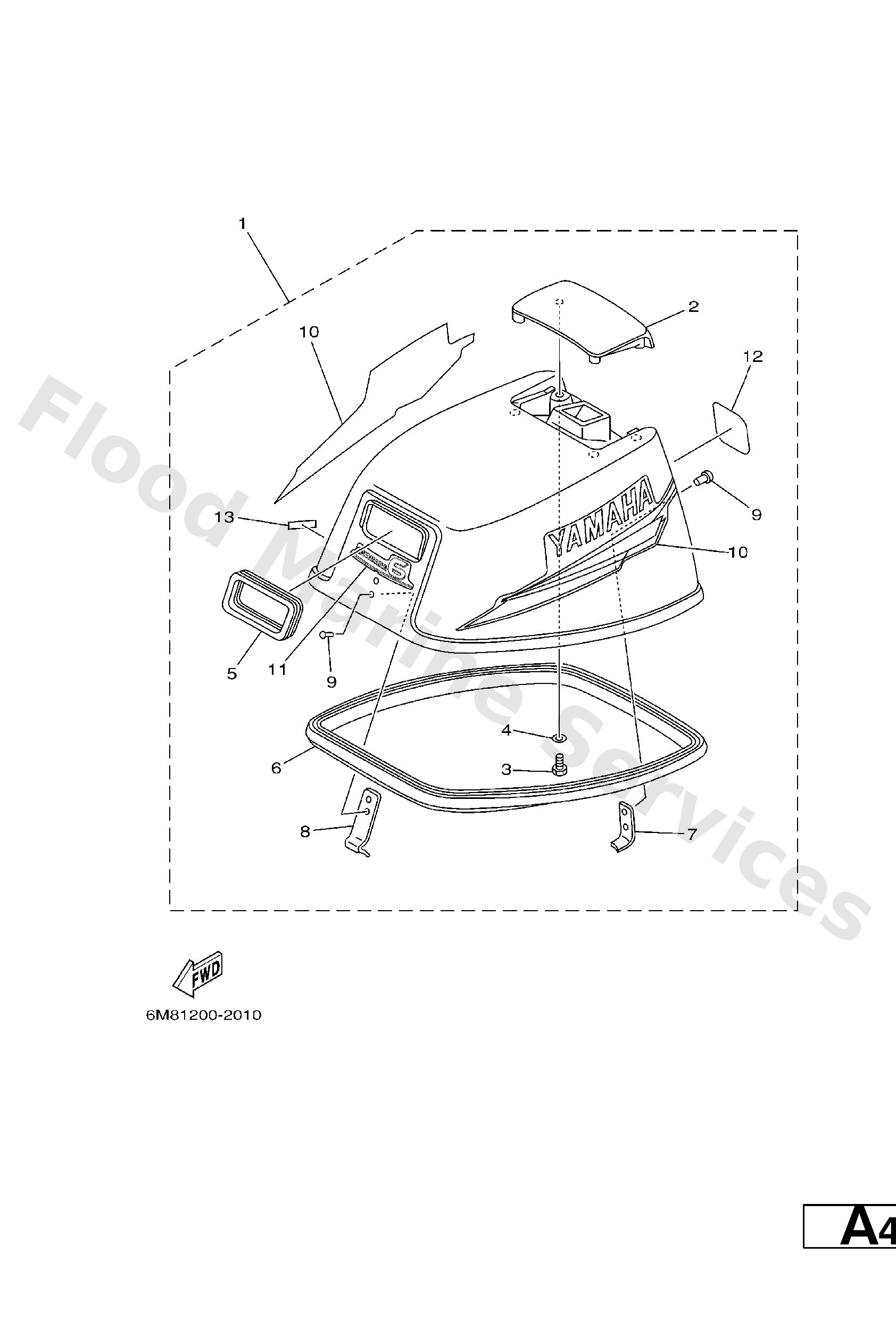

Diagram: TOP COWLING

Diagram

Parts List

97095−06016
Bolt, hexagon deep recess
Diagram Reference: 3
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 4
Get Part
6G1−15761−00
Seal 1
Diagram Reference: 5
Get Part
6G1−42615−00
Seal
Diagram Reference: 6
Get Part
6G1−42647−00
Holder, clamp band
Diagram Reference: 7
Get Part
6N0−G2651−00
Hook 1
Diagram Reference: 8
Get Part
90266−04M00
Rivet 2 (662)
Diagram Reference: 9
Get Part
6N0−WG070−10
Graphic set
Diagram Reference: 10
Get Part
6M8−G2677−20
Graphic, Front
Diagram Reference: 11
Get Part
6N0−G2677−20
Graphic front 8cv
Diagram Reference: 11
Get Part
6M8−G2678−11
Graphic, rear
Diagram Reference: 12
Get Part
6N0−G2678−11
Graphic, rear
Diagram Reference: 12
Get Part
6E0−44191−11
Indicator, shift
Diagram Reference: 13
Get Part
