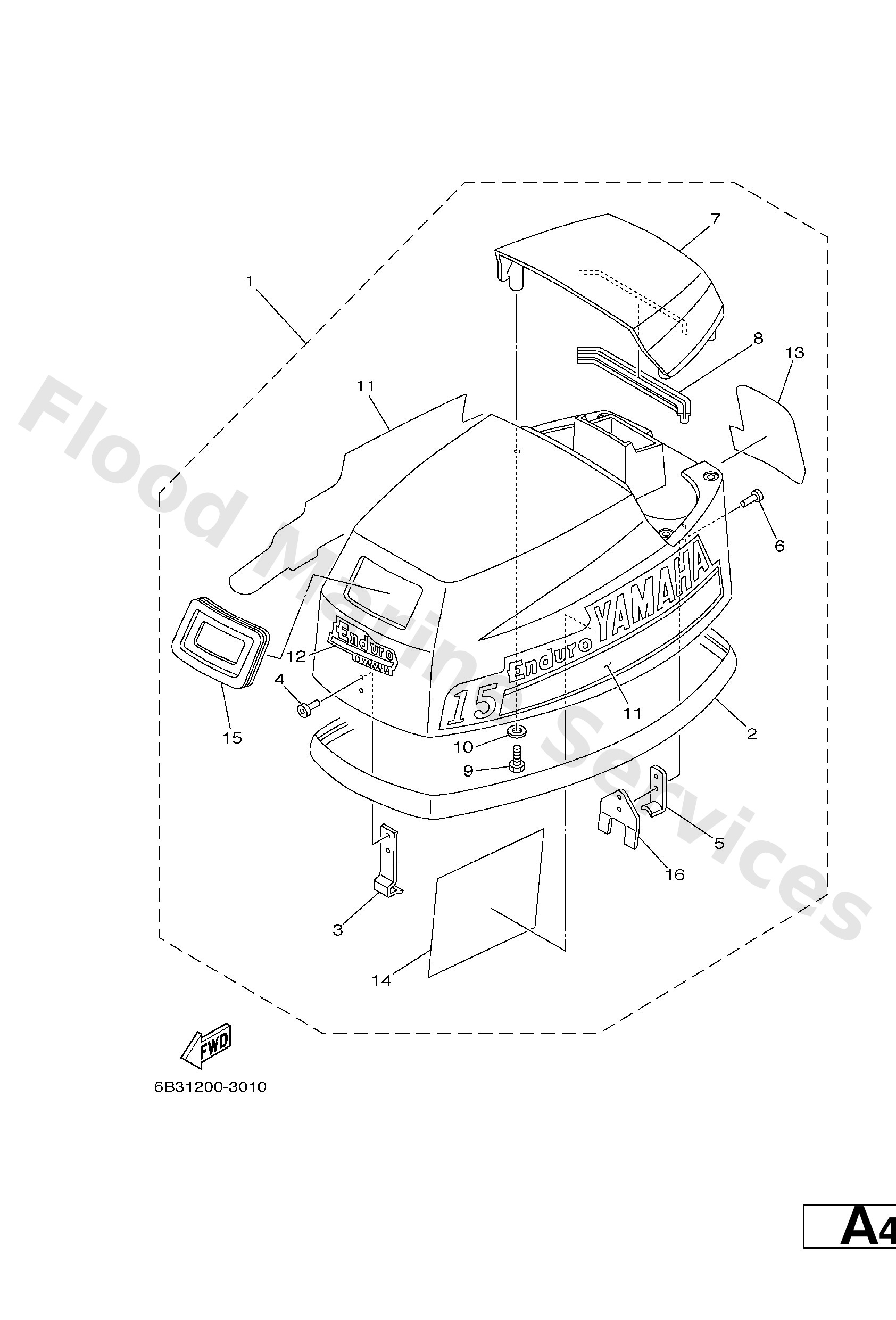

Diagram: TOP COWLING

Diagram

Parts List

6B4−42610−00−4D
Top cowling assembly
Diagram Reference: 1
Get Part
6B3−42610−00−4D
Top cowling assembly
Diagram Reference: 1
Get Part
6B4−42615−00
Seal
Diagram Reference: 2
Get Part
6B4−42651−00
Hook
Diagram Reference: 3
Get Part
90266−04M00
Rivet 2 (662)
Diagram Reference: 4
Get Part
6B4−42647−00
Holder, clamp band
Diagram Reference: 5
Get Part
90266−04005
Rivet
Diagram Reference: 6
Get Part
6B4−42613−00−4D
Molding, air duct
Diagram Reference: 7
Get Part
6B4−42628−00
Seal
Diagram Reference: 8
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 10
Get Part
6B3−W0070−H0
1−
Diagram Reference: 11
Get Part
6B4−W0070−H0
1−
Diagram Reference: 11
Get Part
677−42677−J0
Graphic, front
Diagram Reference: 12
Get Part
682−42678−H0
Graphic, Rear
Diagram Reference: 13
Get Part
684−42678−H0
Graphic, Rear
Diagram Reference: 13
Get Part
677−13437−0A
1−
Diagram Reference: 14
Get Part
6B4−15761−00
Seal, rubber 1
Diagram Reference: 15
Get Part
6B4−42646−00
Plate, clamp
Diagram Reference: 16
