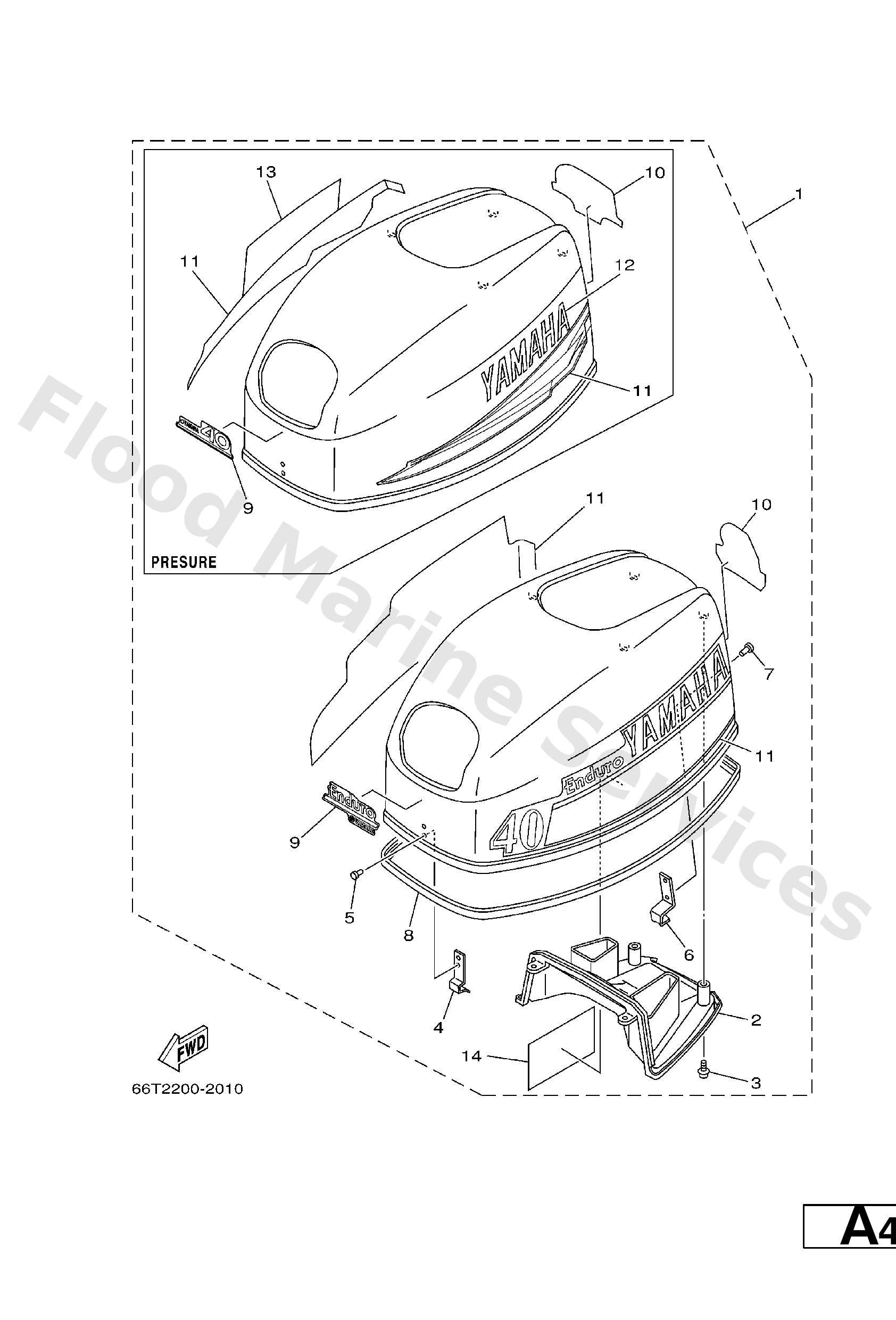

Diagram: TOP COWLING

Diagram

Parts List

66T−42610−20−4D (PRESURE)
Top cowling assembly
Diagram Reference: 1
Get Part
66T−42610−K0−4D (ENDURO)
Top cowling assembly
Diagram Reference: 1
Get Part
66T−42613−01
Molding, air duct
Diagram Reference: 2
Get Part
97780−50616
Screw, pan head tapping (ak5)
Diagram Reference: 3
Get Part
6E0−42651−02
Hook
Diagram Reference: 4
Get Part
90266−04M04
Rivet(6e7)
Diagram Reference: 5
Get Part
6F5−42652−01
Hook
Diagram Reference: 6
Get Part
90266−04M01
Rivet (689)
Diagram Reference: 7
Get Part
66T−42615−02
Seal
Diagram Reference: 8
Get Part
69P−42677−H0 (ENDURO)
Graphic, Front
Diagram Reference: 9
Get Part
63D−42677−20 (PRESURE)
Graphic, front
Diagram Reference: 9
Get Part
6J4−42678−H0 (ENDURO)
Graphic, Rear
Diagram Reference: 10
Get Part
63D−42678−11 (PRESURE)
Graphic, rear
Diagram Reference: 10
Get Part
66T−W0070−H0 (ENDURO)
Graphic set
Diagram Reference: 11
Get Part
63D−W0070−10 (PRESURE)
Graphic set
Diagram Reference: 11
Get Part
63D−42681−10 (PRESURE)
Mark, cowling
Diagram Reference: 12
Get Part
63D−42682−10 (PRESURE)
Mark, cowling
Diagram Reference: 13
Get Part
677−13437−08 (ENDURO)
1−
Diagram Reference: 14
