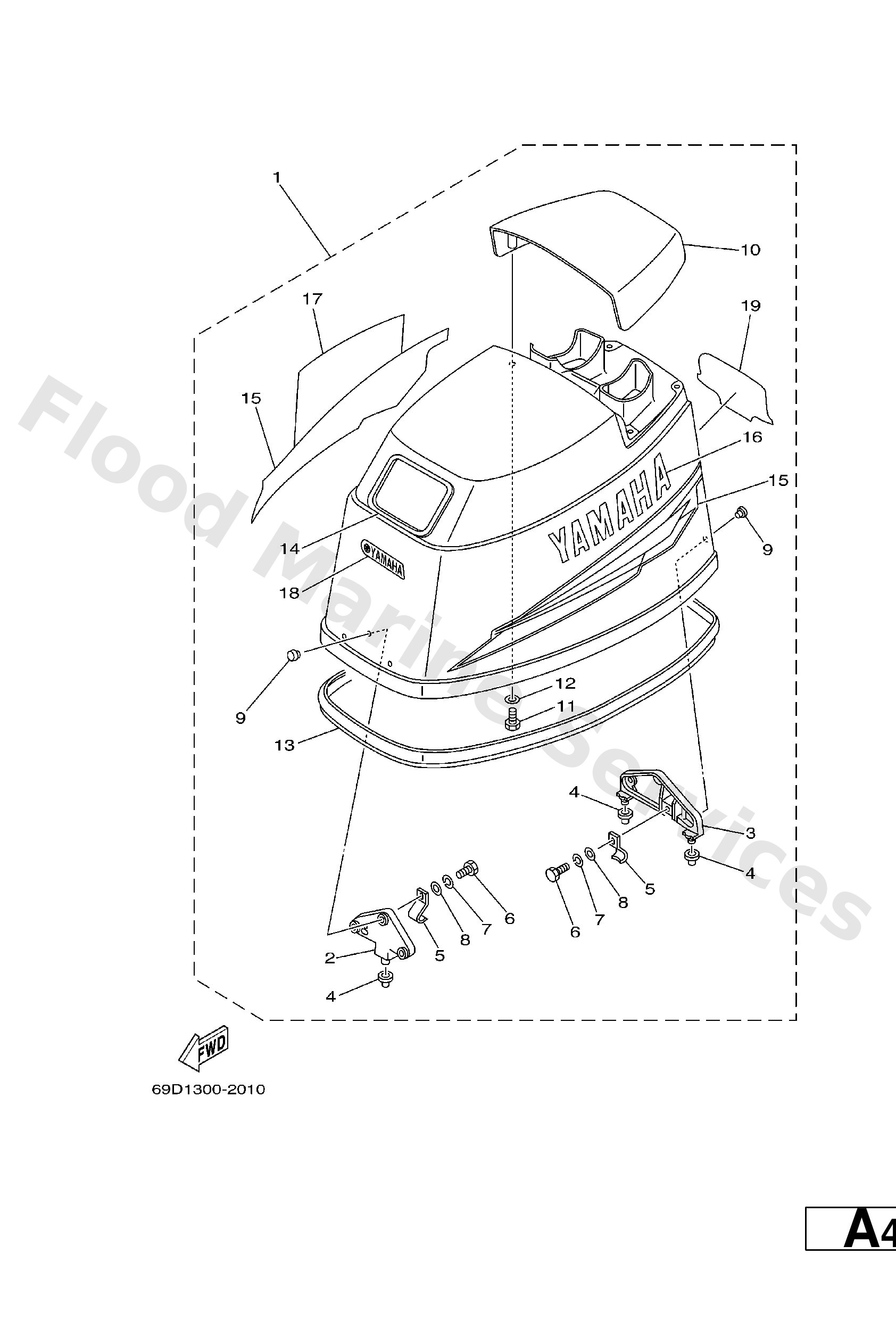

Diagram: TOP COWLING

Diagram

Parts List

6K5−42610−C0−4D
Top Cowling assembly
Diagram Reference: 1
Get Part
6H3−42647−00−94
Holder, clamp band
Diagram Reference: 2
Get Part
6H3−42649−00−94
Holder, clamp band
Diagram Reference: 3
Get Part
663−42662−00
Damper
Diagram Reference: 4
Get Part
6H3−42652−00
Hook 2
Diagram Reference: 5
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 7
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 8
Get Part
90266−06009
Rivet (697)
Diagram Reference: 9
Get Part
6H3−42613−01−4D
M0lding air duct
Diagram Reference: 10
Get Part
6H3−42615−00
Seal
Diagram Reference: 13
Get Part
6K5−15761−00
Seal, rubber 1
Diagram Reference: 14
Get Part
6H3−W0070−30
Graphic set
Diagram Reference: 15
Get Part
6H3−42681−30
Mark, cowling
Diagram Reference: 16
Get Part
6H3−42682−30
Mark, cowling
Diagram Reference: 17
Get Part
688−42677−D0 (YAMAHA)
Graphic, front
Diagram Reference: 18
Get Part
6H2−42678−30
Graphic, front
Diagram Reference: 19
Get Part
