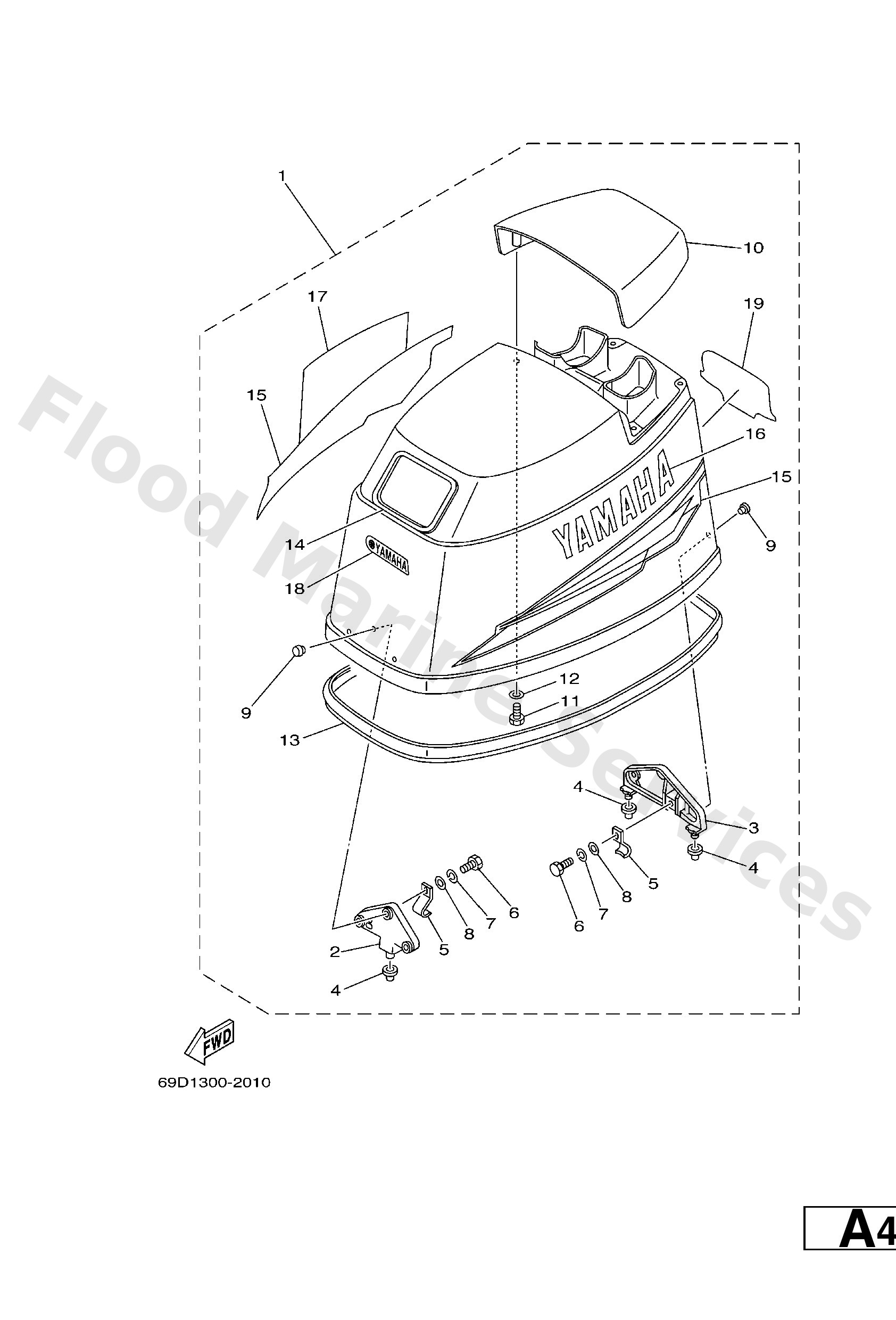

Diagram: TOP COWLING

Diagram

Parts List

6K542610C04D
Top Cowling assembly
Diagram Reference: 1
Get Part
6H3426470094
Holder, clamp band
Diagram Reference: 2
Get Part
6H3426490094
Holder, clamp band
Diagram Reference: 3
Get Part
6634266200
Damper
Diagram Reference: 4
Get Part
6H34265200
Hook 2
Diagram Reference: 5
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299506100
Washer(6a1)
Diagram Reference: 7
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 8
Get Part
9026606009
Rivet (697)
Diagram Reference: 9
Get Part
6H342613014D
M0lding air duct
Diagram Reference: 10
Get Part
6H34261500
Seal
Diagram Reference: 13
Get Part
6K51576100
Seal, rubber 1
Diagram Reference: 14
Get Part
6H3W007030
Graphic set
Diagram Reference: 15
Get Part
6H34268130
Mark, cowling
Diagram Reference: 16
Get Part
6H34268230
Mark, cowling
Diagram Reference: 17
Get Part
68842677D0 (YAMAHA)
Graphic, front
Diagram Reference: 18
Get Part
6H24267830
Graphic, front
Diagram Reference: 19
