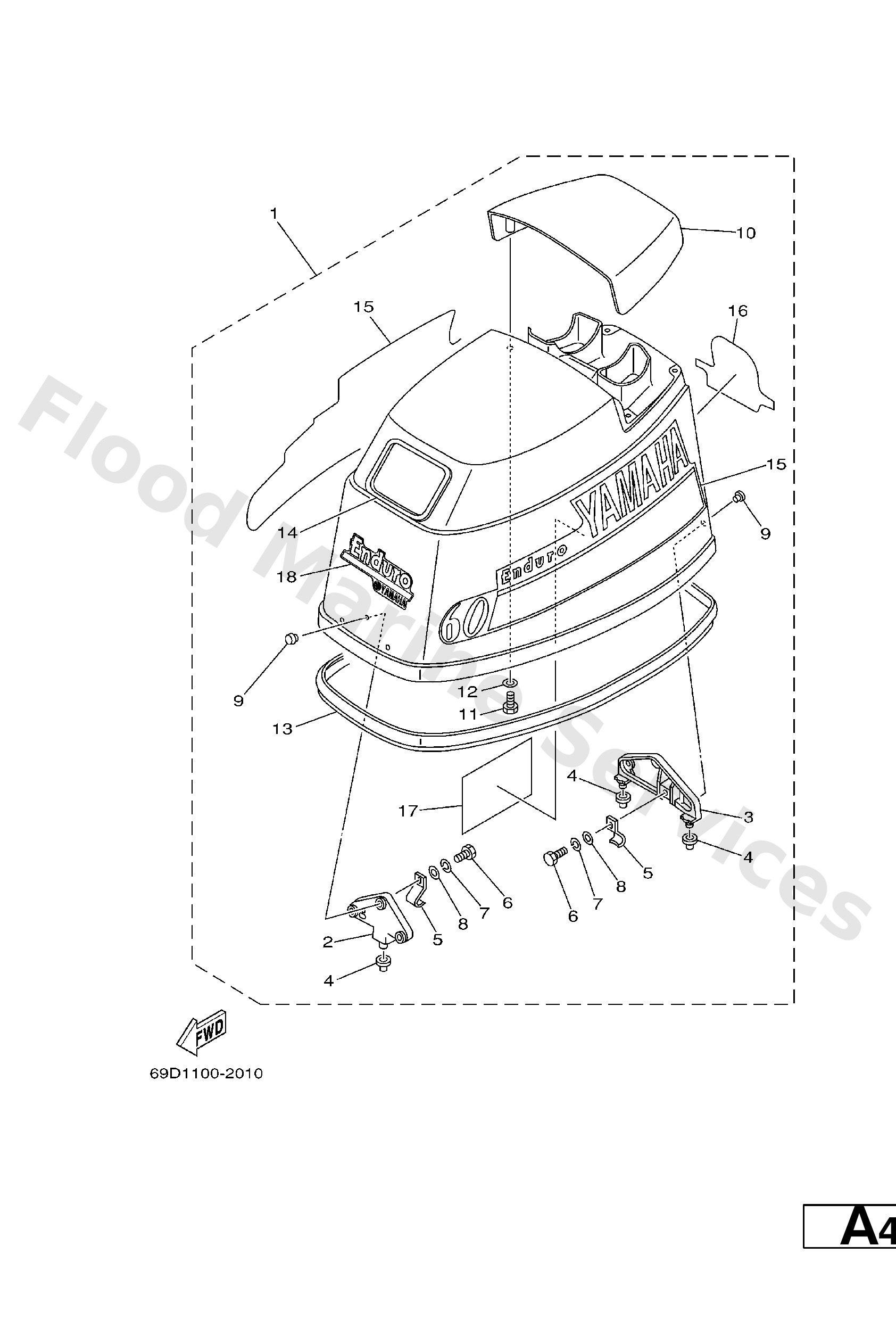

Diagram: TOP COWLING

Diagram

Parts List

663−42662−00
Damper
Diagram Reference: 4
Get Part
6H3−42652−00
Hook 2
Diagram Reference: 5
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 7
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 8
Get Part
90266−06009
Rivet (697)
Diagram Reference: 9
Get Part
6H3−42615−00
Seal
Diagram Reference: 13
Get Part
6K5−15761−00
Seal, rubber 1
Diagram Reference: 14
Get Part
6K5−W0070−H0
1−
Diagram Reference: 15
Get Part
6K5−42678−H0
Graphic, rear
Diagram Reference: 16
Get Part
677−13437−08
1−
Diagram Reference: 17
Get Part
69D−42677−H0
Graphic, Front
Diagram Reference: 18
Get Part
