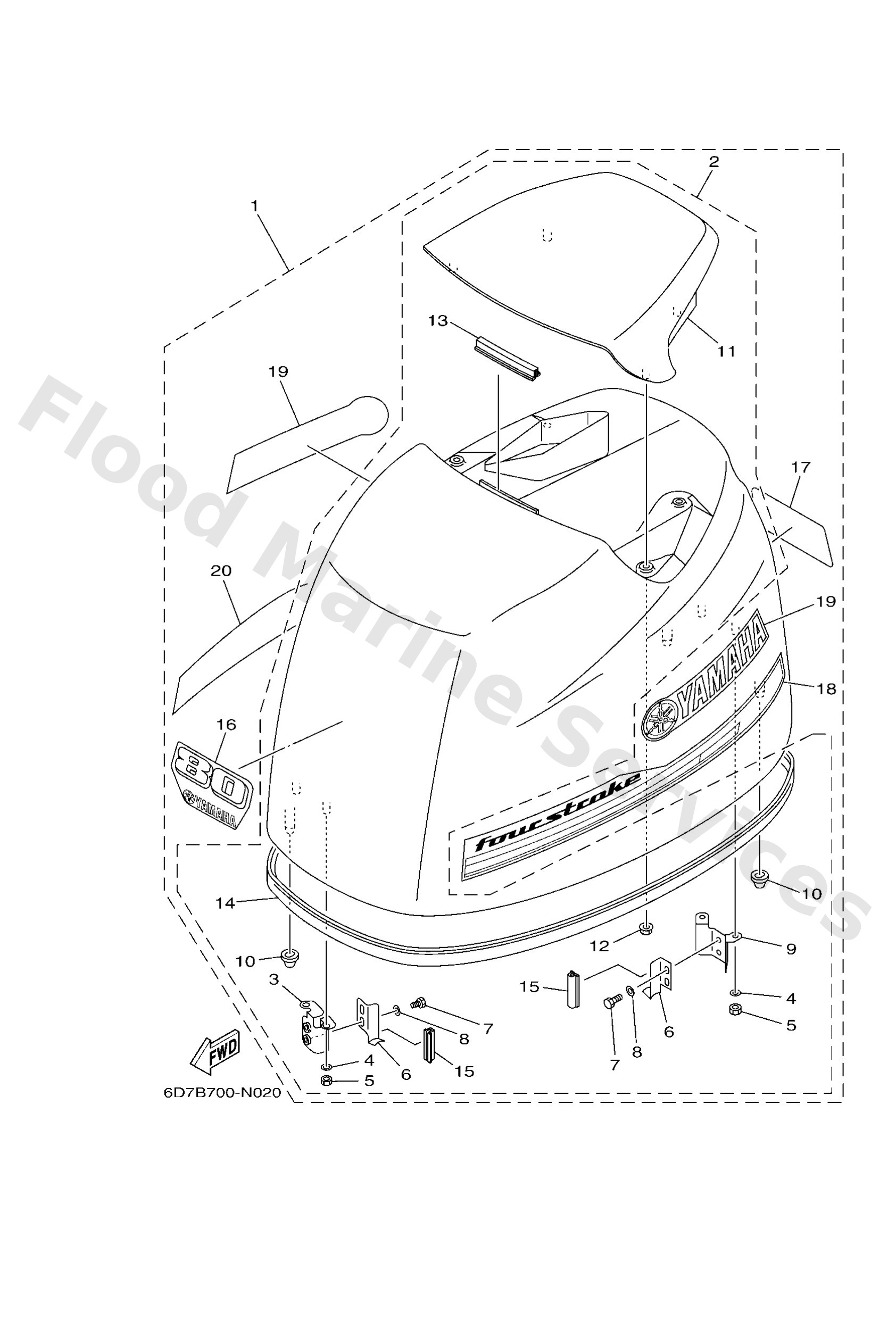

Diagram: TOP COWLING
Parts List
Top Cowling assembly
Diagram Reference: 1
Top cowling assembly
Diagram Reference: 1
Top cowling w/o graphics
Diagram Reference: 2
Holder, clamp band
Diagram Reference: 3
Washer(6a1)
Diagram Reference: 4
Nut(661)
Diagram Reference: 5
Hook
Diagram Reference: 6
Bolt(gh1)
Diagram Reference: 7
Washer, plain (646)
Diagram Reference: 8
Holder, clamp band
Diagram Reference: 9
Damper
Diagram Reference: 10
Molding, air duct
Diagram Reference: 11
Nut(6j8)
Diagram Reference: 12
Seal
Diagram Reference: 13
Seal
Diagram Reference: 14
Seal
Diagram Reference: 15
Graphic, front
Diagram Reference: 16
Graphic, front
Diagram Reference: 16
Graphic, rear
Diagram Reference: 17
Graphic, rear
Diagram Reference: 17
Graphic, side 1
Diagram Reference: 18
Mark, cowling
Diagram Reference: 19
Graphic, side 2
Diagram Reference: 20
