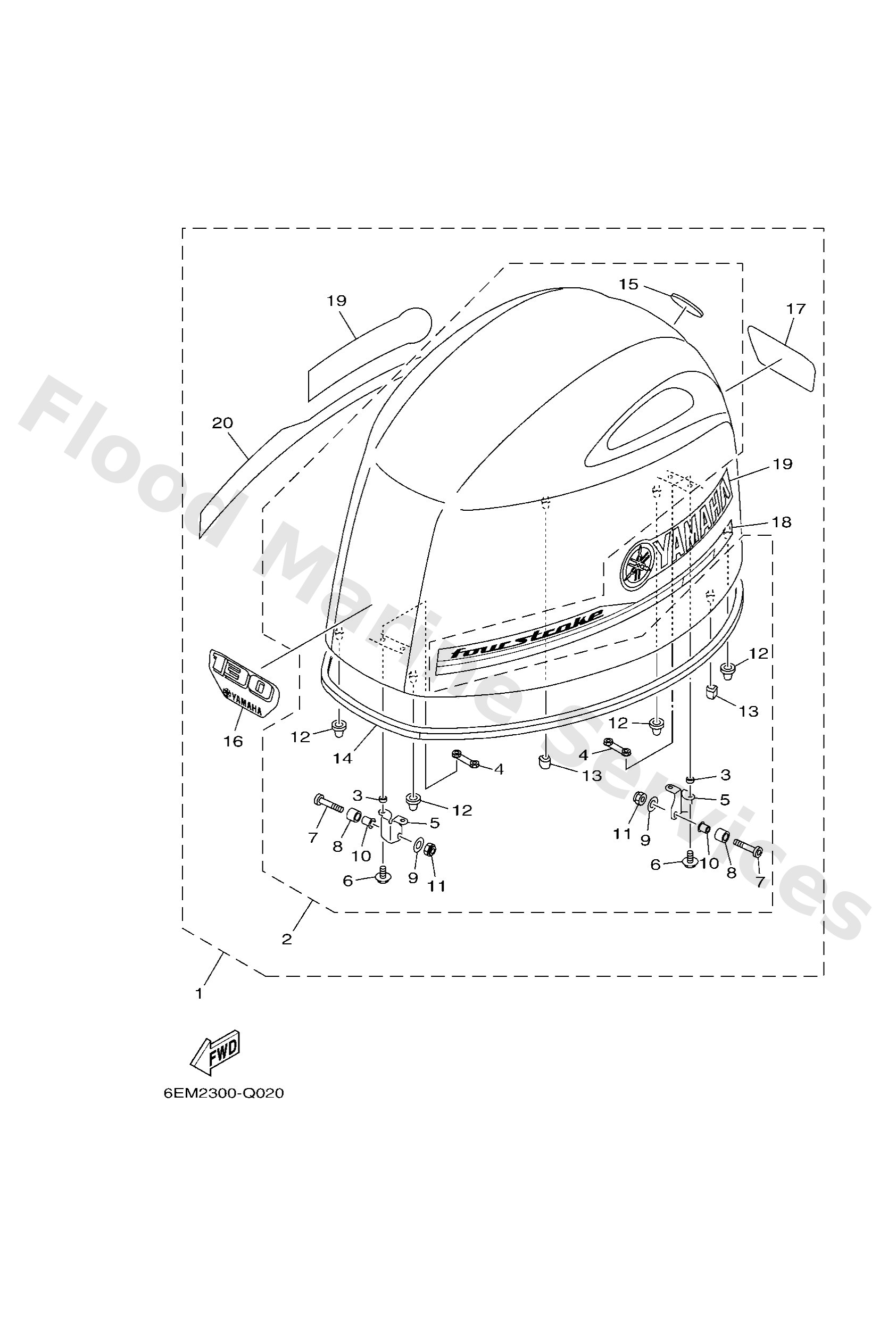

Diagram: TOP COWLING
Parts List
Top cowling assembly
Diagram Reference: 1
Top cowling w/o graphics
Diagram Reference: 2
Collar
Diagram Reference: 3
Plate, clamp
Diagram Reference: 4
Holder, clamp band
Diagram Reference: 5
Bolt, flange
Diagram Reference: 6
Bolt,hex. socket button
Diagram Reference: 7
Collar
Diagram Reference: 8
Washer, plain (663)
Diagram Reference: 9
Coller (6f5)
Diagram Reference: 10
Nut, nylon (6j8)
Diagram Reference: 11
Damper 2
Diagram Reference: 12
Damper
Diagram Reference: 13
Seal
Diagram Reference: 14
Tuning fork mark
Diagram Reference: 15
Graphic, front
Diagram Reference: 16
Graphic, rear
Diagram Reference: 17
Graphic, side 1
Diagram Reference: 18
Mark, cowling
Diagram Reference: 19
Graphic, side 2
Diagram Reference: 20
