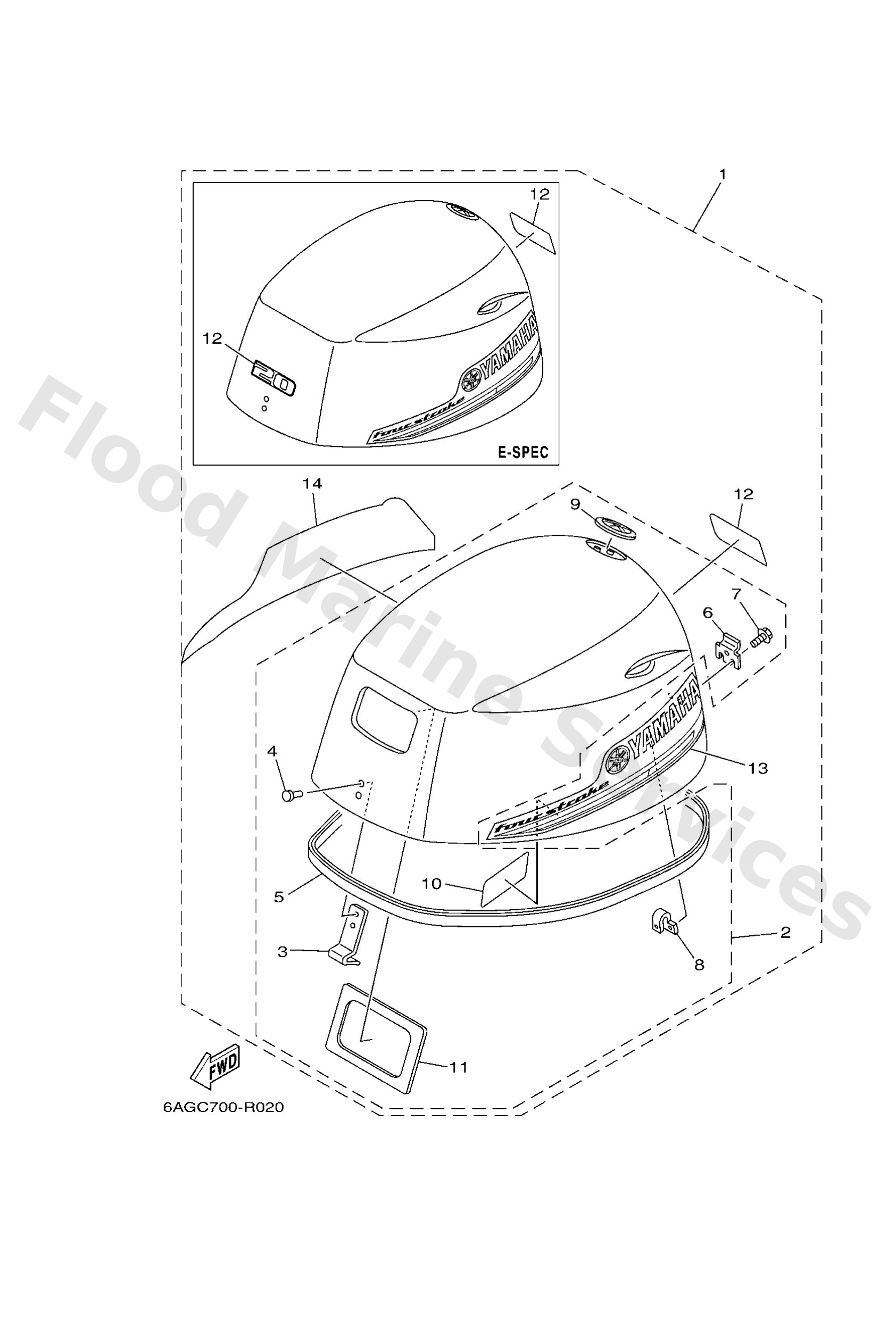

Diagram: TOP COWLING
Parts List
Top cowling assembly
Diagram Reference: 1
Top cowling assembly
Diagram Reference: 1
Top cowling assembly
Diagram Reference: 1
Top cowling assembly
Diagram Reference: 1
Top cowling w/o graphics
Diagram Reference: 2
Top cowling w/o graphics
Diagram Reference: 2
Hook
Diagram Reference: 3
Rivet (697)
Diagram Reference: 4
Seal
Diagram Reference: 5
Hook
Diagram Reference: 6
Bolt, w/ plain
Diagram Reference: 7
Holder, clamp band
Diagram Reference: 8
Tuning fork mark
Diagram Reference: 9
Protector
Diagram Reference: 10
Protector, rubber seal
Diagram Reference: 11
Graphic, front
Diagram Reference: 12
Graphic, front
Diagram Reference: 12
Graphic, side 1
Diagram Reference: 13
Graphic, side 2
Diagram Reference: 14
