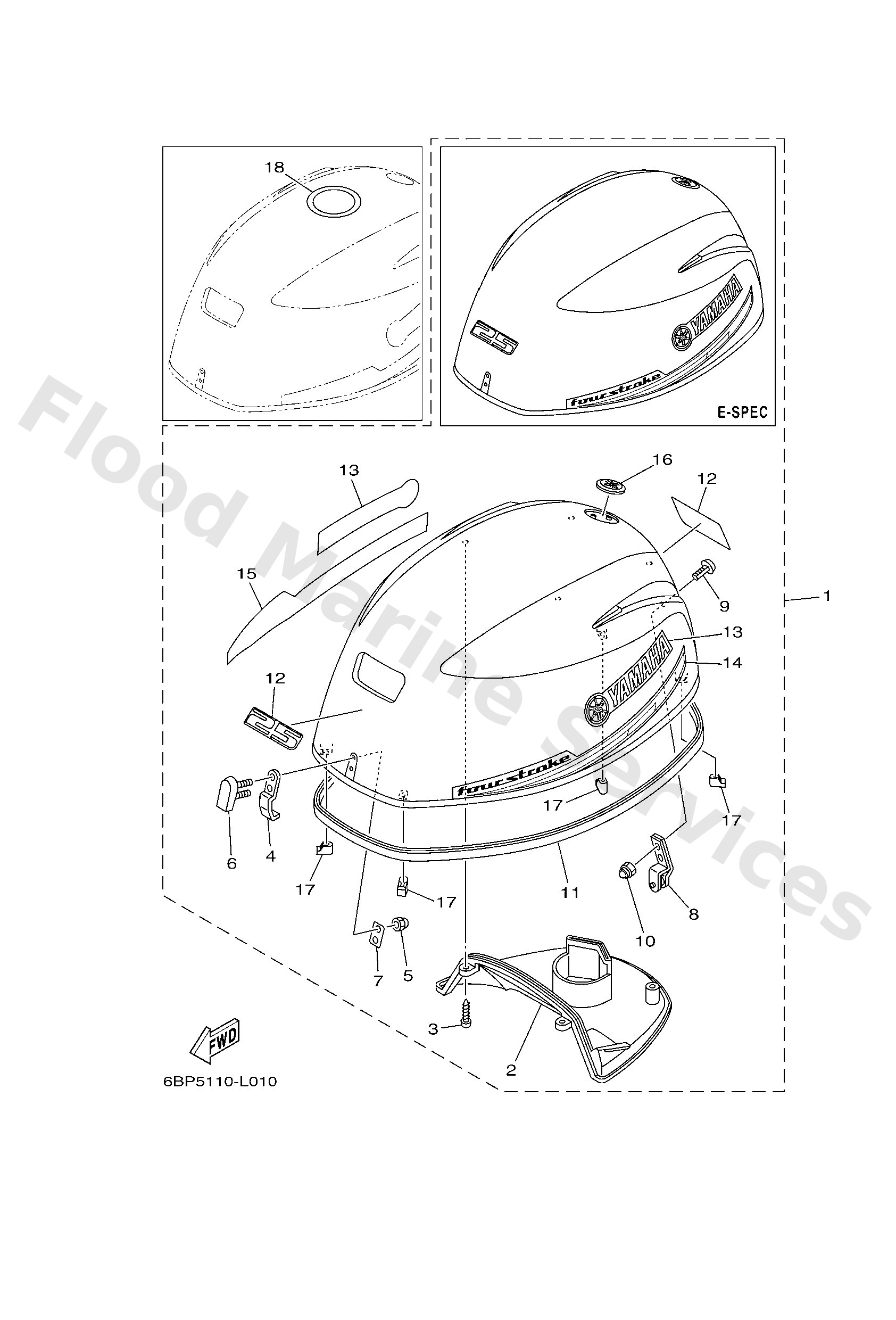

Diagram: TOP COWLING

Diagram

Parts List

6BP4261041
Top cowling assembly (6bp-41)
Diagram Reference: 1
Get Part
6BP4261051
Top cowling assembly
Diagram Reference: 1
Get Part
6BL4261300
Molding, air duct
Diagram Reference: 2
Get Part
9016705017
Screw, tapping
Diagram Reference: 3
Get Part
6BL4265100
Hook
Diagram Reference: 4
Get Part
9538005800
Nut(j44)
Diagram Reference: 5
Get Part
6BG4285100
Cover, clamp
Diagram Reference: 6
Get Part
6BG4264900
Holder, clamp band
Diagram Reference: 7
Get Part
6BL4265200
Hook
Diagram Reference: 8
Get Part
9010906047
Bolt
Diagram Reference: 9
Get Part
9018506M05
Nut, self-locking(6e9)
Diagram Reference: 10
Get Part
6CJ4261500
Seal
Diagram Reference: 11
Get Part
6BP4267710
Graphic, front
Diagram Reference: 12
Get Part
6BP4268100
Mark, cowling
Diagram Reference: 13
Get Part
6BP4267510
Graphic, side 1
Diagram Reference: 14
Get Part
6BP4267610
Graphic, side 2
Diagram Reference: 15
Get Part
6AH4269710
Tuning fork mark
Diagram Reference: 16
Get Part
6BG4266200
Damper
Diagram Reference: 17
Get Part
67F1343420
Label, Caution
Diagram Reference: 18
Get Part
