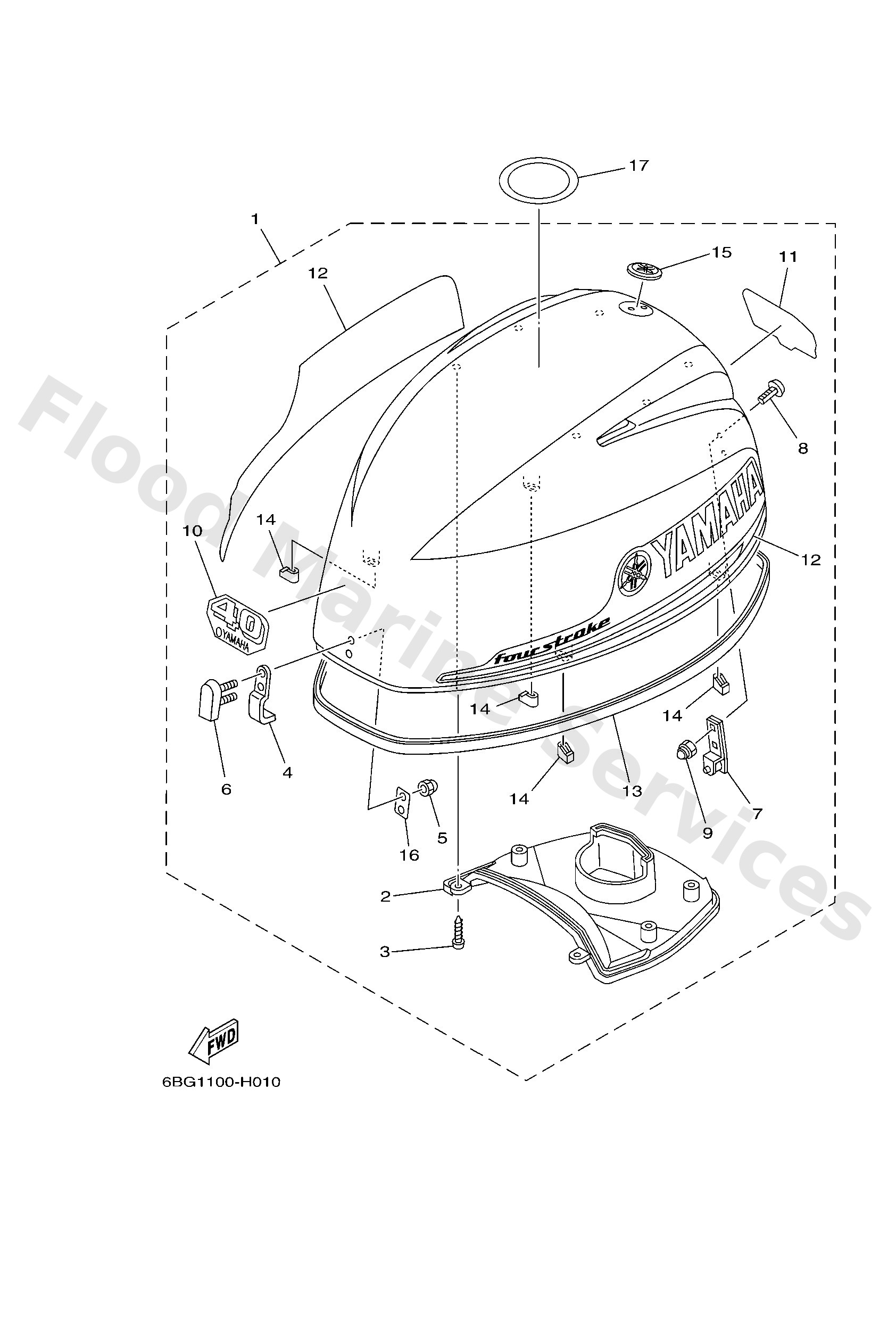

Diagram: TOP COWLING

Diagram

Parts List

6BT42610008D (F30B)
Top cowling assembly
Diagram Reference: 1
Get Part
6BG42610008D (F40F)
Top cowling assembly
Diagram Reference: 1
Get Part
6BG4261300
Molding, air duct
Diagram Reference: 2
Get Part
9778050616
Screw, pan head tapping (ak5)
Diagram Reference: 3
Get Part
6BG4265100
Hook
Diagram Reference: 4
Get Part
9538005800
Nut(j44)
Diagram Reference: 5
Get Part
6BG4285100
Cover, clamp
Diagram Reference: 6
Get Part
6BG4265200
Hook
Diagram Reference: 7
Get Part
9010906047
Bolt
Diagram Reference: 8
Get Part
9018506M05
Nut, self-locking(6e9)
Diagram Reference: 9
Get Part
6BG4267700 (F40F)
Graphic, front
Diagram Reference: 10
Get Part
6BG4267710 (F30B)
Graphic, front
Diagram Reference: 10
Get Part
6BG4267800 (F40F)
Graphic, front
Diagram Reference: 11
Get Part
6BT4267800 (F30B)
Graphic, rear
Diagram Reference: 11
Get Part
6BGW007000
Graphic set
Diagram Reference: 12
Get Part
6BG4261500
Seal
Diagram Reference: 13
Get Part
6BG4266200
Damper
Diagram Reference: 14
Get Part
6AH4269701
Tuning fork mark
Diagram Reference: 15
Get Part
6BG4264900
Holder, clamp band
Diagram Reference: 16
Get Part
67F1343410
ラベル , コーシヨン
Diagram Reference: 17
