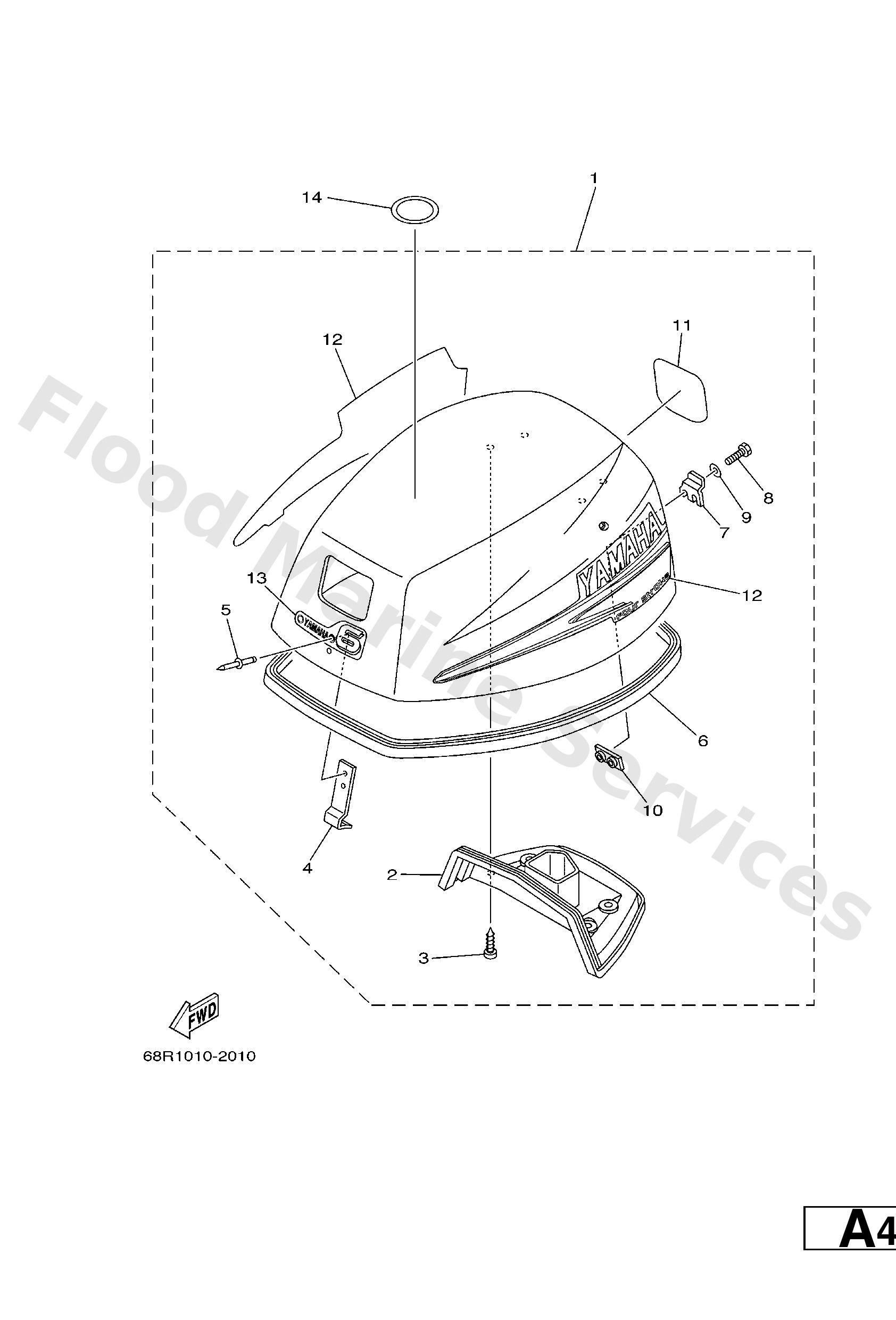

Diagram: TOP COWLING

Diagram

Parts List

68T42610604D (F8C)
Top Cowling assembly
Diagram Reference: 1
Get Part
68R42610604D (F6A,F6B)
Top Cowling assembly
Diagram Reference: 1
Get Part
68T4261300
Molding, Air Duct
Diagram Reference: 2
Get Part
9778060516
Screw, panhead tapping (j20)
Diagram Reference: 3
Get Part
6G14265102
Hook
Diagram Reference: 4
Get Part
9026604M04
Rivet(6e7)
Diagram Reference: 5
Get Part
68T4261500
Seal
Diagram Reference: 6
Get Part
68T4265200
Hook
Diagram Reference: 7
Get Part
9709505016
Bolt(6a1)
Diagram Reference: 8
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 9
Get Part
68T4264900
Holder, clamp band
Diagram Reference: 10
Get Part
68R4267820 (F6A,F6B)
Graphic, rear
Diagram Reference: 11
Get Part
68T4267820 (F8C)
Graphic, rear
Diagram Reference: 11
Get Part
68TW007060
Graphic set
Diagram Reference: 12
Get Part
68R4267700 (F6A,F6B)
Graphic, Front
Diagram Reference: 13
Get Part
68T4267700 (F8C)
Graphic, front
Diagram Reference: 13
Get Part
67F1343402
Label, Caution
Diagram Reference: 14
