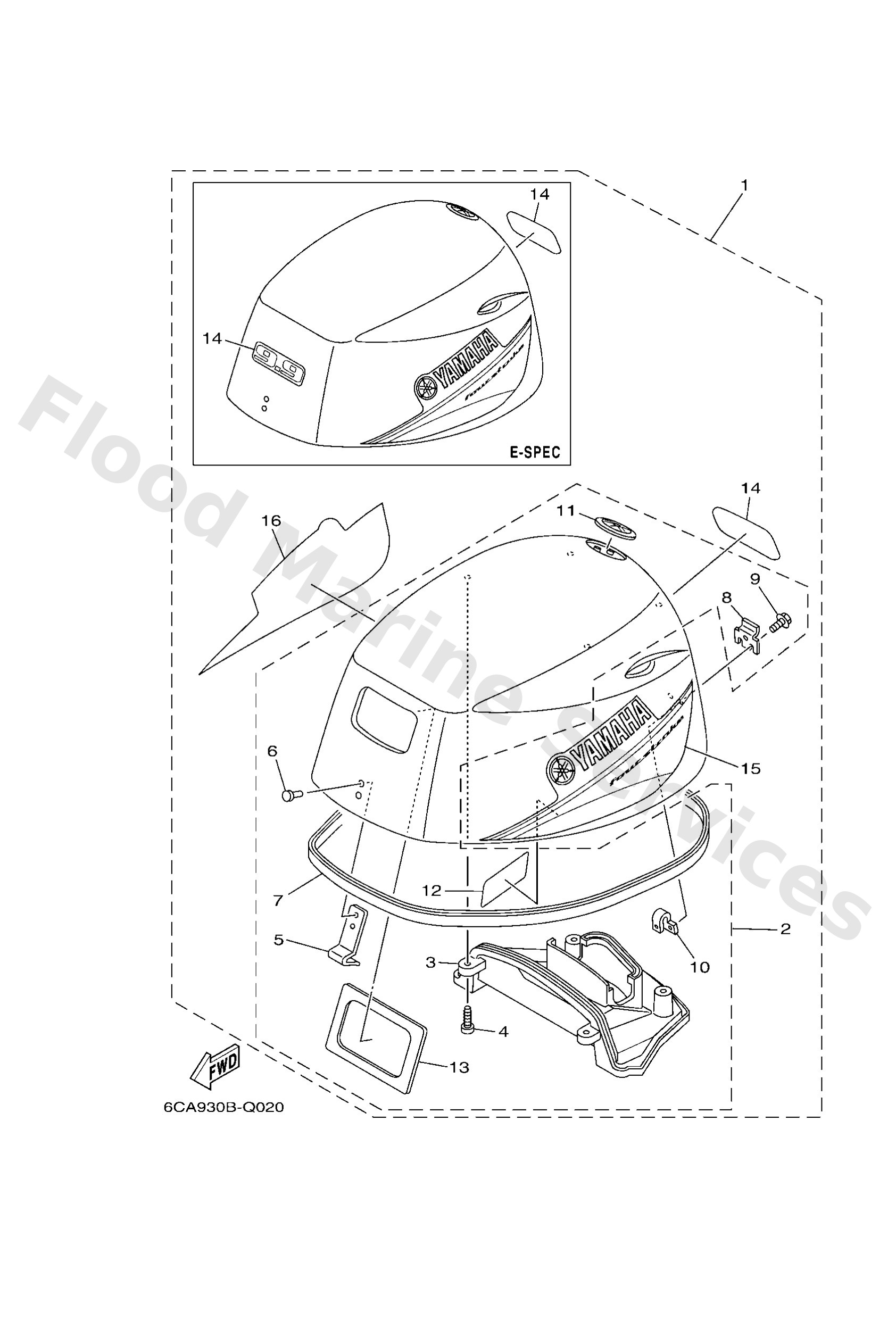

Diagram: TOP COWLING

Diagram

Parts List

6CA4261030
Top cowling assembly (black)
Diagram Reference: 1
Get Part
6CA4261020
Top cowling assembly (black)
Diagram Reference: 1
Get Part
6CA4261A00
Top cowling w/o graphics
Diagram Reference: 2
Get Part
6CA4261A10
Top cowling w/o graphics
Diagram Reference: 2
Get Part
6AH42613A0
Molding, air duct
Diagram Reference: 3
Get Part
9016705017
Screw, tapping
Diagram Reference: 4
Get Part
6AH4265100
Hook
Diagram Reference: 5
Get Part
9026606M02
Rivet (697)
Diagram Reference: 6
Get Part
6AH4261500
Seal
Diagram Reference: 7
Get Part
60R4265200
Hook
Diagram Reference: 8
Get Part
9759505514
Bolt, w/ plain
Diagram Reference: 9
Get Part
6AH4264900
Holder, clamp band
Diagram Reference: 10
Get Part
6AH4269710
Tuning fork mark
Diagram Reference: 11
Get Part
6AH4273500
Protector
Diagram Reference: 12
Get Part
6AH4265600
Protector, rubber seal
Diagram Reference: 13
Get Part
6EA42677V0
Graphic, front
Diagram Reference: 14
Get Part
6CA42675V0
Graphic, side 1
Diagram Reference: 15
Get Part
6CA42676V0
Graphic, side 2
Diagram Reference: 16
