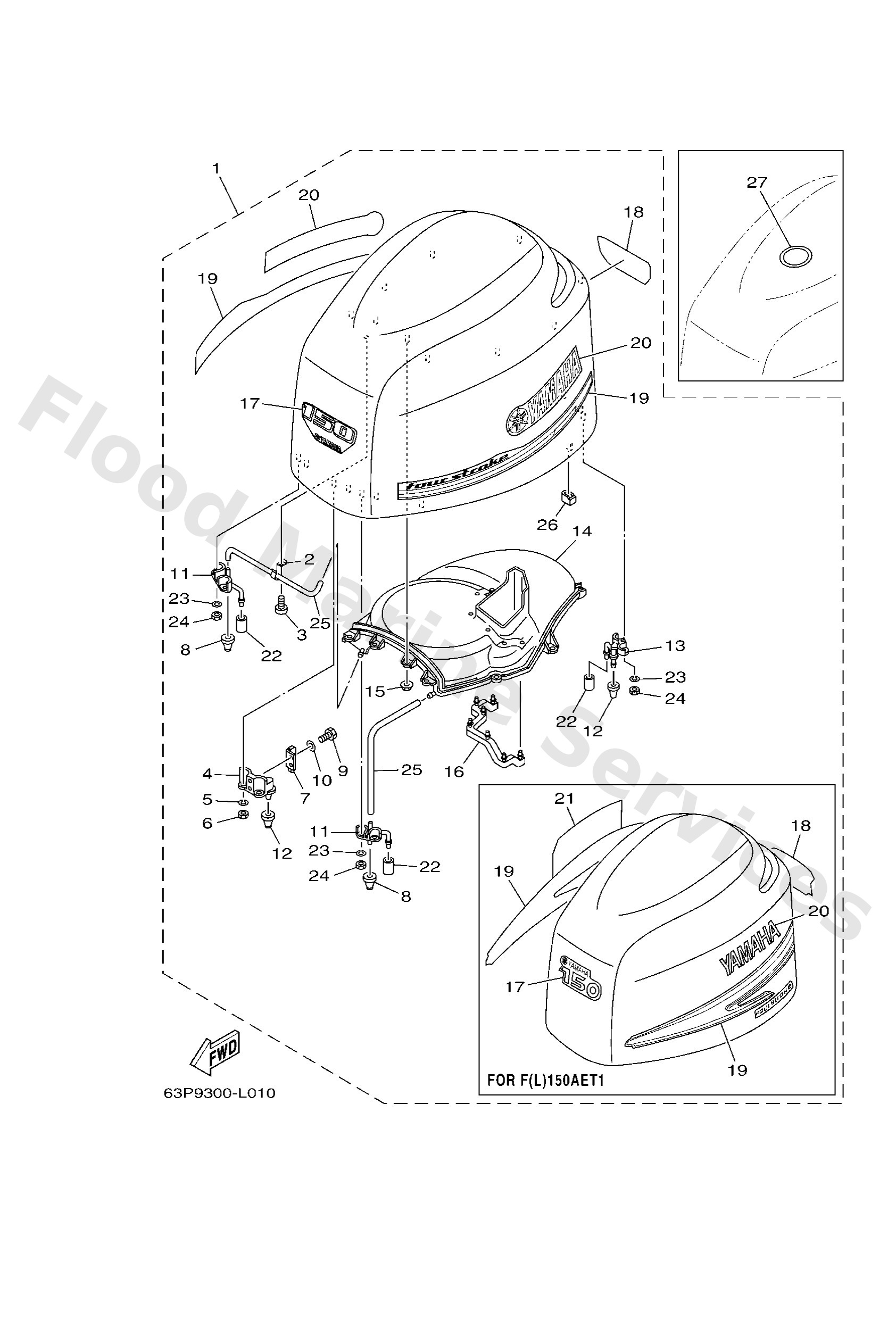

Diagram: TOP COWLING

Diagram

Parts List

63P4261001 (FOR F(L)150AET1)
Top cowling assembly
Diagram Reference: 1
Get Part
63P4261040 (FOR F(L)150AET)
Top cowling assembly
Diagram Reference: 1
Get Part
9046510032
Clamp
Diagram Reference: 2
Get Part
9778050620
Screw, tapping
Diagram Reference: 3
Get Part
63P4264700
Holder, clamp band
Diagram Reference: 4
Get Part
9299006100
Washer(6a1)
Diagram Reference: 5
Get Part
9538006600
Nut(661)
Diagram Reference: 6
Get Part
60V4265101
Hook
Diagram Reference: 7
Get Part
69J4266300
Damper 2
Diagram Reference: 8
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
63P4264301
Plate, clamp
Diagram Reference: 11
Get Part
68F4266300
Damper 2
Diagram Reference: 12
Get Part
63P4264400
Plate, clamp 2
Diagram Reference: 13
Get Part
63P4261300
Molding, air duct
Diagram Reference: 14
Get Part
9017906M24
Nut(6j8)
Diagram Reference: 15
Get Part
63P4261700
Damper, form
Diagram Reference: 16
Get Part
63P4267700 (FOR 63P-42610-01)
Graphic, front
Diagram Reference: 17
Get Part
63P4267740 (FOR 63P-42610-40)
Graphic, front
Diagram Reference: 17
Get Part
63P4267840 (FOR 63P-42610-40)
Graphic, rear
Diagram Reference: 18
Get Part
63P4267800 (FOR 63P-42610-01)
Graphic, rear
Diagram Reference: 18
Get Part
63PW007020 (FOR 63P-42610-40)
Graphic Set
Diagram Reference: 19
Get Part
63PW007000 (FOR 63P-42610-01)
Graphic set
Diagram Reference: 19
Get Part
63P4268120 (FOR 63P-42610-40)
Mark, cowling
Diagram Reference: 20
Get Part
63P4268100 (FOR 63P-42610-01)
Mark, cowling
Diagram Reference: 20
Get Part
63P4268200 (FOR 63P-42610-01)
Mark, cowling
Diagram Reference: 21
Get Part
67F1344800
Cap
Diagram Reference: 22
Get Part
9044511020
Hose (l400)
Diagram Reference: 25
Get Part
63P4266200
Damper
Diagram Reference: 26
Get Part
67F1343420
Label, Caution
Diagram Reference: 27
