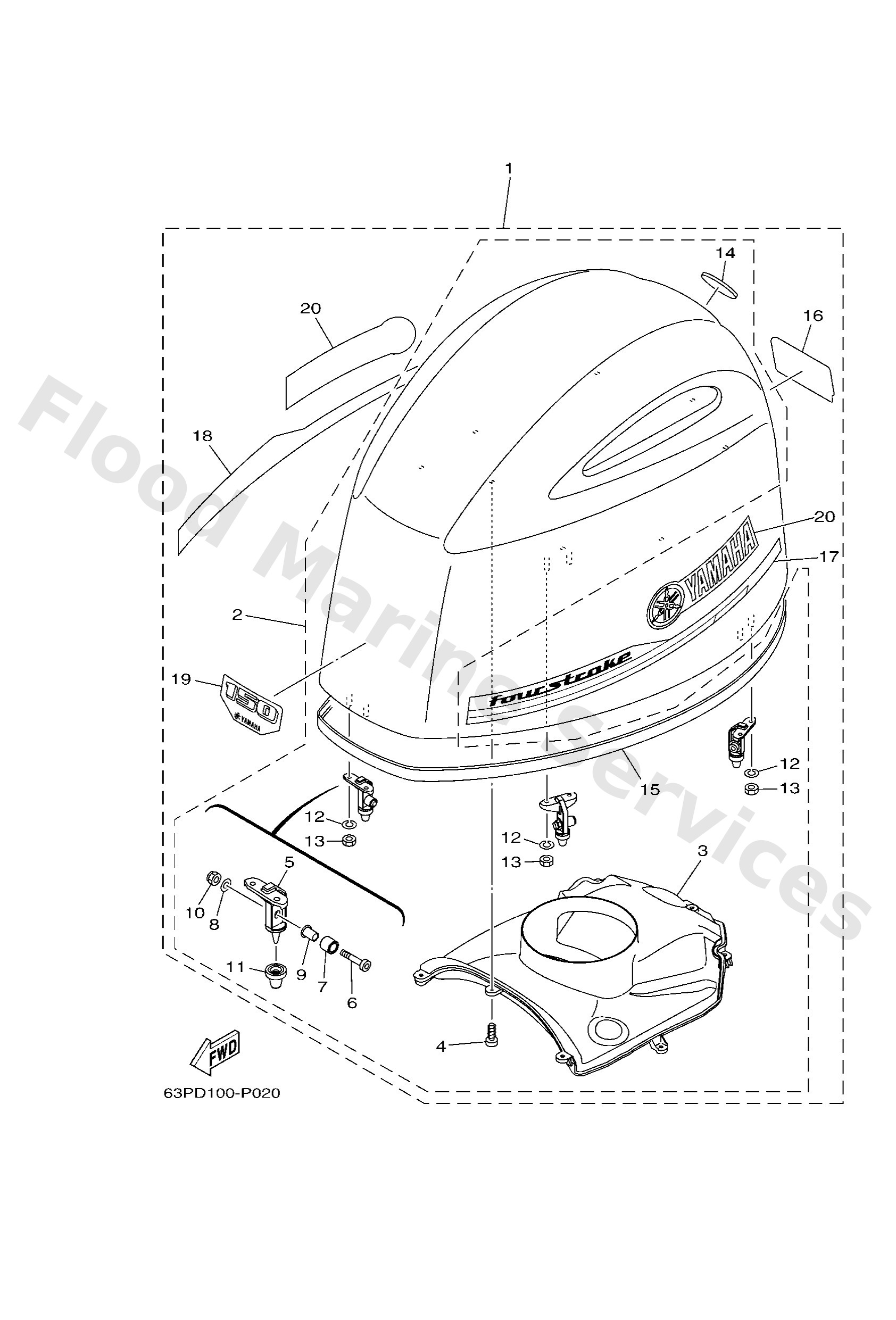

Diagram: TOP COWLING
Parts List
Top cowling assembly
Diagram Reference: 1
Top cowling w/o graphics
Diagram Reference: 2
Molding, air duct
Diagram Reference: 3
Screw, tapping
Diagram Reference: 4
Holder, clamp band
Diagram Reference: 5
Bolt,hex. socket button
Diagram Reference: 6
Collar
Diagram Reference: 7
Washer, plain (663)
Diagram Reference: 8
Coller (6f5)
Diagram Reference: 9
Nut, nylon (6j8)
Diagram Reference: 10
Damper 2
Diagram Reference: 11
Washer(6a1)
Diagram Reference: 12
Nut(661)
Diagram Reference: 13
Tuning fork mark
Diagram Reference: 14
Seal
Diagram Reference: 15
Graphic, rear
Diagram Reference: 16
Graphic, side 1
Diagram Reference: 17
Graphic, side 2
Diagram Reference: 18
Graphic, front
Diagram Reference: 19
Mark, cowling
Diagram Reference: 20
