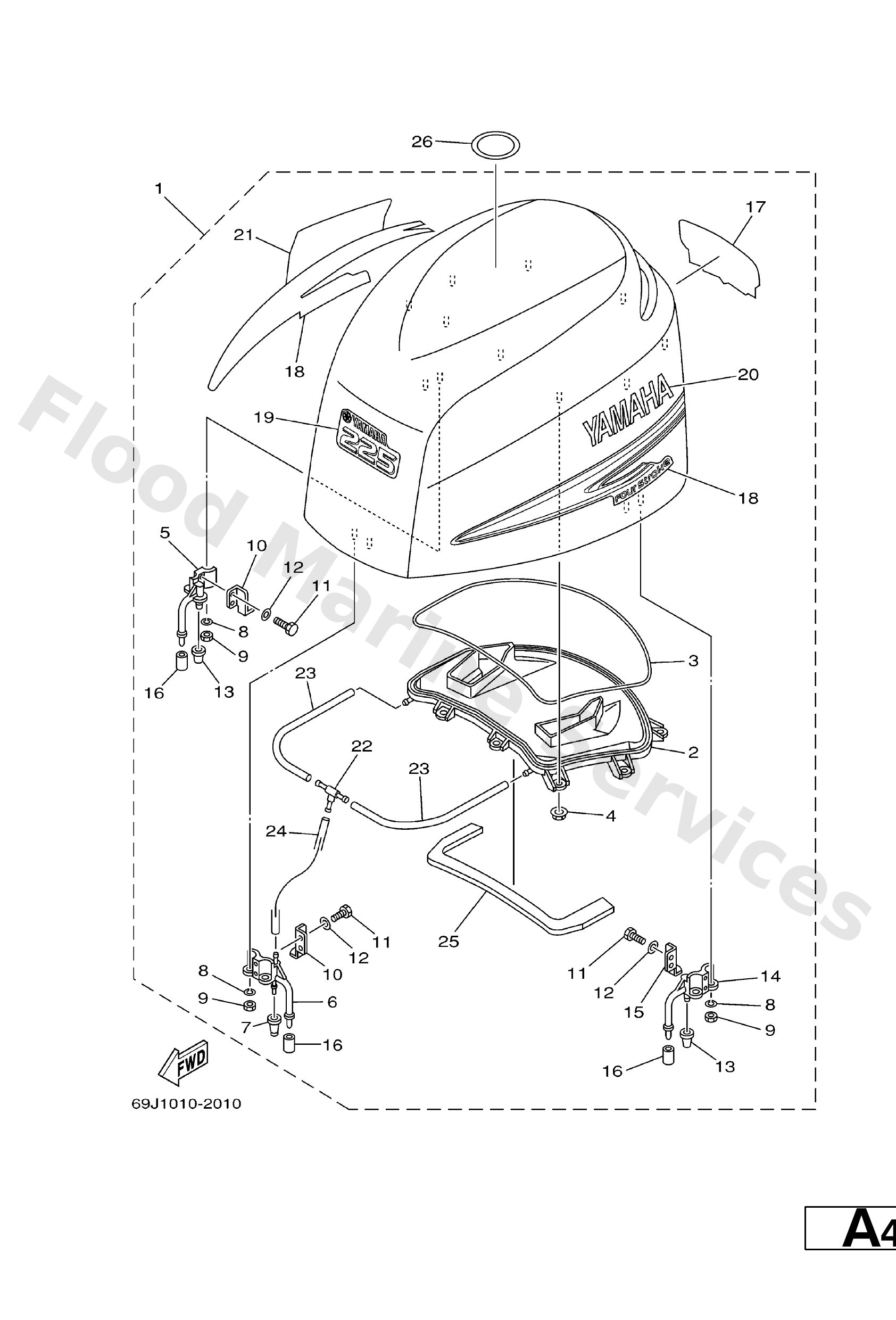

Diagram: TOP COWLING

Diagram

Parts List

69J42610008D
Top cowling assembly
Diagram Reference: 1
Get Part
69J4261300
Molding, air duct
Diagram Reference: 2
Get Part
69J4262900
Seal
Diagram Reference: 3
Get Part
9017906M28
Nut(63v)
Diagram Reference: 4
Get Part
68F426470194
Holder, clamp band
Diagram Reference: 5
Get Part
69J426470094
Holder, clamp band
Diagram Reference: 6
Get Part
69J4266300
Damper 2
Diagram Reference: 7
Get Part
9299006100
Washer(6a1)
Diagram Reference: 8
Get Part
9538006600
Nut(661)
Diagram Reference: 9
Get Part
68F4265100
Hook
Diagram Reference: 10
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
68F4266300
Damper 2
Diagram Reference: 13
Get Part
68F426480194
Holder, clamp band
Diagram Reference: 14
Get Part
67F4265200
Hook
Diagram Reference: 15
Get Part
67F1344800
Cap
Diagram Reference: 16
Get Part
69J4267800
Graphic, rear
Diagram Reference: 17
Get Part
69JW007000
Graphic set
Diagram Reference: 18
Get Part
69J4267700
Graphic, front
Diagram Reference: 19
Get Part
69J4268100
Mark, cowling
Diagram Reference: 20
Get Part
69J4268200
Mark, cowling
Diagram Reference: 21
Get Part
69J2437800
Pipe, joint 4
Diagram Reference: 22
Get Part
9044511020
Hose (l400)
Diagram Reference: 23
Get Part
9044511021
Hose (l310)
Diagram Reference: 24
Get Part
69J4261700
Damper, form
Diagram Reference: 25
Get Part
67F1343402
Label, Caution
Diagram Reference: 26
