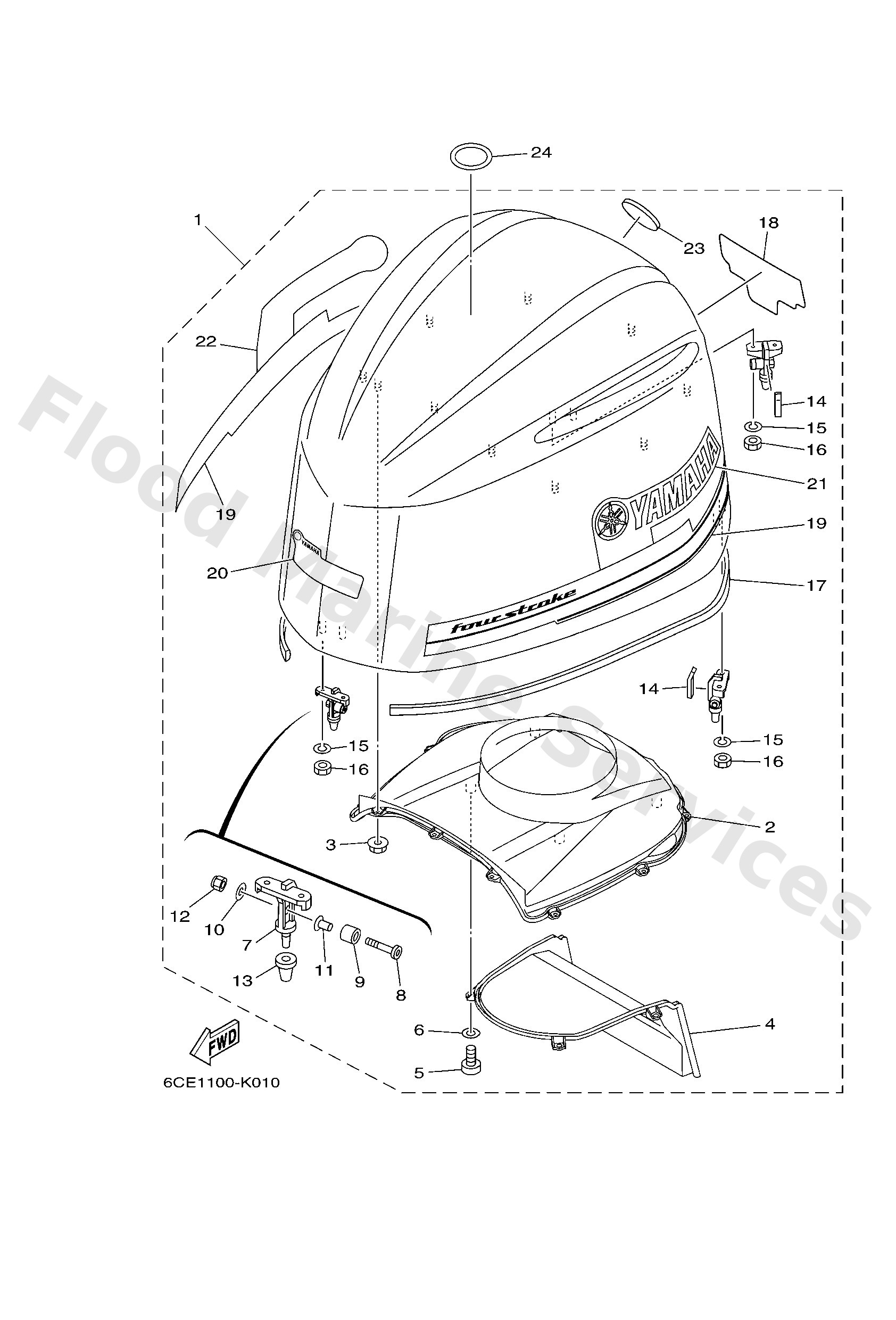

Diagram: TOP COWLING

Diagram

Parts List

6CL4261000
Top cowling assembly (6cl)
Diagram Reference: 1
Get Part
6CE4261300
Molding, air duct
Diagram Reference: 2
Get Part
9017906M28
Nut(63v)
Diagram Reference: 3
Get Part
6CE4263500
Duct, water separator
Diagram Reference: 4
Get Part
9778060516
Screw, panhead tapping (j20)
Diagram Reference: 5
Get Part
9299006200
Ybs66-6 washer, plain
Diagram Reference: 6
Get Part
6CB4264700
Holder, clamp band
Diagram Reference: 7
Get Part
9011108078
Bolt,hex. socket button
Diagram Reference: 8
Get Part
9038710094
Collar
Diagram Reference: 9
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 10
Get Part
9038708M45
Coller (6f5)
Diagram Reference: 11
Get Part
9578008300
Nut, nylon (6j8)
Diagram Reference: 12
Get Part
6AW4266300
Damper 2
Diagram Reference: 13
Get Part
6CB4213400
Cover
Diagram Reference: 14
Get Part
9299006100
Washer(6a1)
Diagram Reference: 15
Get Part
9538006600
Nut(661)
Diagram Reference: 16
Get Part
6CB4262800
Seal
Diagram Reference: 17
Get Part
6CL4267800
Graphic, rear
Diagram Reference: 18
Get Part
6CEW007000
Graphic set
Diagram Reference: 19
Get Part
6CL4267700
Graphic, front
Diagram Reference: 20
Get Part
6CE4268101
Mark, cowling
Diagram Reference: 21
Get Part
6CE4268201
Mark, cowling
Diagram Reference: 22
Get Part
6AW4269710
Tuning fork mark
Diagram Reference: 23
Get Part
67F1343420
Label, Caution
Diagram Reference: 24
