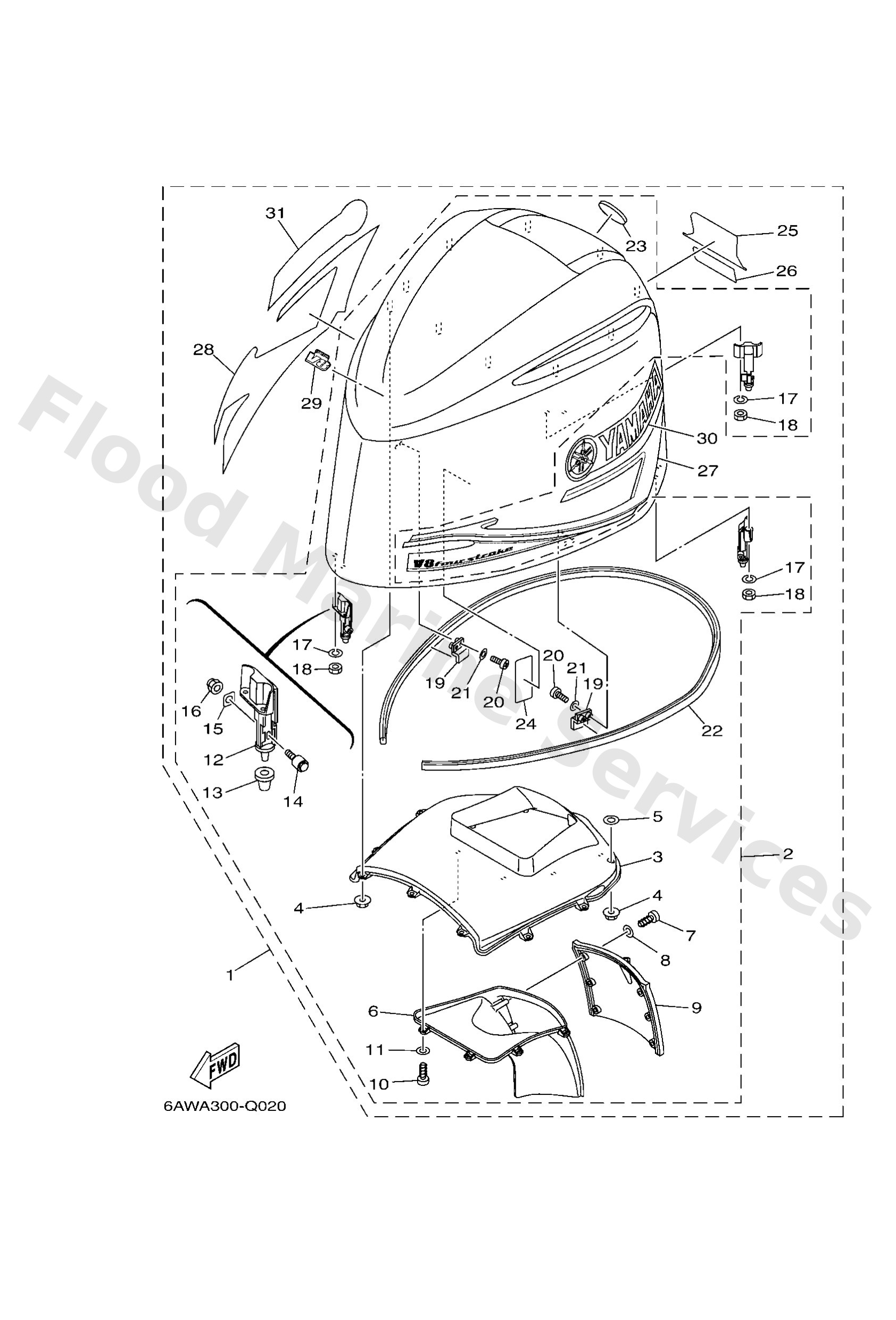

Diagram: TOP COWLING

Diagram

Parts List

6AW4261030
Top cowling assembly
Diagram Reference: 1
Get Part
6AW4261A00
Top cowling w/o graphics
Diagram Reference: 2
Get Part
6AW4261300
Molding, air duct
Diagram Reference: 3
Get Part
9017906M28
Nut(63v)
Diagram Reference: 4
Get Part
6CB4254500
Washer, plain
Diagram Reference: 5
Get Part
6AW4263500
Duct, water separator
Diagram Reference: 6
Get Part
9778060516
Screw, panhead tapping (j20)
Diagram Reference: 7
Get Part
9299506200
Ybs66-6 washer, plain
Diagram Reference: 8
Get Part
6AW4253200
Cover
Diagram Reference: 9
Get Part
6AW42647009S
Holder, clamp band
Diagram Reference: 12
Get Part
6AW4266300
Damper 2
Diagram Reference: 13
Get Part
6AW4264A00
Hook assembly
Diagram Reference: 14
Get Part
6AW4264610
Plate, clamp
Diagram Reference: 15
Get Part
9578008300
Nut, nylon (6j8)
Diagram Reference: 16
Get Part
9299006100
Washer(6a1)
Diagram Reference: 17
Get Part
9538006600
Nut(661)
Diagram Reference: 18
Get Part
6AW4247700
Plate, lock
Diagram Reference: 19
Get Part
9788505010
Screw, pan head(62x)
Diagram Reference: 20
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 21
Get Part
6AW4262820
Seal
Diagram Reference: 22
Get Part
6AW4269710
Tuning fork mark
Diagram Reference: 23
Get Part
6AH4273500
Protector
Diagram Reference: 24
Get Part
6AW4267810
Graphic, rear
Diagram Reference: 25
Get Part
6AW4267A00
Graphic, rear 2
Diagram Reference: 26
Get Part
6AW4267510
Graphic, side 1
Diagram Reference: 27
Get Part
6AW4267610
Graphic, side 2
Diagram Reference: 28
Get Part
6AW4267710
Graphic, front
Diagram Reference: 29
Get Part
6AW4268110
Mark, cowling
Diagram Reference: 30
Get Part
6AW4268210
Mark, cowling
Diagram Reference: 31
