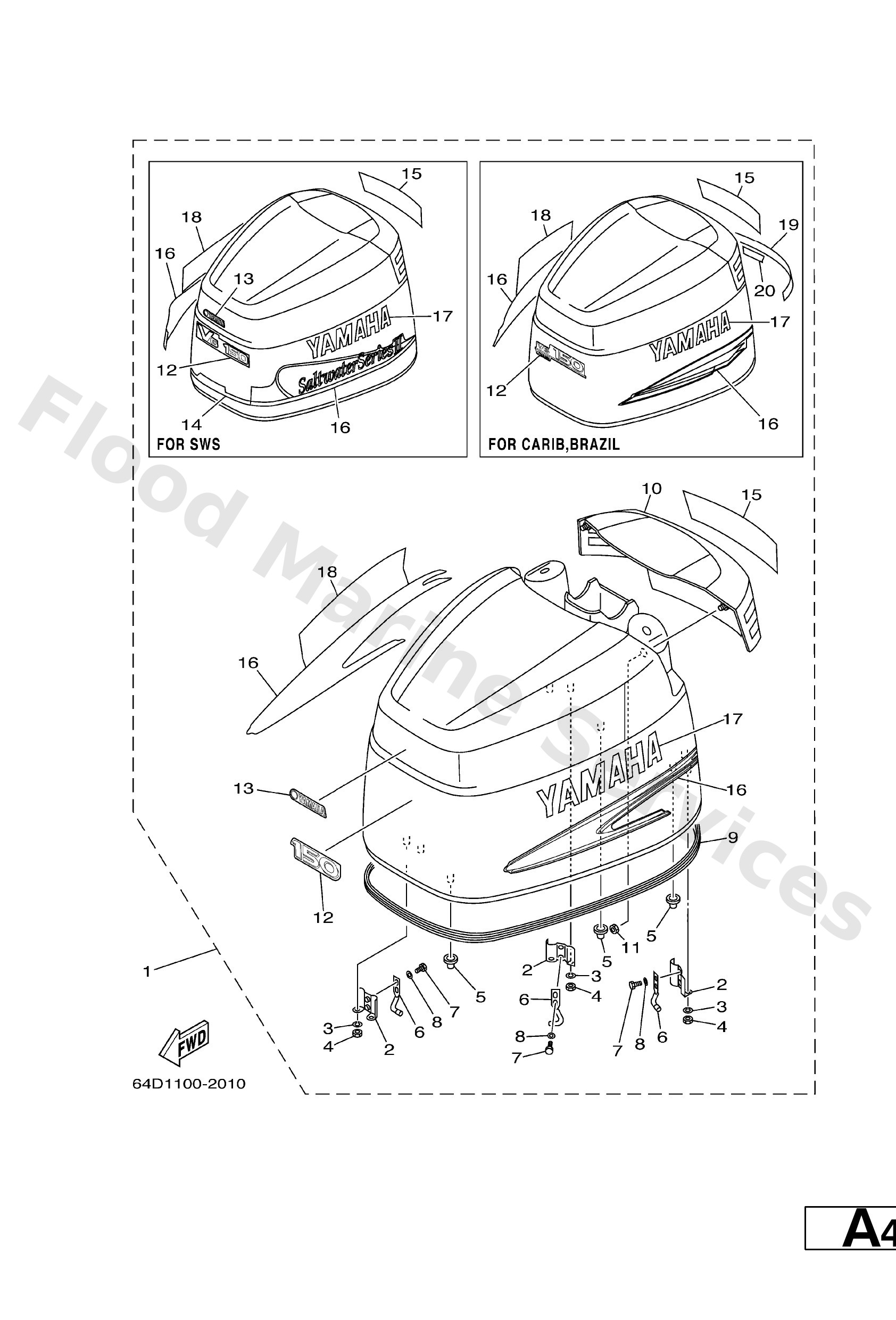

Diagram: TOP COWLING

Diagram

Parts List

6R3−42647−00

Holder, clamp band

Diagram Reference: 2

92990−06100

Washer(6a1)

Diagram Reference: 3

95380−06600

Nut(661)

Diagram Reference: 4

64D−42662−00

Damper

Diagram Reference: 5

64D−42814−00

Hook, clamp

Diagram Reference: 6

97095−06012

Bolt(gh1)

Diagram Reference: 7

92995−06600

Washer, plain (646)

Diagram Reference: 8

64D−42615−00

Seal

Diagram Reference: 9

90179−06M24

Nut(6j8)

Diagram Reference: 11

64C−42677−60 (FOR USA)

Graphic, front

Diagram Reference: 12

64D−42677−40 (FOR SWS)

Graphic, front

Diagram Reference: 12

64C−42677−40 (FOR SWS)

Graphic, front

Diagram Reference: 12

64C−42677−50 (FOR CARIB,BRAZIL)

Graphic, front

Diagram Reference: 12

64C−42677−80 (FOR USA)

Graphic, front

Diagram Reference: 13

64D−42677−B0 (FOR SWS)

Graphic, front

Diagram Reference: 13

64D−42677−S0 (FOR SWS)

Graphic, Front

Diagram Reference: 14

64C−42687−40 (FOR USA)

Emblem, Rear

Diagram Reference: 15

64D−42687−00 (FOR SWS)

Emblem, rear

Diagram Reference: 15

64C−42687−00 (FOR SWS)

Emblem, Rear

Diagram Reference: 15

64C−42687−30 (FOR CARIB,BRAZIL)

Emblem, Rear

Diagram Reference: 15

64C−W0070−50 (FOR USA)

1−

Diagram Reference: 16

64D−W0070−30 (FOR CARIB,BRAZIL)

1−

Diagram Reference: 16

64D−W0070−S0 (FOR SWS)

1−

Diagram Reference: 16

64C−42681−50 (FOR USA)

Mark, Cowling

Diagram Reference: 17

64C−42681−30 (FOR CARIB,BRAZIL)

Mark, cowling

Diagram Reference: 17

64D−42681−40 (FOR SWS)

Mark, cowling

Diagram Reference: 17

64C−42682−50 (FOR USA)

Mark, cowling

Diagram Reference: 18

64C−42682−30 (FOR CARIB,BRAZIL)

Mark, cowling

Diagram Reference: 18

64D−42682−40 (FOR SWS)

Mark, cowling

Diagram Reference: 18

64D−4267A−30 (FOR CARIB,BRAZIL)

Graphic, rear 2

Diagram Reference: 19

64D−4267A−S0 (FOR SWS)

Graphic, Rear 2

Diagram Reference: 19

64D−42678−30 (FOR CARIB,BRAZIL)

Graphic, Rear

Diagram Reference: 20
