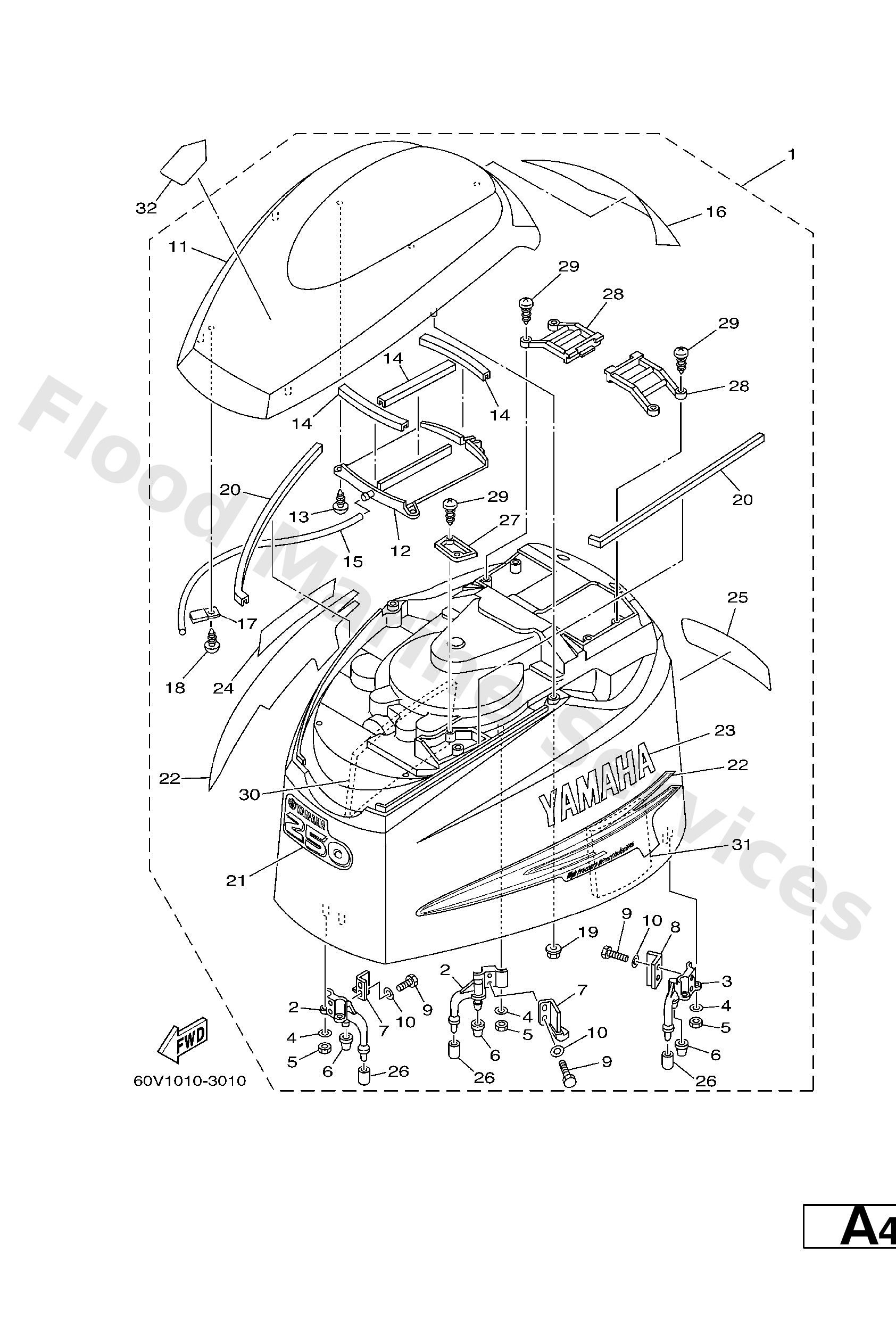

Diagram: TOP COWLING

Diagram

Parts List

60V−42610−00−8D
Top Cowling assembly
Diagram Reference: 1
Get Part
68F−42647−01−94
Holder, clamp band
Diagram Reference: 2
Get Part
68F−42648−01−94
Holder, clamp band
Diagram Reference: 3
Get Part
92990−06100
Washer(6a1)
Diagram Reference: 4
Get Part
95380−06600
Nut(661)
Diagram Reference: 5
Get Part
68F−42663−00
Damper 2
Diagram Reference: 6
Get Part
60V−42651−00
Hook
Diagram Reference: 7
Get Part
60V−42652−00
Hook
Diagram Reference: 8
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 10
Get Part
60V−42613−00−8D
Molding, Air Duct
Diagram Reference: 11
Get Part
60V−42621−00
Mldg, Top
Diagram Reference: 12
Get Part
97780−50616
Screw, pan head tapping (ak5)
Diagram Reference: 13
Get Part
60V−42664−00
Damper
Diagram Reference: 14
Get Part
90445−11M33
Hose (l700)
Diagram Reference: 15
Get Part
60V−42687−00
Emblem, rear
Diagram Reference: 16
Get Part
90462−08018
Clamp
Diagram Reference: 17
Get Part
97780−50612
Screw, tapping(61a)
Diagram Reference: 18
Get Part
90179−06M24
Nut(6j8)
Diagram Reference: 19
Get Part
60V−42662−00
Damper
Diagram Reference: 20
Get Part
60V−42677−00
Graphic, front
Diagram Reference: 21
Get Part
60V−W0070−00
1−
Diagram Reference: 22
Get Part
60V−42681−00
Mark, cowling
Diagram Reference: 23
Get Part
60V−42682−00
Mark, cowling
Diagram Reference: 24
Get Part
60V−42678−00
Graphic, front
Diagram Reference: 25
Get Part
67F−13448−00
Cap
Diagram Reference: 26
Get Part
60V−42626−00
Louver, 1
Diagram Reference: 27
Get Part
60V−42626−10
Louver, 1
Diagram Reference: 28
Get Part
90160−05005
Screw, round tapping
Diagram Reference: 29
Get Part
60V−42637−00
Damper, Form
Diagram Reference: 30
Get Part
60V−42637−10
Damper, Form
Diagram Reference: 31
Get Part
68F−13434−00
Label, Caution
Diagram Reference: 32
