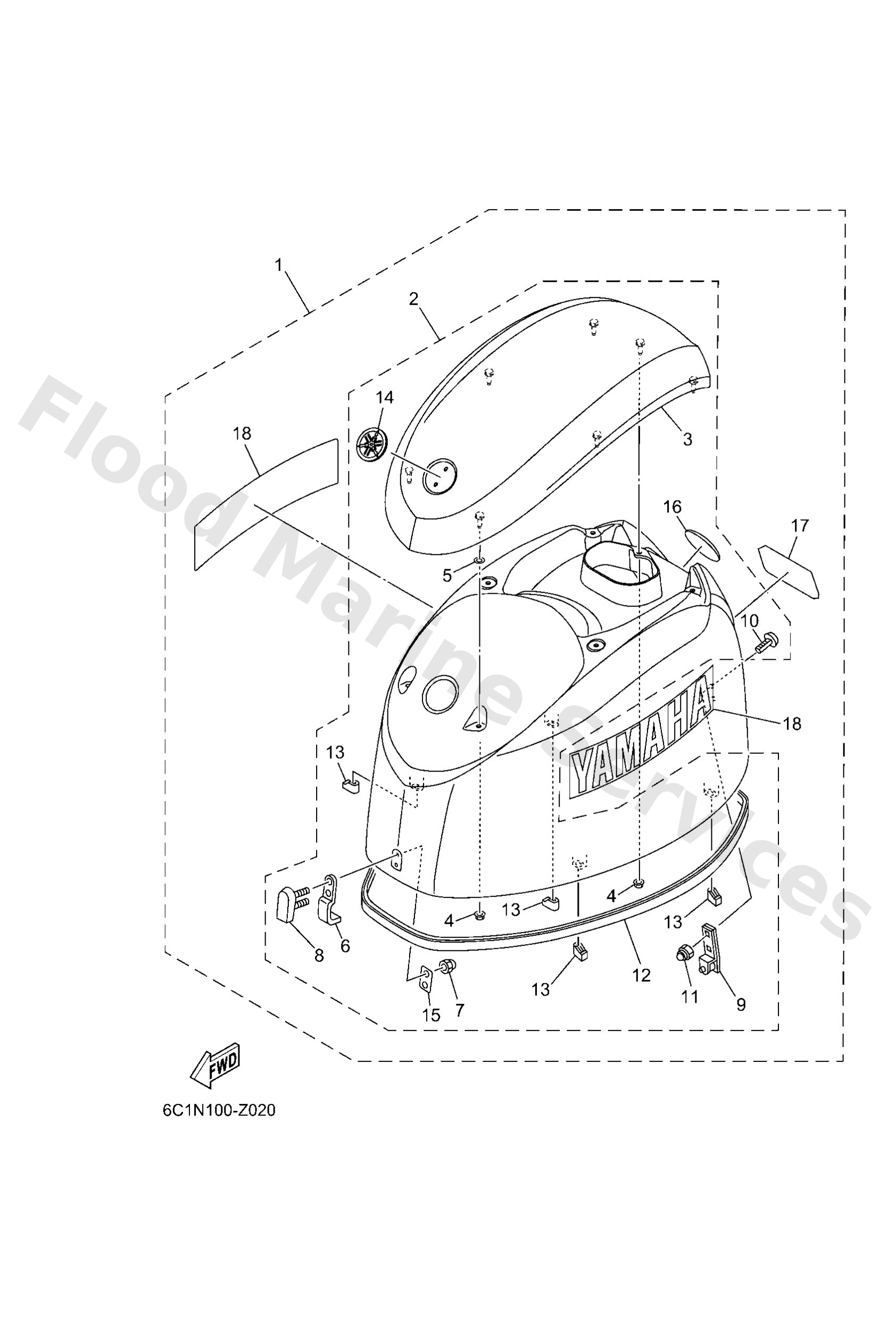

Diagram: TOP COWLING 1
Parts List
Top cowling assembly
Diagram Reference: 1
Top Cowling W/O Graphics
Diagram Reference: 2
Molding, Air Duct
Diagram Reference: 3
Nut(63v)
Diagram Reference: 4
Washer, plain
Diagram Reference: 5
Hook
Diagram Reference: 6
Nut(j44)
Diagram Reference: 7
Cover, clamp
Diagram Reference: 8
Hook
Diagram Reference: 9
Bolt
Diagram Reference: 10
Nut, self-locking(6e9)
Diagram Reference: 11
Seal
Diagram Reference: 12
Damper
Diagram Reference: 13
Tuning fork mark
Diagram Reference: 14
Holder, clamp band
Diagram Reference: 15
Tuning fork mark
Diagram Reference: 16
Graphic, rear
Diagram Reference: 17
Emblem, yamaha
Diagram Reference: 18
