INTHDP/HDL (2014)
TRANSOM PLATE

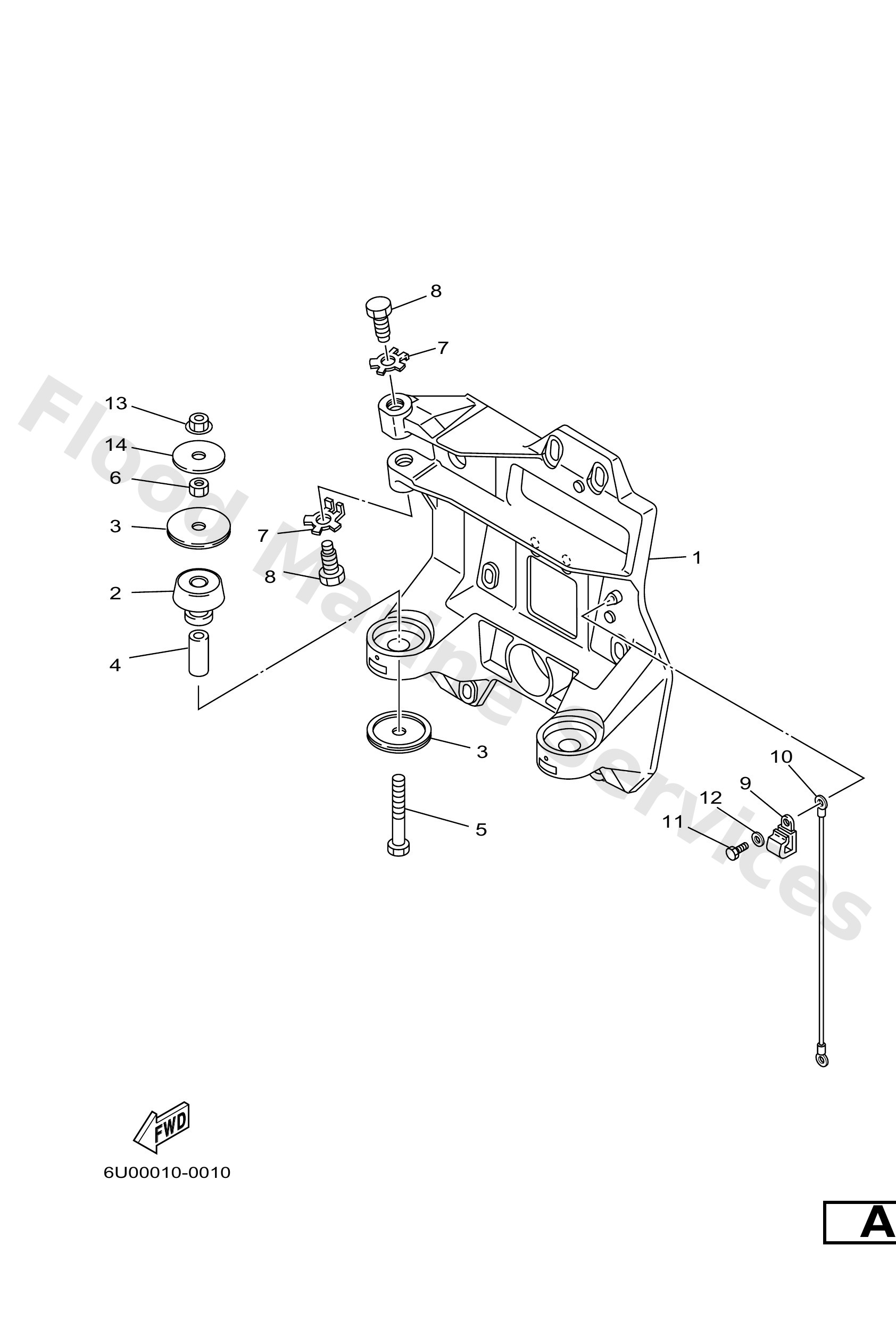

Diagram: TRANSOM PLATE
Parts List
Reference
Description
Price
?
6T445831008D
DBN1
Plate, Transom
Loading…
↗
2
6U01101910
Mount, rubber 2
Loading…
↗
4
9038712M00
Collar(6t4)
Loading…
↗
5
9010113M04
Bolt(6t4)
Loading…
↗
7
9021521292
FOR POWER
Washer, Lock
Loading…
↗
9
9046508M33
Clamp(6t4)
Loading…
↗
10
6U08214900
Wire, lead 3
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9578012300
Nut, nylon (6f2)
Loading…
↗
14
9020113M02
Washer, plate(6t4)
Loading…
↗
