Yamaha Outboard Parts - TURBO SUPERCHARGER ASSY - ME432STIP2 (2009) | Flood Marine

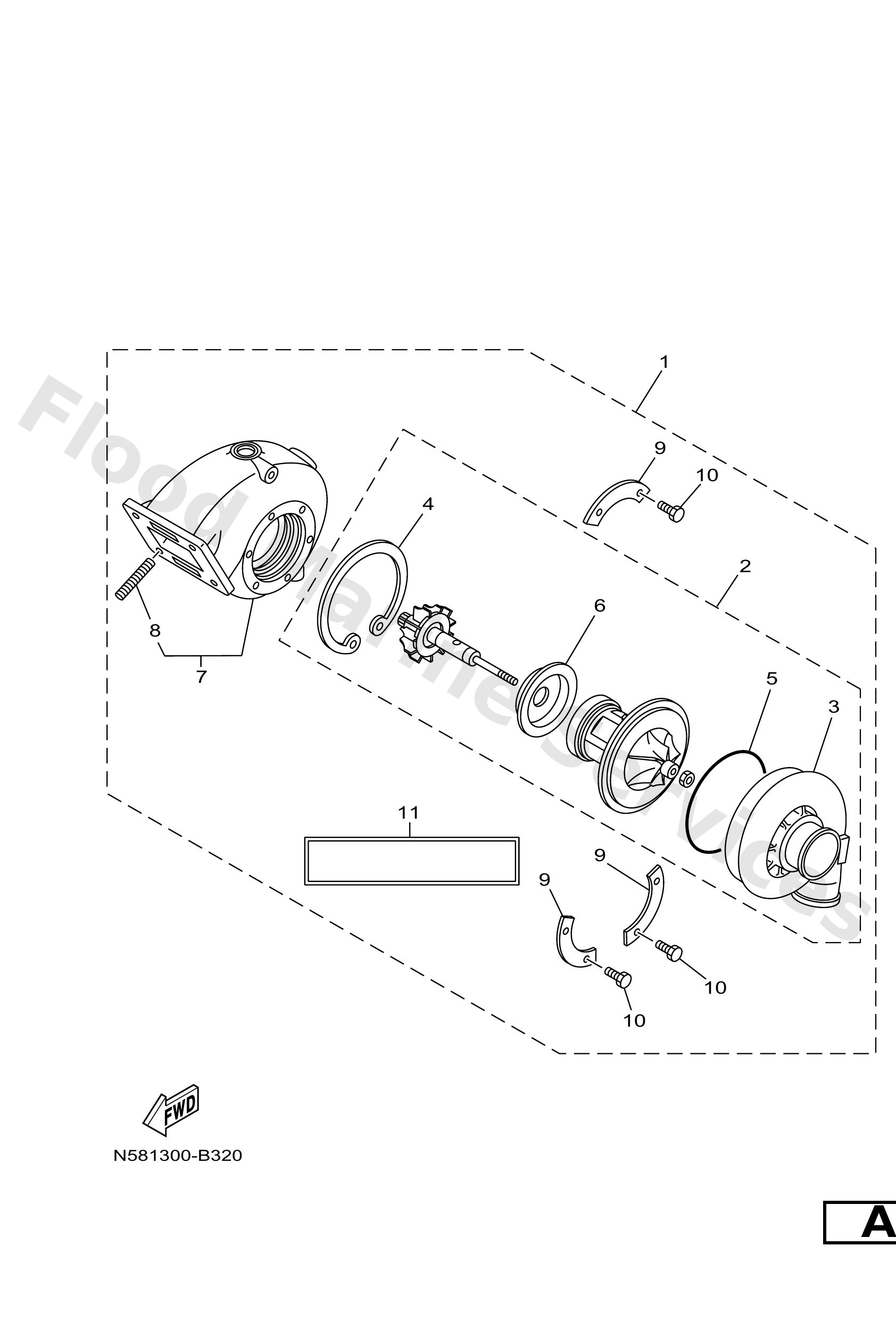

Diagram: TURBO SUPERCHARGER ASSY

Diagram

Parts List

Reference
Description
Price


1
N641469000 (1100-64720) AISAN
Turbo supercharger
Loading…

↗
1
6
-
Loading…

↗
2
N6414608T0 (1508-84720)
Turbine housing assembly
Loading…

↗
3
N5714607T0 (1492-64710-A)
Compressor Cover assembly
Loading…

↗
4
6TA14633T0 (4625-64510-C)
Ring
Loading…

↗
4
10
-
Loading…

↗
5
6TA14854T0 (4617-64610)
O-ring
Loading…

↗
7
6TA14658T0 (1508-64630-A)
Housing, turbine
Loading…

↗
8
6TA14661T0 (90116-10025-D)
Bolt, stud
Loading…

↗
10
9
-
Loading…

↗
11
N5128120T0 (1000-64571)
Service kit assembly(turbo)
Loading…

↗
