115BETO (1997)
Top Cowling

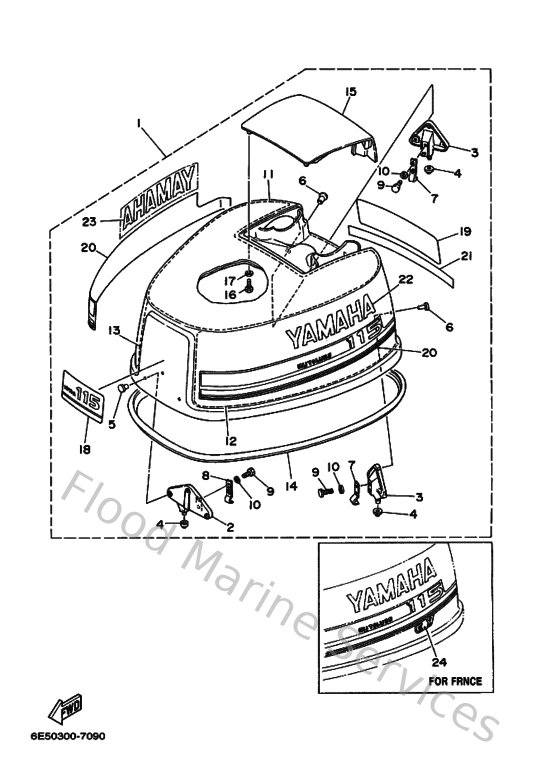

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6E542610C04D
Top cowling assembly
Loading…
↗
2
6E5426470094
Holder, clamp band
Loading…
↗
3
6E542649011S
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
9026606M0200
Rivet (697)
Loading…
↗
7
6E5426520000
Hook 2
Loading…
↗
8
688426521000
Hook 2
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
6E5426170000
Damper 1
Loading…
↗
12
6E5426190000
Damper, Form
Loading…
↗
13
6E5426270000
Damper, Form
Loading…
↗
14
6E5426150000
Seal
Loading…
↗
15
6E542613014D
Molding, Air Duct
Loading…
↗
22
6E5426813000
Mark, Cowling
Loading…
↗
