40HM (1988)
Top Cowling

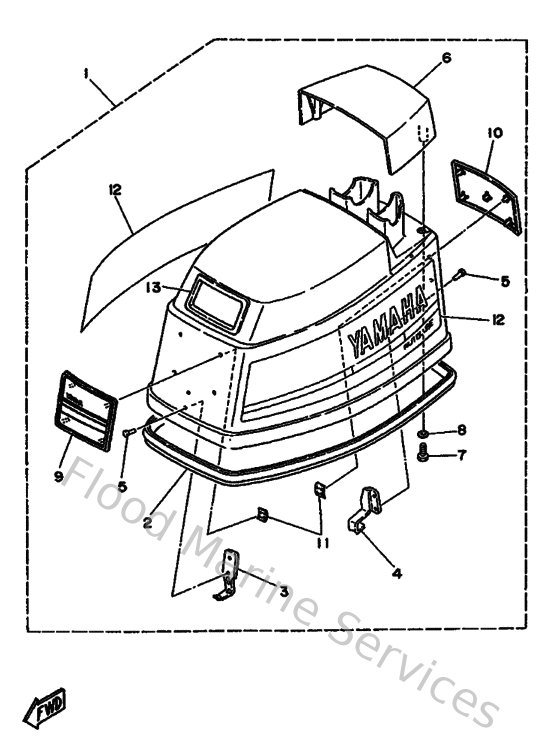

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
6H4426150000
Seal
Loading…
↗
3
6H4426510000
Hook 1
Loading…
↗
4
6H4426520000
Hook 2
Loading…
↗
5
9026604M0100
Rivet (689)
Loading…
↗
7
970950601600
Bolt, hexagon deep recess
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
10
6H4426870000
Emblem, Rear
Loading…
↗
11
9018305M0100
Nut, spring (6a0)
Loading…
↗
13
6H4157610000
Seal 1
Loading…
↗
