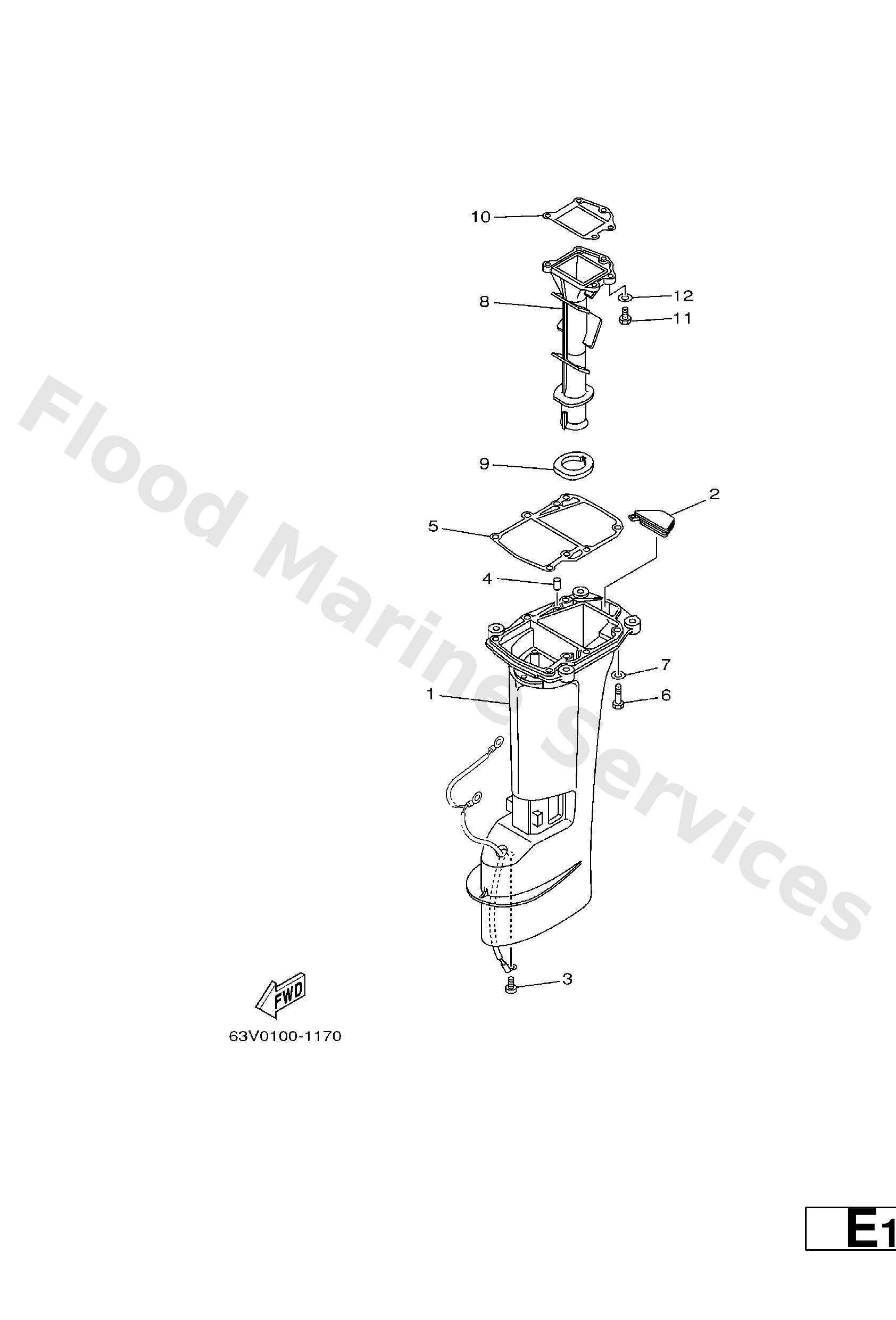

Diagram: UPPER CASING

Diagram

Parts List

63V45111044D (S)
Casing, Upper
Diagram Reference: 1
Get Part
63V45111144D (L)
Casing, Upper
Diagram Reference: 1
Get Part
63V4512600
Plate, seal damper
Diagram Reference: 2
Get Part
90157--06M06
Screw, pan head(6m7)
Diagram Reference: 3
Get Part
93606--12019
Pin, dowel (614)
Diagram Reference: 4
Get Part
63V--45113--A1
Gasket, upper casing
Diagram Reference: 5
Get Part
97095--08030
Bolt, hexagon (fj1)
Diagram Reference: 6
Get Part
92995--08600
Washer, plain (663)
Diagram Reference: 7
Get Part
65F41131005B
Manifold, ext. 1
Diagram Reference: 8
Get Part
63V--41135--00
Gasket, exhaust manifold
Diagram Reference: 9
Get Part
63V--41133--A1
Gasket, exhaust manifold 1
Diagram Reference: 10
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 11
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 12
Get Part
