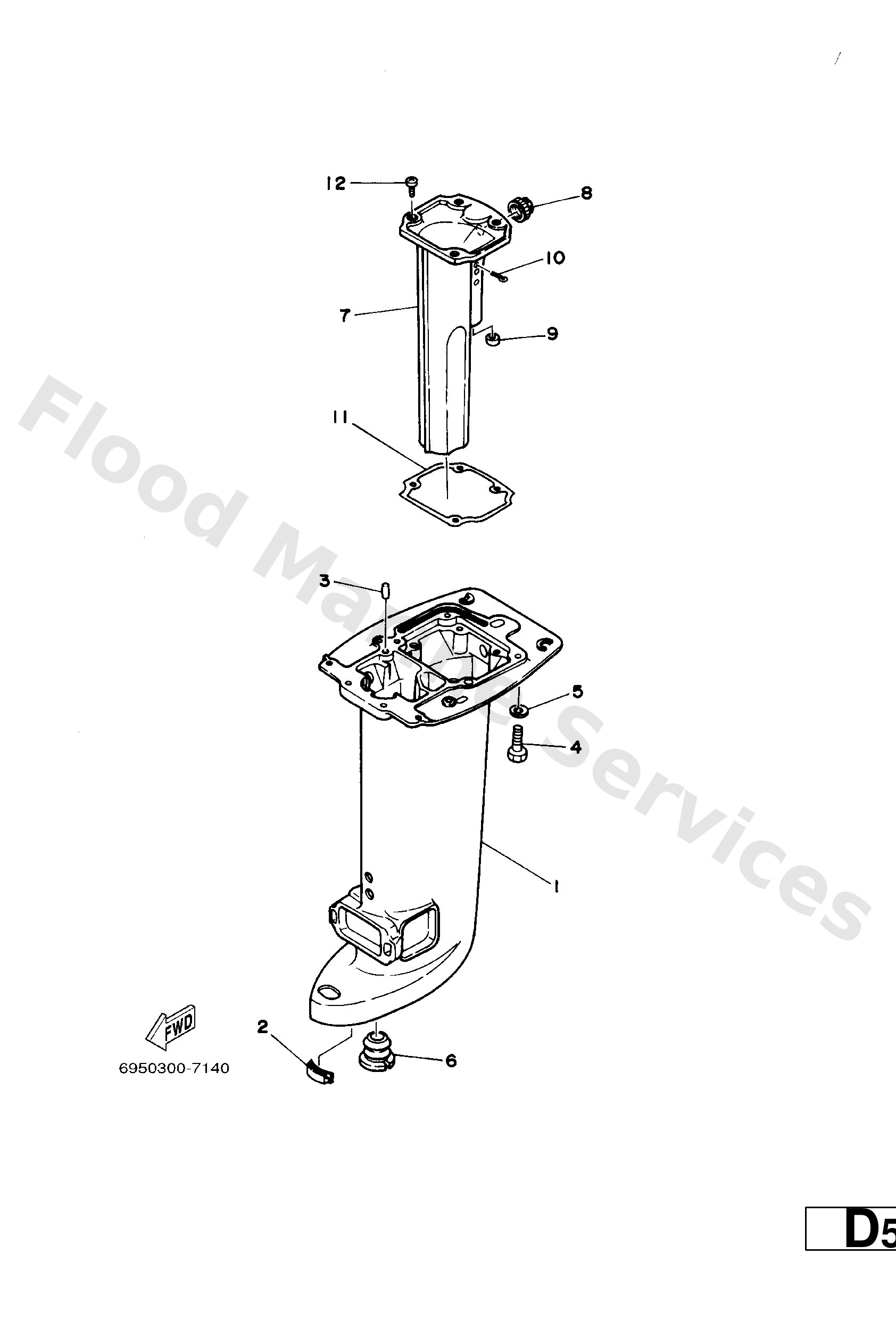

Diagram: UPPER CASING

Diagram

Parts List

689--45111--04--4D (S)
Casing, upper
Diagram Reference: 1
Get Part
689--45111--13--4D (L)
Casing, Upper
Diagram Reference: 1
Get Part
61N--45375--00 (L)
Damper, seal
Diagram Reference: 2
Get Part
93606--12019
Pin, dowel (614)
Diagram Reference: 3
Get Part
97075--08030
Bolt, hexagon (fj1)
Diagram Reference: 4
Get Part
92995--08600
Washer, plain (663)
Diagram Reference: 5
Get Part
6894512700 (S)
Seal
Diagram Reference: 6
Get Part
664411310194
Manifold, ext. 1
Diagram Reference: 7
Get Part
6644113300
Gasket, exhaust manifold 1
Diagram Reference: 8
Get Part
6644113500
Gasket, exhaust manifold
Diagram Reference: 9
Get Part
91490--30025
Pin cotter
Diagram Reference: 10
Get Part
664--41134--A0
Gasket, exhaust manifold
Diagram Reference: 11
Get Part
97880--06016
Screw pan head
Diagram Reference: 12
Get Part
