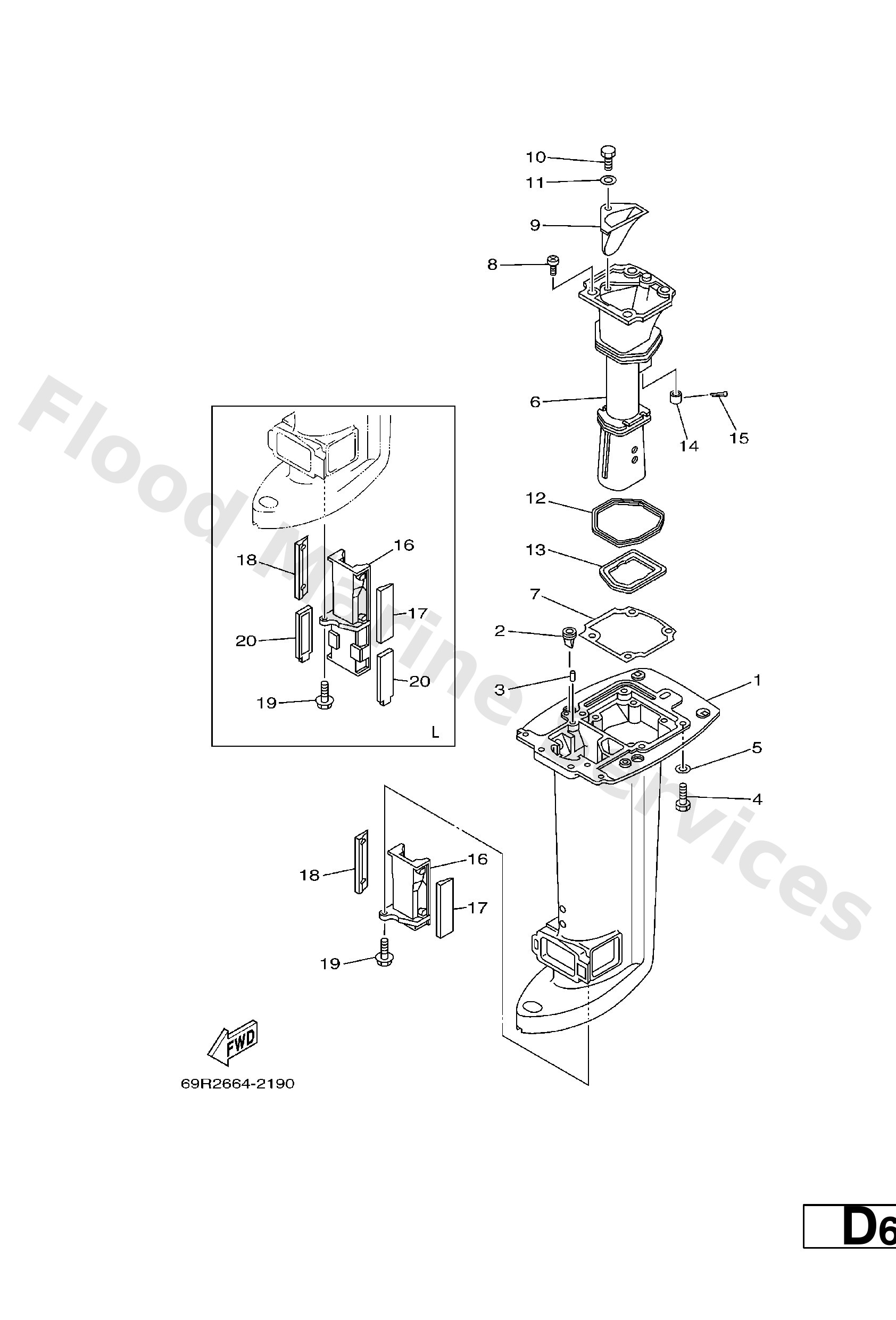

Diagram: UPPER CASING

Diagram

Parts List

69P−45111−10−4D (L)

Casing, upper

Diagram Reference: 1

69P−45111−00−4D (S)

Casing, upper

Diagram Reference: 1

65W−42717−00

Rubber, seal 2

Diagram Reference: 2

93606−12019

Pin, dowel (614)

Diagram Reference: 3

97075−08030

Bolt, hexagon (fj1)

Diagram Reference: 4

92995−08600

Washer, plain (663)

Diagram Reference: 5

69P−41131−01−5B

Manifold, ext. 1

Diagram Reference: 6

69P−41134−A0

Gasket, exhaust manifold

Diagram Reference: 7

97880−06016

Screw pan head

Diagram Reference: 8

69P−41137−00−5B

Guide, exhaust

Diagram Reference: 9

97095−08020

Bolt, hexagon

Diagram Reference: 10

69P−41138−00

Seal, ext. 1

Diagram Reference: 12

69P−41139−00

Seal, ext. 2

Diagram Reference: 13

6A8−41135−00

Gasket, exhaust manifold 3

Diagram Reference: 14

91490−30025

Pin cotter

Diagram Reference: 15

69P−47467−00−5B (S)

Plate, guide

Diagram Reference: 16

69P−47467−10−5B (L)

Plate, guide

Diagram Reference: 16

69P−45127−00

Seal

Diagram Reference: 17

69P−45128−00

Seal 2

Diagram Reference: 18

90119−06024

Bolt(7u8)

Diagram Reference: 19

69P−45159−00 (L)

Damper

Diagram Reference: 20
