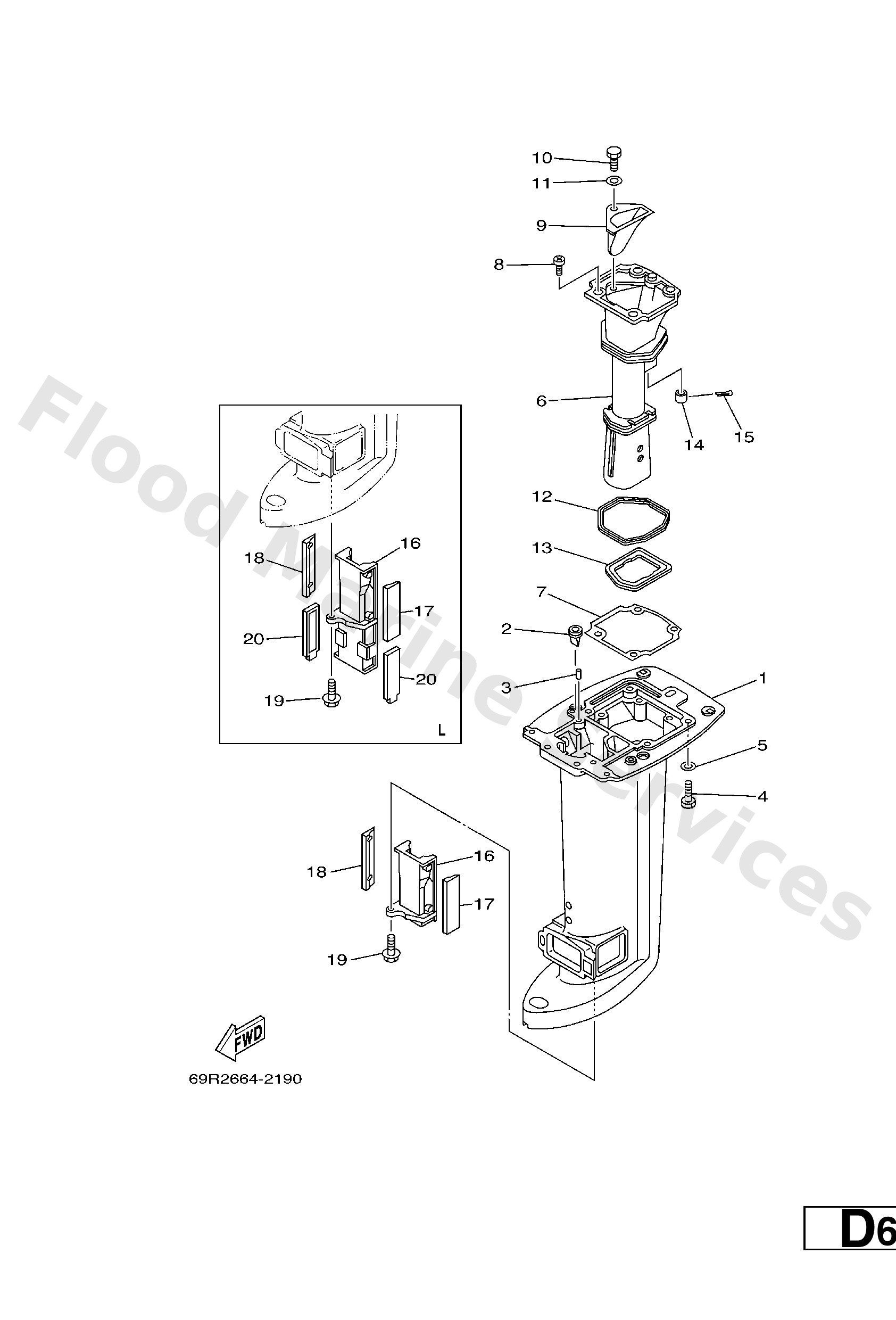

Diagram: UPPER CASING

Diagram

Parts List

69P45111104D (L)
Casing, upper
Diagram Reference: 1
Get Part
69P45111004D (S)
Casing, upper
Diagram Reference: 1
Get Part
65W4271700
Rubber, seal 2
Diagram Reference: 2
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 3
Get Part
9707508030
Bolt, hexagon (fj1)
Diagram Reference: 4
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 5
Get Part
69P41131015B
Manifold, ext. 1
Diagram Reference: 6
Get Part
69P41134A0
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
9788006016
Screw pan head
Diagram Reference: 8
Get Part
69P41137005B
Guide, exhaust
Diagram Reference: 9
Get Part
9709508020
Bolt, hexagon
Diagram Reference: 10
Get Part
69P4113800
Seal, ext. 1
Diagram Reference: 12
Get Part
69P4113900
Seal, ext. 2
Diagram Reference: 13
Get Part
6A84113500
Gasket, exhaust manifold 3
Diagram Reference: 14
Get Part
9149030025
Pin cotter
Diagram Reference: 15
Get Part
69P47467005B (S)
Plate, guide
Diagram Reference: 16
Get Part
69P47467105B (L)
Plate, guide
Diagram Reference: 16
Get Part
69P4512700
Seal
Diagram Reference: 17
Get Part
69P4512800
Seal 2
Diagram Reference: 18
Get Part
9011906024
Bolt(7u8)
Diagram Reference: 19
Get Part
69P4515900 (L)
Damper
Diagram Reference: 20
