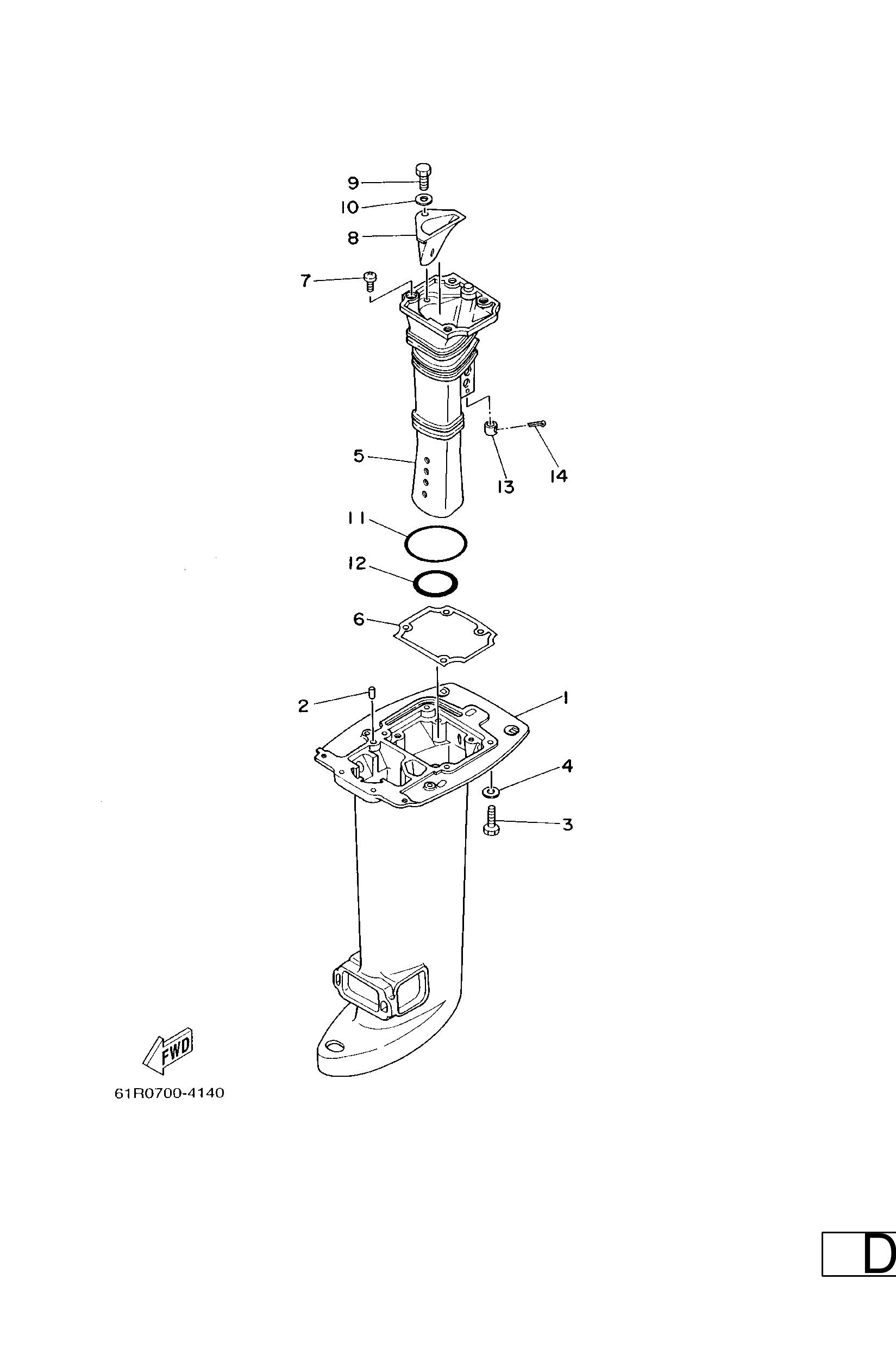

Diagram: UPPER CASING

Diagram

Parts List

68945111044D (S)
Casing, upper
Diagram Reference: 1
Get Part
68945111134D (L)
Casing, Upper
Diagram Reference: 1
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 2
Get Part
9707508030
Bolt, hexagon (fj1)
Diagram Reference: 3
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 4
Get Part
68941131005B
Manifold, Ext. 1
Diagram Reference: 5
Get Part
66441134A0
Gasket, exhaust manifold
Diagram Reference: 6
Get Part
9788006016
Screw pan head
Diagram Reference: 7
Get Part
689411370094
Guide, Exhaust
Diagram Reference: 8
Get Part
9709508020
Bolt, hexagon
Diagram Reference: 9
Get Part
6894114100
Seal, exhaust 1
Diagram Reference: 11
Get Part
6894114200
Seal, exhust 2
Diagram Reference: 12
Get Part
6A84113500 (S)
Gasket, exhaust manifold 3
Diagram Reference: 13
Get Part
6894113500 (L)
Gasket, Exhaust Manifold
Diagram Reference: 13
Get Part
9149030025
Pin cotter
Diagram Reference: 14
